Carbon Steel Dry Mix Mortar Production Line Stuffing Seal For Powder Material
Carbon Steel Dry Mix Mortar Production Line Stuffing Seal For Powder Material
Carbon Steel Dry Mix Mortar Production Line Stuffing Seal For Powder Material
Carbon Steel Dry Mix Mortar Production Line Stuffing Seal For Powder Material
Specifications
Brand Name :
MG
Model Number :
MGDM-1.1
Certification :
CE, BV, ISO9001:2008 CE ISO9001:2008
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, Money Gram
Supply Ability :
100 Sets per month
Delivery Time :
5-7 working days
Packaging Details :
Wooden box packaging, Plastic foam packaging
Price :
negotiable
Application :
Dry mortar powder
Warranty period :
12 months
Production Capacity :
1-3t/h
Dimension(L*W*H) :
3300X1050X2100mm
Driven Type :
Electric
Power(KW) :
7.5kw
Voltage :
220V/380V/410V/440V or customized
Manpower :
3-5 people
Color :
Yellow or customized
Technical support :
Lifelong service
Description

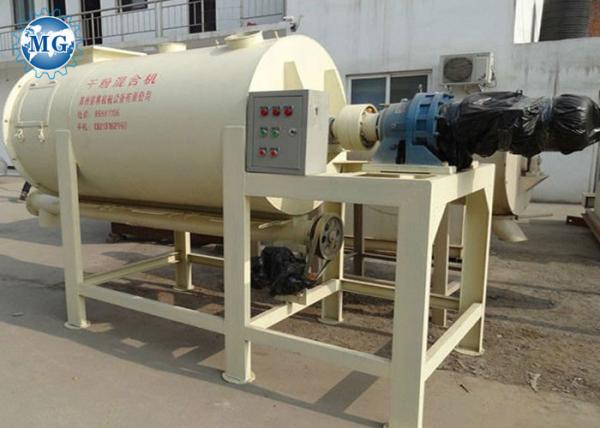

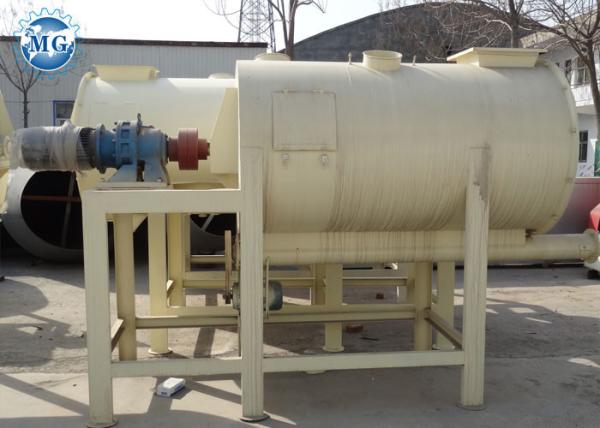

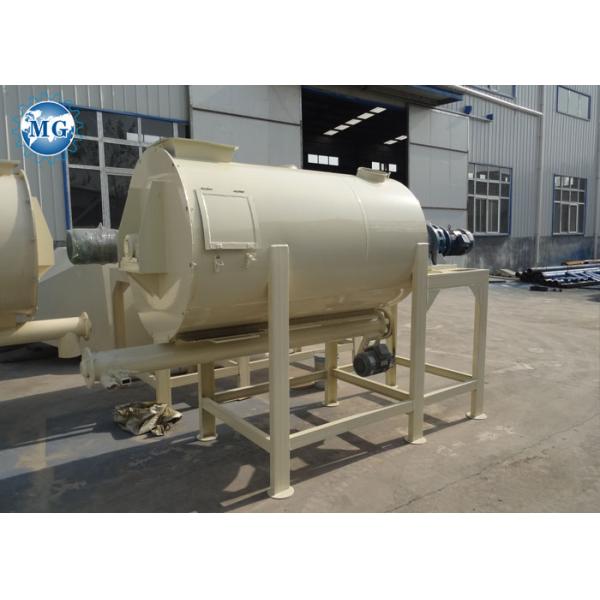

Carbon Steel Wall Putty Tile Adhieve Mixing Machine Dry Mortar Mixer Machine

What is dry mortar:

Dry mortar is also called pre-mixed mortar, which made in the factory by precise batching and uniform mixing. It can be used directly just by adding water in construction site. It has different properties though adding different additives. The demand for dry mortar has increased rapidly due to its outstanding merit compare to the mortar production in job-site.

Raw material of dry mortar:

1. Cementing material: cement, lime, plaster.

2. Aggregate: yellow sand, quartz sand, limestone, dolomite, expanded perlite etc.

3. Mineral admixture: industrial byproduct, industrial slag, fly ash, pozzolana, fine silica powder etc.

4. Water-retention and thickening material.

5. Chemical additives.

Standard configuration:

1. Drive Unit: Cycloid reducer or gear reducer

2. Motor brand: China brand (customized)

3. Gear box brand: Chinese Famous brand

4. Bearings: Chinese Famous brand

5. Discharging valve: pneumatic flap valve (no dead angle when mixing).

6. Main Shaft Seal
7. Air-purged seal and stuffing seal for powder material

8. Mechanical seal for liquid material

9. Voltage and Hz: 380V 3Phases 50hz or in accordance with it in the using place

10. Top Cover:Could be fully open so as to clean, with safety grid and limit switch to make sure safety operation for workers

11. Normal duty type: start the mixer first and then load the material

Technical parameter of Dry Mortar Mixer Machine

Item mixing motor (kw) hoist motor(kw) production capacity(kg/batch) capacity (t/h) dimension(mm) barrel Dia(mm)
MG500 5.5 3 500 1-1.5 3000*800*2000 Φ800
MG1000 7.5 3 1000 2-3 3300*1050*2100 Φ1050
MG1500 11 3 1500 3-4 3300*1050*2100 Φ1050
MG2000 11 4 2000 4-5 3680*1200*2000 Φ1200

Carbon Steel Dry Mix Mortar Production Line Stuffing Seal For Powder Material
