380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line
Specifications
Brand Name :
MG
Model Number :
MGDM-3.0
Certification :
CE,BV, ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
30 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Stand seaworthy packaging, Wooden packaging and bubble wrap packaging
Product name :
Tile adhesive production line
Application :
Tile adhesive mixing and packagiing
Man power :
3-4 Person
Total power :
50-80KW
Warranty :
12 months
Machine occupy area :
80-100m2
After-sales services :
Engineer available to service machinery overseas
Condition :
New
Advantage :
Turn key project provided
Voltage :
380V/50HZ or Customized
Description
Product Despction
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line

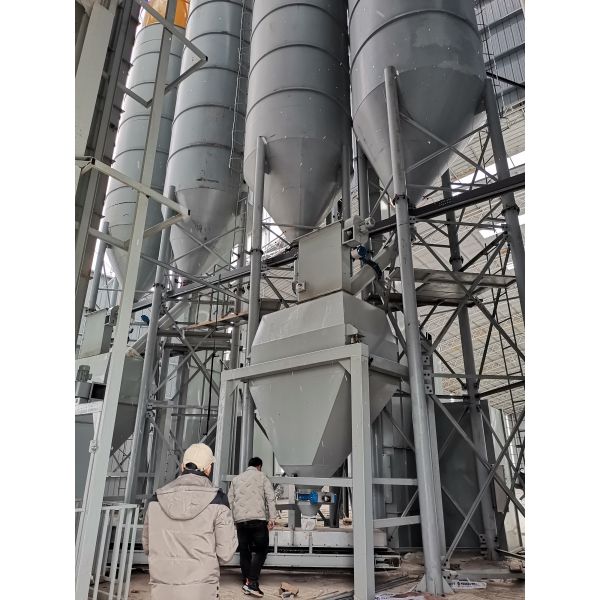

This production line adopted latest Germany Technology,the silo is in tower type,and latest management system applied in automatic control,improved the man-friendly operation and automatic in large extent.The capacity of this automatic dry mortar production line at 3-10 thousand tons one year.
The advantages of our Automatic dry mortar
1, A high degree of intelligence. It is controlled by the control system and realizes automatic automation of automatic batching,automatic weighing, automatic feeding, automatic mixing and automatic packaging.
2, The use of tower layout structure, shorten the transmission distance and increase production efficiency.
3. The use of a biaxial mixer( Twin shaft mixer) has high mixing uniformity, and materials with large differences in physical properties such as specific gravity, particle size and shape do not easily segregate when mixed in the mixer. mixing equipment.
Application
Applications of dry mortar production line
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, anchorage mortar etc.
Decoration mortar: Decorative plaster, inner and outer wall putty, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, repair mortar, mildew-proof mortar, shielding mortar etc.
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line
Product Configuration
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line
Model
Capacity
Machine height
Total power
Worker required
Workshop required
Bag belt conveyor
2000L Mixer
10-12T/H
8-10m
80-90KW
2-3 person
500-600m2
B500X5000mm
3000L Mixer
15-20T/H
10-14m
90-100KW
3-4 person
600-800m2
B500X5000mm
4000L Mixer
20-30T/H
10-14m
100-120KW
3-4 person
600-800m2
B500X5000mm
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line

1,Raw Material Detachable Storage Silo.

Customized volume 150T, 100T, 60T, Easy transportation, waterproof manufacturing and reasonable design.
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line

2,Bucket elevator.

High efficient, Good sealing, Easy assemble, Environment protection, Easy maintenance.
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line

3, Automatic weighing system.

High efficient self-measurement, Highly sensitive, High accurate digital display.
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line

4,Twin shaft agravic paddle mixer.

High Efficiency, equip fly cut for fiber breaking, Mixing time 3-5 minutes per batch.

5,Finished product hopper.

Reasonable design, Equip pneumatic vibrating system.

6,Automatic packing machine.

High accuracy, high speed, Equip bag auto pushing system.

7,Pulse dust collector

High efficiency, strength dust collecting, pulse controller control.

8,Screw Type Air Compressor.

High Quality, Long life Time, Energy Saving.

9,Control cabinet.

Famous brand PLC, Intelligent and computer control.

Certificates
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line
Our Company
Zhengzhou MG Industrial Co,. Ltd, the leader in pre-mixed dry mortar mixing plant, providing you with new and refurbished building solutions over 70 countries around the world. Zhengzhou MG was founded in 2000, located in the beautiful city of Zhengzhou, which is an integrated high-tech enterprise of R&D, production, sale and construction in dry mortar mixing equipment. We are an executive member of Chinese private Technology Promotion Committee and building materials Experts Association. As an National top
rank building Mechanical Enterprise, we're certified by ISO9001 quality management system, and we honored to be the executive director of Henan Building Energy Conservation Committee.
Our Service

Pre-sale service

1) Once got your inquiry, we will reply to you in 24 hours;
2) High quantity and quantity assured;
3)Favorable price as we are manufacturer;
4) Provide professional technical and project;
solutions online or by telephone ;
5) Well-trained and experienced staff to answer all your inquiries in fluent English and Russia;
6)OEM & ODM is welcomed. OEM brand is available;
7)Assist clients to prepare for the first construction scheme and supply foundation drawing.
380V 50HZ Tile Adhesive Machine / Mixing Packagiing Dry Mortar Production Line

After-sale service

1) Assist clients to prepare for the first construction scheme and supply foundation drawing.
2)Oversea installation and provide technical exchange, train client to operate the machine.
3) Supply spared and accessory parts at favorable price for long-term.
4)Spare part are original, authentic, good quality.
5)They can be available from stock, and sent to clients, immediately by sea, guarantee clients to receive it in shortest time.
6) Providing following up after-sale service.
2) Silo: The automatic dry mortar mixing equipment is equipped with a silo.
3) Operators: The semi-automatic dry mortar mixing equipment requires 2-3 people to feed materials.
