Stainless Steel Carbon Steel Dry Mortar Mixer Machine Dry Food Feed Production Line
Stainless Steel Carbon Steel Dry Mortar Mixer Machine Dry Food Feed Production Line
Stainless Steel Carbon Steel Dry Mortar Mixer Machine Dry Food Feed Production Line
Stainless Steel Carbon Steel Dry Mortar Mixer Machine Dry Food Feed Production Line
Specifications
Brand Name :
MG
Model Number :
MGDM-1.1
Certification :
CE ISO BV SGS
Place of Origin :
Henan, China (Mainland)
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, Money Gram
Supply Ability :
100 Sets per month
Delivery Time :
5-7 working days
Packaging Details :
Wooden box packaging, Plastic foam packaging
Application :
Dry mortar powder
Warranty period :
12 months
Production Capacity :
1-3t/h
Dimension(L*W*H) :
3300X1050X2100mm
Power(KW) :
7.5kw
Voltage :
220V/380V/410V/440V or customized
Manpower :
3-5 people
Material :
Stainless Steel,Carbon steel
Packaging :
Valve port packaging
Description

Stainless Steel Carbon Steel Dry Mortar Dry Food Feed Mixer Production Line

Production description:

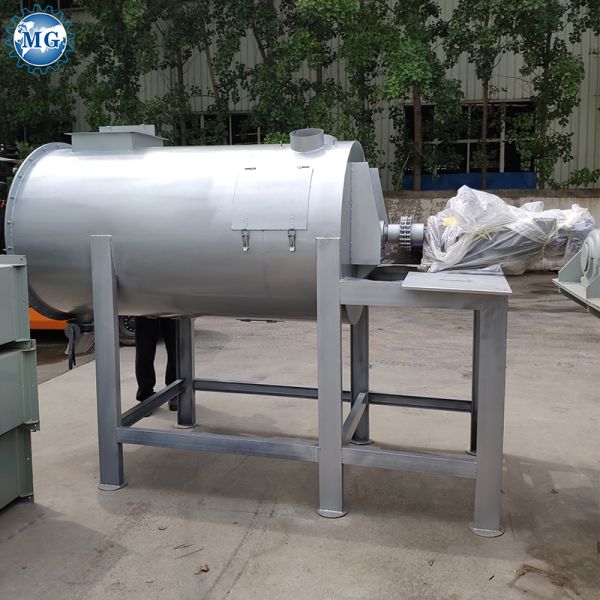

Horizontal ribbon mixer is the introduction of foreign advanced technology, the factory professional and technical personnel to digest the innovative design results, is a new type of efficient mixing equipment.

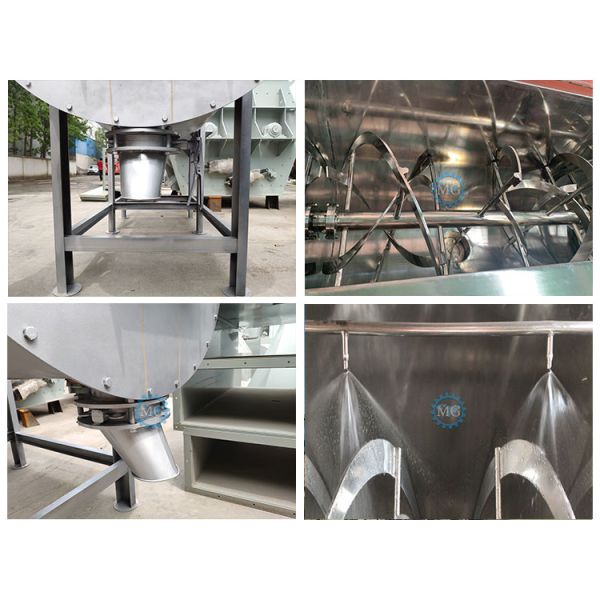

The internal barrel surface is smoothed by polishing and equipped with center shaft and double S-shaped paddle. Mixing materials process is fast and homogeneous, which can be finished within 5-10 minutes for each batch. Mixture of special materials need to be confirmed by users.

Using Range:


Widely used in chemical industry, medicine, compound fertilizer, dyes, pigments, rubber, building materials, food, milk powder,health products, feed, additives,aquaculture, biological engineering, fine chemical industry, ceramics, refractory materials,rare earth, plastic glass, new materials, nuclear materials and other industries.

Stainless Steel Carbon Steel Dry Mortar Mixer Machine Dry Food Feed Production Line

Standard configuration:

1. Drive Unit: Cycloid reducer or gear reducer

2. Motor brand: China brand (customized)

3. Gear box brand: Chinese Famous brand

4. Bearings: Chinese Famous brand

5. Discharging valve: pneumatic flap valve (no dead angle when mixing).

6. Main Shaft Seal
7. Air-purged seal and stuffing seal for powder material

8. Mechanical seal for liquid material

9. Voltage and Hz: 380V 3Phases 50hz or in accordance with it in the using place

10. Top Cover:Could be fully open so as to clean, with safety grid and limit switch to make sure safety operation for workers

11. Normal duty type: start the mixer first and then load the material

Technical parameter of Dry Mortar Mixer Machine

Item mixing motor (kw) hoist motor(kw) production capacity(kg/batch) capacity (t/h) dimension(mm) barrel Dia(mm)
MG500 5.5 3 500 1-1.5 3000*800*2000 Φ800
MG1000 7.5 3 1000 2-3 3300*1050*2100 Φ1050
MG1500 11 3 1500 3-4 3300*1050*2100 Φ1050
MG2000 11 4 2000 4-5 3680*1200*2000 Φ1200

Stainless Steel Carbon Steel Dry Mortar Mixer Machine Dry Food Feed Production Line

Stainless Steel Carbon Steel Dry Mortar Mixer Machine Dry Food Feed Production Line

Stainless Steel Carbon Steel Dry Mortar Mixer Machine Dry Food Feed Production Line

Stainless Steel Carbon Steel Dry Mortar Mixer Machine Dry Food Feed Production Line
