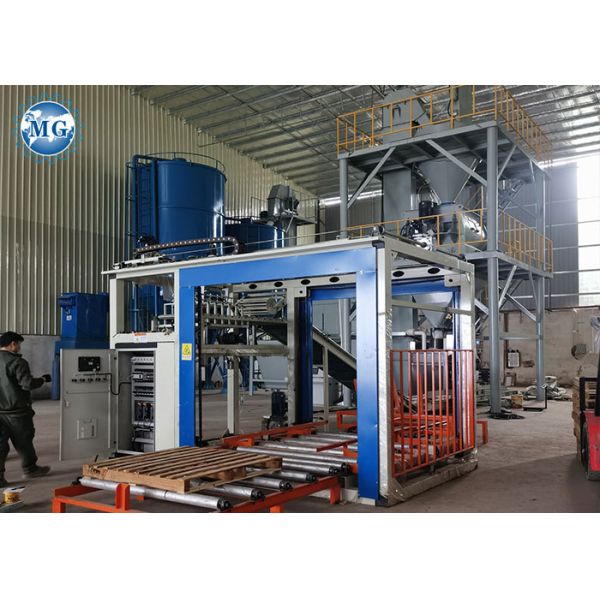

Tower Type PLC Control Full Automatic Dry Mix Plant Tile Adhesive Machine
Tower Type PLC Control Full Automatic Dry Mix Plant Tile Adhesive Machine
Tower Type PLC Control Full Automatic Dry Mix Plant Tile Adhesive Machine
Tower Type PLC Control Full Automatic Dry Mix Plant Tile Adhesive Machine
Specifications
Brand Name :
MG
Model Number :
MGDM-3.7
Certification :
CE,BV, ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, MoneyGram, Western Union
Supply Ability :
30 sets per month
Delivery Time :
15-20 working days
Packaging Details :
Stand seaworthy packaging, Wooden packaging and bubble wrap packaging
Product name :
Tile adhesive Machine
Structure :
Tower type
Condition :
New
Man power :
3-4 Person
Warranty :
12 months
Control System :
PLC Control
After-sales services :
Engineer available to service machinery overseas
Machine height :
8-12m
Mixer type :
Double shaft paddle mixer
Advantage :
Turn key project
Description

Tower Type PLC Control Full Automatic Tile Adhesive Dry Mix Machine Plant

1. Introduction of MG Tile Adhesive Machine:

MG tile adhesive machine working principle: all raw materials from a hopper feeder, first put into cement and fiber additives, then stir 3 minutes, then add quartz sand and mix 5 minutes, the produced dry mortar can be lifted to storage bin and packaged.

Complete production line (feeding, mixing and packaging) for dry mortar, which will greatly improve production efficiency, save labor, reduce production costs, is a low investment, high efficiency, quick operation, high return benefit dry mortar production equipment. It includes :

Two-way fork type mixer, make the material boiling in the body, roller type fiber dispersion shaft, can achieve a uniform mixture of materials in short time.

Tower Type PLC Control Full Automatic Dry Mix Plant Tile Adhesive Machine

2. Technical Parameters of MG Tile Adhesive Machine:

Model Simple dry mortar plant Improved simple dry mortar plant Semi-auto dry mortar plant Full-auto dry mortar plant
Out put 1-3t/h 4-5t/h 5-8t/h 10-30t/h
Machine area 20m² 20m² 50-60m² 60-100m²
Total power 5.5-7.5kw 6-11kw 24-28kw 60-120kw

Mixer

volume

 3300*1050*2100mm 2m³ 2m³ 2m³, 3m³, 4m³
Machine height 3-4m 3-4m 6-8m 8-13m
Man power 2-3person 2-3person 3-4person 3-4person
Equipment parts

screw conveyor,

ribbon mixer,

transit hopper,

valve packer,

air compressor, control panel

screw conveyor, twin shaft mixer, storage tank, valve packer, air compressor

control cabinet

bucket elevator,

twin shaft mixer,

holding tank, valve packer, control cabinet, air compressor

 silos, screw conveyor, auto-weighing system, bucket elevator, premix tank, twin shaft mixer, holding tank, valve packer, PLC control cabinet, air compressor
Batching and packaging Manual batching & Automatic packaging Automatic


3. Characteristic of MG Tile Adhesive Machine:

1.It features magnificent appearance, good quality, high productivity and accurate mortar proportioning.

2. The dry mortar production line uses a centralized control system, making the equipment easy to operate.

3. According to the layout type, it can be classified into tower type, self tower type and series type. Its up to the customers workshop area. The needed area is 500~5000m2.

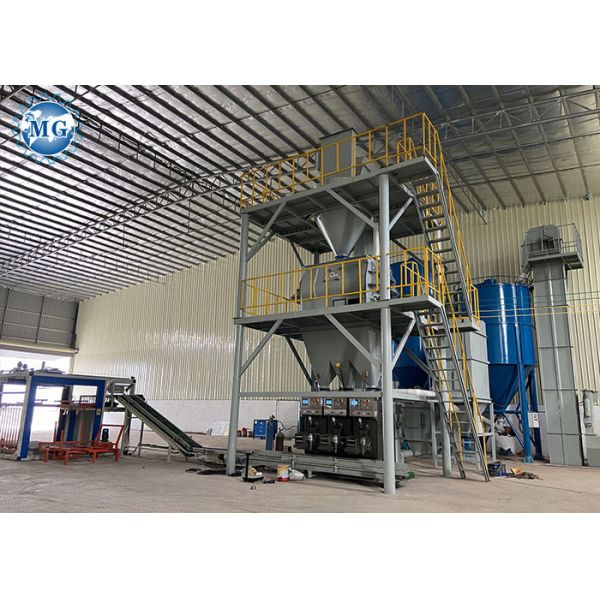

4. MG Guangzhou Working site of MG Tile Adhesive Machine:

Tower Type PLC Control Full Automatic Dry Mix Plant Tile Adhesive Machine

We are professional manufacturer of dry mortar plant and sand dryer plant over 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.

Welcome your inquiry and visiting!
