Customized Dimensions Cement Storage Silo Spare Parts Stainless Steel Material
Customized Dimensions Cement Storage Silo Spare Parts Stainless Steel Material
Customized Dimensions Cement Storage Silo Spare Parts Stainless Steel Material
Customized Dimensions Cement Storage Silo Spare Parts Stainless Steel Material
Specifications
Brand Name :
SINCOLA
Model Number :
ss
Certification :
CE,ISO,BV
Place of Origin :
Zhengzhou,China
MOQ :
1set
Price :
30-500usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000sets per week
Delivery Time :
5 working days
Packaging Details :
Standard exporting packing way
Application :
Cement silo,powder silo
Material :
Stainless steel
Guarantee :
3 months
Dimensions :
as customer required
Description

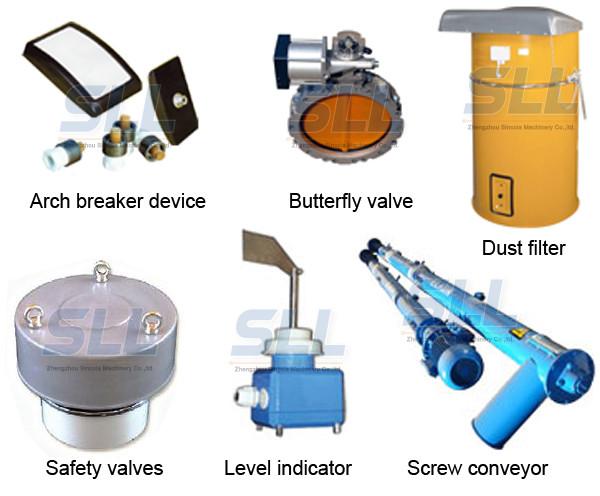

spare parts for cement silo,relief valve,level indicator,dust filter,discharging valve,flow aid system
broken arch --DL vibrating bin aerator Air consumption per cycle: 0.12Nm3/h(0.07cfm)
Working pressure:0.2bar(3 PSI)
Diameter: 160*95*35mm
Application: Cement, lime and powder material etc.
Level indicator Contact capacity: 250 vac / 10 a SPDT (single pole double throw)
Power: 4 w
The blade speed: 1 RPM (revolutions per minute)
Moment: 1.0 kg * cm
Specific gravity: acuity 0.5 g/cm3
Working temperature: - 10 ℃ -- 80 ℃ (up to 400 ℃)
Insulation resistance: 100 m Ω or higher
Dielectric strength: 1500 v * 1 min
Protection grade: IP65
Leaf blade material: SUS304 SUS316
Voltage: 220V/24DC 12V/24V
DN250 Double flange manual butterfly-valve

Inner diameter: Φ250mm
Connect diameter: Φ300mm

Outside diameter:Φ350*115mm
Max. pressure: 2.5bar(36psi)
Working temperature: -10-80℃
Valve board Material: aluminum alloy
Valve base material: aluminum alloy Not automatic but hand-actuated
relief valve Positive pressure range:280_1000H2O
Negative pressure range: -20_-120H2O
Max. Air capacity: 9m3/h
Max. Negative setting pressure: -0.002bar
Max. positive pressure: 0.05bar
Material: Carbon Steel
Installation Diameter: Φ273mm
Outsize: 370*400mm
Room No.: 1
Thickness of steel: 2mm
Connection type: Clamp connection,with sealing rings

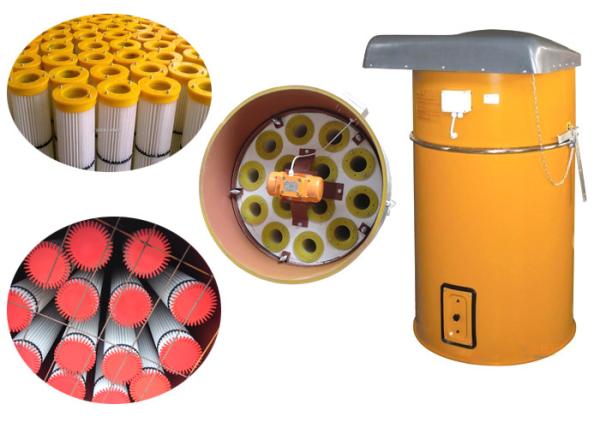

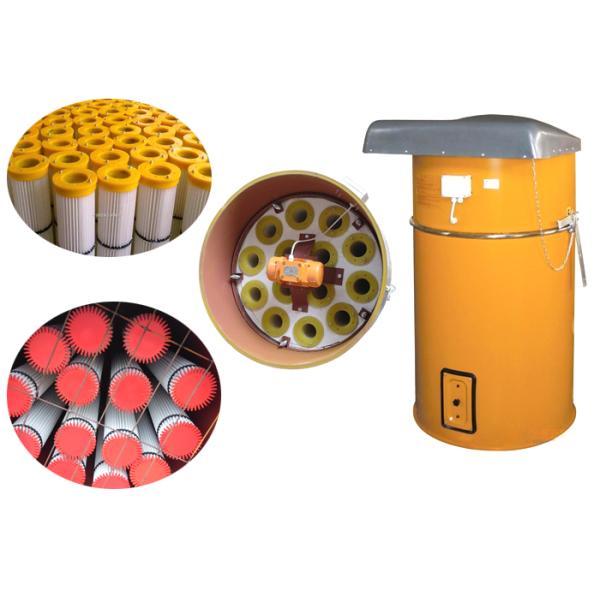

Cement silo filter Diamension: Φ800*1630mm
Qty of cartridge: 14
Cartridge size: Φ140*900mm
Filtering area: 24m2
The exhaust air rate:1500m3/h
Filtration efficiency:>99.9%
Cleaning method:intermittent vibrating cleaning
Power:500w
Voltage: 380V/60Hz
The structure of the form:cylindrical
Connection: clamp connection(with seal)
Sheel material: carbon steel
Weight:100kg
