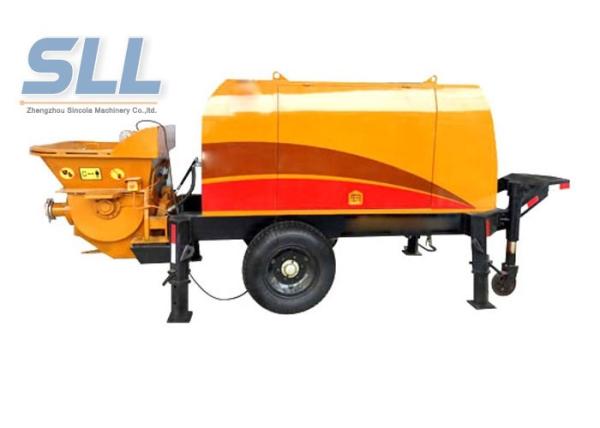

Mobile 30 m3 / h horizontal 300m mortar pump for high level mortar conveying

Introduction:

BS30-09-37 applied in high-rise buildings of mortar conveying, and used for tunnel and underground
engineering, structures of tunnel lining surface spraying, reinforcing reinforcement construction. Can realize long-distance and high level pumping mortar, fine stone concrete and foam concrete.

Parameter:

Features:

1. Distributing valve adopts advanced S tube valve, sealing is good. Glasses plate cutting and floating ring using hard alloy, high strength abrasion resistance, long service life, easy to change, the cutting ring mechanism adopts automatic compensation clearance.

2. Control method with electric - hydraulic joint control, has a perfect electrical and hydraulic overload
protection and instrument display system; With functions of anti-plump operation; Working condition of
pumping speed can be adjusted, which can meet various needs.

3. Centralized lubrication system is controlled by program automatic start-stop and operation time, effectively extend the service life of rotating parts.

4. Electrical component protection grade reaches IP65, PLC control, reliable operation, simple control circuit, electrical box is equipped with a wireless remote control.

5. Main sealers adopt PARKER quality seal.

Application:

Mortar cement concrete pump machine is used for the building construction works, such as city construction, bridge construction, electric power and other energy source facilities and so on.

1, In the construction engineering industry, the machine is used for horizontal and vertical transferring and spraying mortar or cement.

2. In the chemical and paper industry, delivering the raw pulp material and waste materials.

3. In coal-fired power plants , the machine is used to deliver the fine coal mortar.

4. In the mining tunnel construction industry, the machine is used to grout and protect slope.

5. In the highway pavement maintenance, it used for road surface collapse pressure mud filling.

6. In Prestressing structure construction, the machine is used for cement road surface collapse pressure mud filling.

7. In water conservancy engineering, it is used for reinforcing the dam.

8. In metallurgy, steel and other industry, the machine is used to maintain the blast furnace and slurry infusion of the other equipments.

The standard configuration:

Variable diameter tube:125A-80A×1M
Conveying pipe:80A×1M×2 80A×2M×2 80A×3M×32
Bend pipe:R500 80A×900×3 R275 80A×450×2
High pressure rubber hose:80A×6M×2
The hydraulic oil anti-wear:46#×130kg
The pipe clamp aprons:80A×46 125A×2
