Compact structure best price render spray machine with CE certificate adhesive plaster machine

Introductions

Wall mortar spraying machine is suitable for pumping and spraying the ready-mixed mortar , such as Cement mortars, Lime plasters, Gypsum plasters, Masonry mortars, Insulating plasters, Self-leveling floor screeds, fireproof paint,etc. The out cover can take out easily for maintance, it installs vibrating grid for seving larger grain size. Air compressor is attached. Screw worm pump with stainless steel wearable connection.

Application

1.The Plastering Machine is a new desinged multi-functional plastering equipment.

2.The Plastering Machine can be used for pumping and spraying ready-mixed mortar material, such as cement mortar, lime plaster, gypsum plaster, masonry mortar.

3.The Plastering Machine can be used for plastering fluid materials, such as thermal insulation material of walls, refractory material, fire-proof material, water-proof material, acoustic material, water soluble etc.

4.In China, auto plastering machine is used for plastering mortar to wall, it's suitable for mixed mortar in bulk and ready-mixed mortar.

5.In philippine, auto plastering machine for wall is used for plastering fireproof material to steelhouse factory.

6.In South Africa, auto plastering machine for wall is used for plastering thermal insulation to board panel house.

Parameter:

Features:

1.small plastering machine introduced Italian technology.

2. It’s applicable to delivery, bonding and plastering for different uses and physicochemical performance of various interior and exterior plastering mortar, masonry mortar, flooring mortar, decorative mortar, thermal insulation mortar, and floor surface mortar.

3. It can plaster to 500-1000m2 per 8hours, max height 0-30m; max distance 0-60m.

4. Its structure is very compact, smaller volume. And it's easy to move, dismantle and operate

Working Principle:

KLW-150 is the application of modern technology - a large capacity mortar spraying machine, which has pump conveying, bonding, spraying functions. High conveying efficiency, long pumping distance, easiness of pumping large particles of material, these can be used for spraying already-mixed mortar and field mixing mortar. Set the screw pump anti-wear control mechanism; with a direct separation of the screw rotor and stator on machine; adjust the displacement and remote control functions, pressure sensor control. It is suitable for conveying and spraying variable kinds of plastering mortar, insulation mortar, bonded mortar, fiber mortar, facing mortar, interface mortar, floor mortar, fire mortar, refractory mortar, self-leveling mortar, masonry mortar, reinforced mortar, fill mortar and pouring mortar.

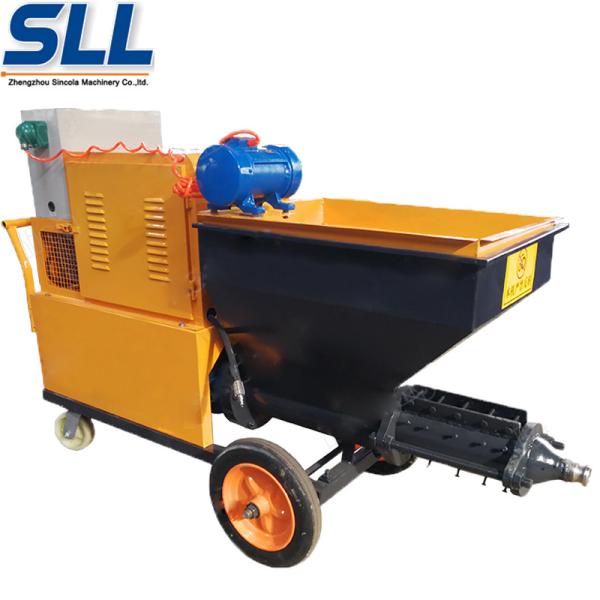

Pictures:
