Basalt Marble Granite Diamond Wire Saw Machine For Quarry Hydraulic Cutting
Basalt Marble Granite Diamond Wire Saw Machine For Quarry Hydraulic Cutting
Basalt Marble Granite Diamond Wire Saw Machine For Quarry Hydraulic Cutting
Basalt Marble Granite Diamond Wire Saw Machine For Quarry Hydraulic Cutting
Basalt Marble Granite Diamond Wire Saw Machine For Quarry Hydraulic Cutting
Basalt Marble Granite Diamond Wire Saw Machine For Quarry Hydraulic Cutting
Specifications
Brand Name :
Sincola
Model Number :
SLQ-70AM
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD 8500-15000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 set per month
Delivery Time :
5-8 days
Packaging Details :
wooden case packing
Name :
Wire Saw Machine
Power :
25kw
Condition :
New
Use :
Concrete Curb
After-sales service provided :
Online support
Type :
Stone Cutting Machine
Description

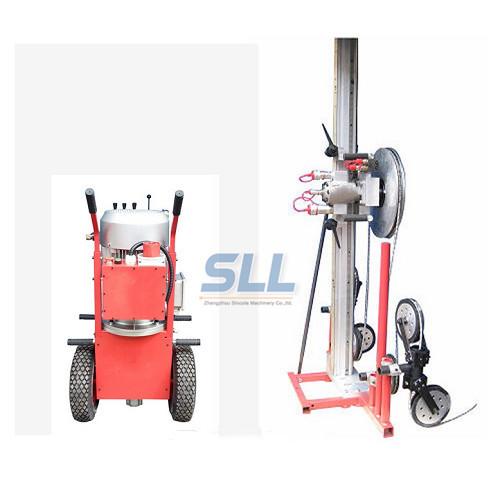

Hydraulic Cutting Basalt Marble Granite Diamond Wire Saw Machine For Quarry

Description

Wire saw machine is widely used for cutting reinforced concrete, masonry and various construction materials. For controlled demolition work and dismantling, conversion and renovation work in building construction and civil engineering.

Technical Parameters

SLQ-70AM wire saw machine
max. wire storage 10m
total travel 1800mm
width 1050mm
depth 550mm
height 2050mm
length of protective cover 2000mm
drive wheel 550mm
Storage wheel 200mm
rack weight(Including all wheel) 85kg
Wire saw head 30kg(easy to disassemble and assemble)
hydraulic power unit 600TM 25 kW, 200 bar,3speeds, 0-85l/min, 180kg

Advantage of Wire saw SLQ-70AM
Gross wire length 10 m
Quick, safe and easy wire sawing.The wire saw with the extra large wire store and long stroke for maximum Utilization and application for a maximum structure size of 10 m.
multiple applications.Easy start-up and wire conserving thanks to the innovative damping system. Hydraulic main and feed motors for Italy.

Wire Saw Machine For Quarry Features
1.Double frequency converters ensure automaticlly adjustment of moving speed, in order to keep the wire be in the best working condition.
2.No need to distinguish or change the power phase, the machine has over-load protection, lacking phas protection and terminal limit protection.
3.The lateral moving and the rotation of head are controlled by electric motor, Photoelectric proximity switch installed on the head for limitation protection.
4.Control platform display the key parameters such as the main motor set current, rotation speed of main motor, etc.
Two operating mode, manul and automatic, can be shifted . One person can take care of several machines.

global agent recruitment.pdf

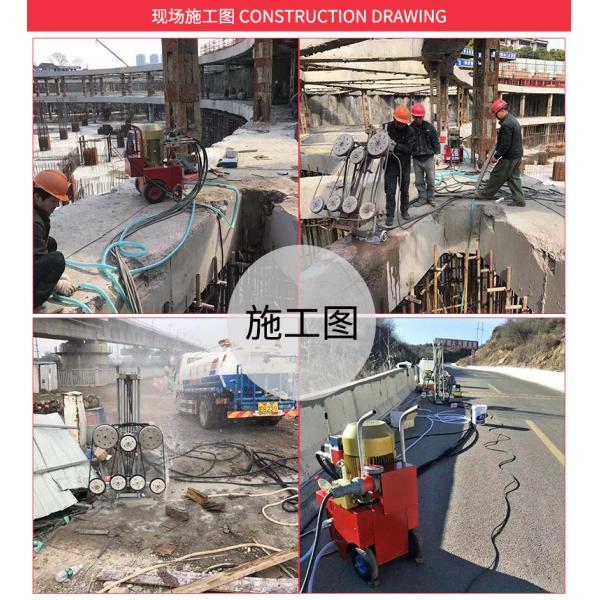

Pictures show
