Sandstone Cutting Wire Saws Automatic CNC Wire Saw Machine Made In China

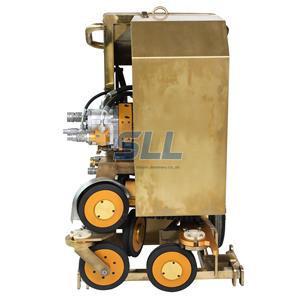

Wire Saw Machine Introducing

1.SSJ-B2 wire saw machine is Sincola Machinery self-manufactured wire saw machines for quarrying and mining big stones.

2.SSJ-B2 wire saw machine has 6 different models which have length of wire ranging from 5-40m to 20-150m. Customers can choose one of them based on the size of stones they want to cut.

3.SSJ series also has a PLC system, allowing it to adjust cutting velocity and tension of wire saw automatically, making it a functional and fine piece of wire saw machine.

Advantage
The row wheels are made of magnesium alloy and weigh about one-third of the weight of the iron. The row wheel structure is fastened up and down, simple and sealed, and waterproof.The bearing adopts high-speed double-row angular contact ball bearing, which widens the width of the bearing and makes the bearing area larger, so that the wheel running is more stable and safe, and the service life is long.The disassembly wrench is installed on the body travel tray for easy disassembly. The disassembly wrench presses the eccentric shaft to press the track to make the tray and the track compact.

Features

1.The wire tension and cutting current is closed loop automatic controlled by PLC and inverter.
2.The cutting process can be automatical controlled accurately.
3.The movement and rotation of the cutting head is driven by motor with position Limitation Protection.
4.Machine protection functions including:wire broken,Machine overload,cutting finished,and others malfunction happened
5.Display an saving with digitization:the value of cutting current,linear speed and moving speed indicated on the panel,and the cutting time can be saved.
6. The machine without phase request.It is needn't to change and distinguish .

Parameter

Details show
