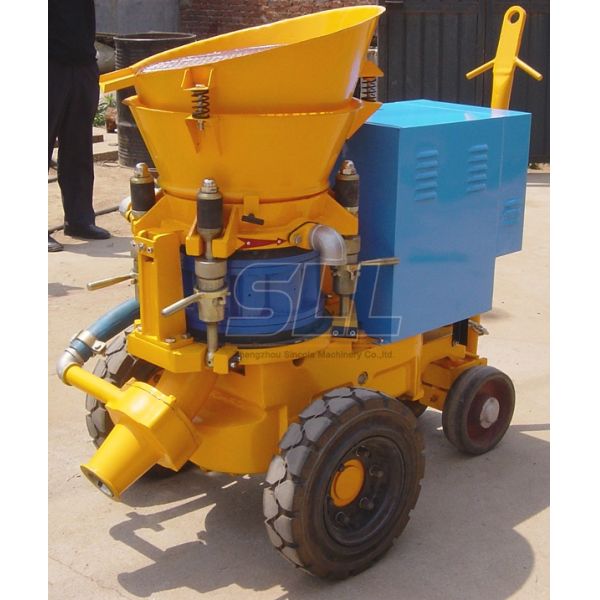

Electric SPZ-3 Concrete Shotcrete Machine Portable Shotcrete Gunite Equipment
Electric SPZ-3 Concrete Shotcrete Machine Portable Shotcrete Gunite Equipment
Electric SPZ-3 Concrete Shotcrete Machine Portable Shotcrete Gunite Equipment
Electric SPZ-3 Concrete Shotcrete Machine Portable Shotcrete Gunite Equipment
Electric SPZ-3 Concrete Shotcrete Machine Portable Shotcrete Gunite Equipment
Electric SPZ-3 Concrete Shotcrete Machine Portable Shotcrete Gunite Equipment
Electric SPZ-3 Concrete Shotcrete Machine Portable Shotcrete Gunite Equipment
Electric SPZ-3 Concrete Shotcrete Machine Portable Shotcrete Gunite Equipment
Specifications
Brand Name :
Sincola
Model Number :
SPZ-3
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD4500 - USD8000 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 set per month
Delivery Time :
15 days
Packaging Details :
woodencase packing
Name :
Concrete Shotcrete Machine
Material :
Stainless Steel
Output :
3m3/h
Drive type :
Electric, Diesel, Air
Warranty :
1 Year
Type :
shotcrete machine for sale
Description

Electric SPZ-3 Portable Shotcrete Gunite Equipment Concrete Shotcrete Machine

Description

Concrete Shotcrete Machine are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc.

Technical Parameters

Name Concrete shotcrete machine
Output 3 m3/h
Max.conv.dist 200m
Water cement ratio < 0.4
Max.Aggregate.size 10mm
Hose inner size φ42/50
Air pressure 0.2-0.6 MPa
Air consumption 5-6 m3/min
Motor Power 3Kw
Dimension 1130x1020x540mm
Weight 520kg

How to operate the concrete shotcrete machine

1. Strictly perform the operation according to the requirements of the usual construction process;
2, the aggregate should use the quality of the medium sand, the mud content can not be too large;
3. When the wind is at level 4 or above, spraying shall not be carried out. Spraying construction is strictly prohibited in heavy rain;
4. Before the spraying, the base layer should be kept clean, release agent, and no oil stains.
5. When spraying, the concrete base layer should be watered and moistened in advance to ensure the effective and firm adhesion of the interface agent;
6. The blasting slurry should cover all construction interfaces relatively evenly;
7. The second injection treatment should be carried out on the part with uneven injection. In the tunnel shotcreting, it should be strictly in accordance with the precautions, so that the effect of the spray will be guaranteed, and the tunnel shotcrete has a small working dust concentration and is sprayed back. The advantages of less bombs, protecting the working environment, saving raw materials, improving the quality of the spray layer, and easy operation and maintenance.
