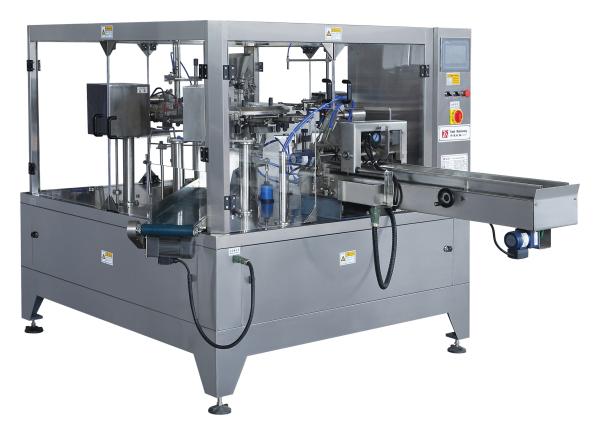

1 Phase 220V Rotary Pouch Packing Machine 4.5KW Power 2450 * 1880 * 1900mm Size
1 Phase 220V Rotary Pouch Packing Machine 4.5KW Power 2450 * 1880 * 1900mm Size
Specifications
Brand Name :
TOPSPACK
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3 sets per month
Delivery Time :
30 days
Packaging Details :
seaworthy plywood carton
Material :
Stainless Steel 304
Power Supply :
1P220V or Customized
Working Stations :
6 stations or 8 stations
Bag Type :
Stand-up pouch, flat bag, zipper bag, etc
Guarantee time :
18 months after machine receiption
Service :
Local branch office or Chinese engineer oversea's service
Function :
bag opening ,filling ,sealing
driven type :
electric
Description

Rotary pouch packing machine for stand-up bags 8 stations TOPAPACK brand

Application(TP-200B)

Suitable for garin material, such as Melon seed, nuts, candy, Raisins, Chinese wolfberry, Red dates, Potato chips, cookies, crystal monosodium glutamate and others solid material automatic packing.

Safety Device

  • No pouch or open error,on filling.
  • No pouch or no filling,no sealing.
  • No coding ribbon,Emergency stop and alarm.
  • The safety door open,alarm(option)
  • The air pressure not enough,alarm.
  • The sealing temperature anomaly,alarm

Specifications:

Model TP-200B
Working position eight-working position
Pouch material Laminated film
Pouch pattern Flat, stand-up pouch with zipper
Pouch size W:100-210mm L:100-350mm (could be customerzed)
Speed 10-40pouches/min (The speed depends on the product status and filling weight)
Weight 1700KGS/2000KGS
Voltage 380V 3phase 50HZ/60HZ (could be 220v or 480v)
Total power 4.5KW
Compress air 0.6m3/min(supply by user)
Dimension 2450*1880*1900mm

Working process
