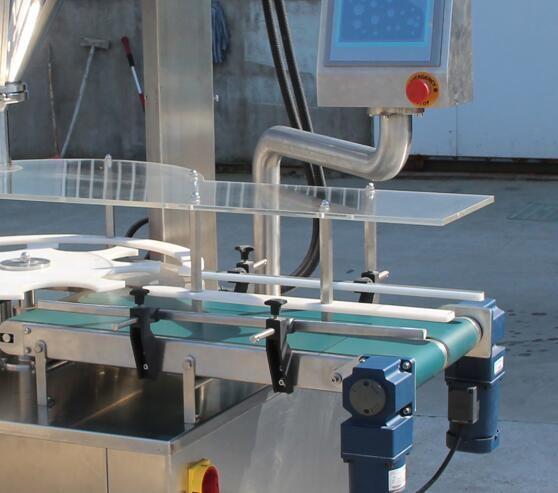

25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed
25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed
25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed
25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed
25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed
25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed
25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed
25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed
Specifications
Brand Name :
TOPSPACK
Model Number :
TP-PF-A31 TP-PF-A32
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
Negotiable
Delivery Time :
25 working days
Packaging Details :
seaworthy plywood packaging
Name :
high speed rotary filler for ground coffee milk powder spice chemical powder 1g to 5000g filling
Filling speed :
20~50 bottles/per min
packing weight :
1-5000g
material :
stainless steel 304 or 316
hopper volume :
25L 50L 70L
Power supply :
3P AC208-415V 50/60HZ
Description

high speed rotary filler for ground coffee milk powder spice chemical powder 1g to 5000g filling

The equipment is redesigned according to market development needs, combined with the practice on the basis of the development and design, in line with national GMP standard the machine fusion cincept of European packaging science and technology, the latest technology, design more reasonable and concise and more solid automatically feed tank filling, etc. Suitable for filling powder and granule materials, such as solid drink grape, milk powder, spices, etc.

25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed

Main features :

1, All stainless steel structure,easy to disassemble and clean.
2, High precision servo motor control filling, accurate metering.
3, A variety of product adjustment parameters formula can be stored, ready for later use.
4, The replacement of spiral accessories can adapt to a variety of materials such as ultrafine powder to small particles.
5, touch screen PLC control, no bottle, no filling.
6, Can be applied to food, medicine and corrosive chemical raw materials. Centralized dust removal, no dust pollution in the workshop.

Specifications:

Model TP-PF-A31 TP-PF-A32
Container size Φ20~100mm,H15~150mm Φ30~160mm,H50~260mm
Packaging weight 1-500g 10-5000g
Filling speed 20~50 bottles/min 20~40 bottles/min
Filling accuracy ≤100g ≤±2% ,100~500g ≤1% ≥500g,≤±0.5%
Power supply 3P AC208-415V 50/60HZ 3P AC208-415V 50/60HZ
Air supply 6kg/cm³ 0.05m³/min 6kg/cm³ 0.05m³/min
Total power 1.8KW 2.3KW
Total weight 250kg 350kg
Over demension 1400*830*2080mm 1840*1070*2420mm
Hopper volume 35L 50L(enlarged size 70L)

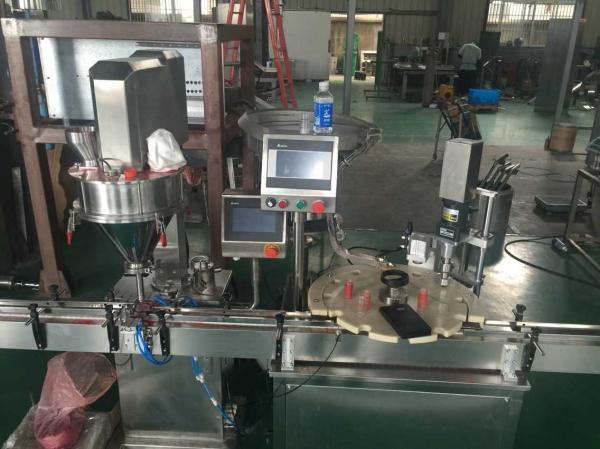

Processing :

25L Rotary Powder Filling Machine 3 Phase For Ground Coffee High Speed
