Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width
Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width
Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width
Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width
Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width
Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width
Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width
Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width
Specifications
Brand Name :
TOPSPACK
Model Number :
TP-PF-V series
Certification :
CE SGS
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
25 sets per month
Delivery Time :
30 work days
Packaging Details :
seaworthy plywood case
Name :
Powder Automatic Packing Filling line
Filling range :
1-500g
Metering mode :
auger filling
Filling speed :
40-60 bags/minute
Material :
Stainless steel 304 material
Power supply :
3P 208-415V 50/60 HZ
Description

Mica Powder Automatic Packing Filling Line with Auger metering SS304

Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width



The whole filling line machines:

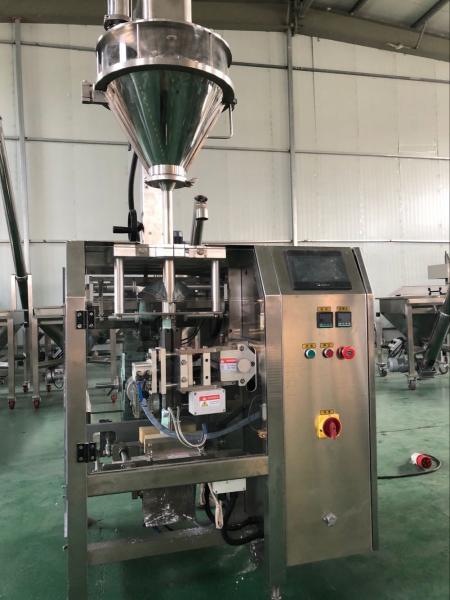

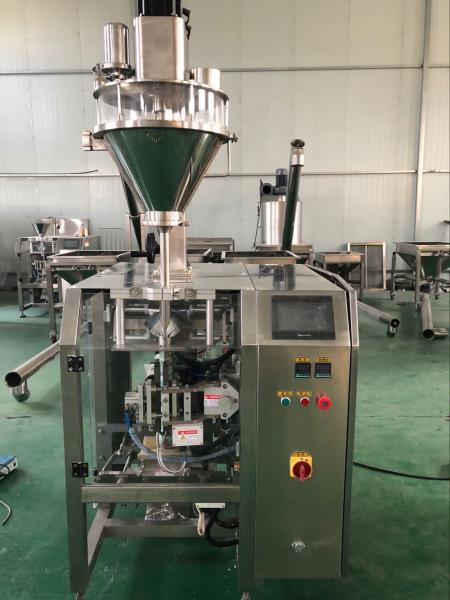

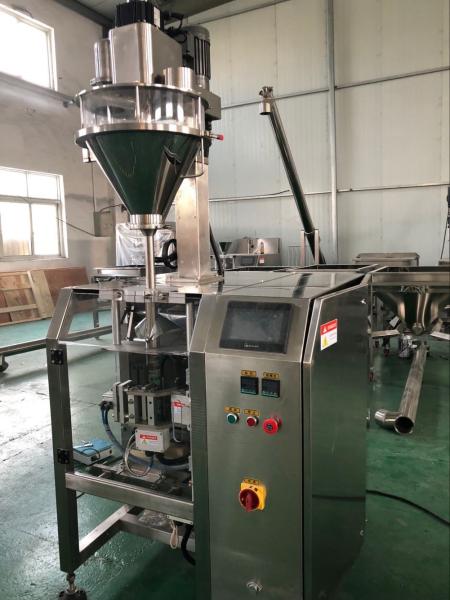

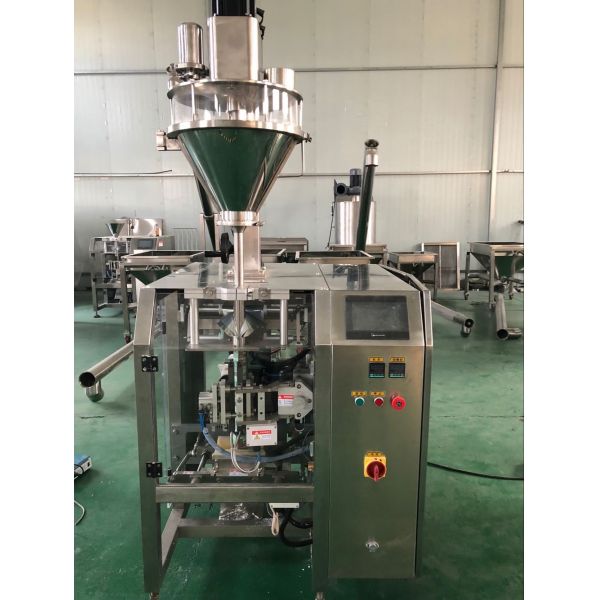

A: Fully Automatic Vertical Filling and Sealing Machine:


Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width

Specifications:

Model TP-PF- V430
Packing Speed 40-60packs/min
Packaging film width 150-430(mm)
Big Sizes(Length/ width) 100-300(mm) /70-200(mm)
The total power 4.9Kw
Heating power

Vertical sealing: 0.9 Kw ;

Transverse sealing: 1.5 Kw
Total weight 650Kg
The machine noise ≤75 decibels
Outer dimension(Length*width*height) 1430×1200×2700(mm)
Compressed air cost 6-8Kg/m2 0.3m3/min
Power source type 220V,50Hz




Optional configuration:

1. Printer
2. gusseting device
3. Inflator equipment
4. Pothook/ holes-punching functions( round or Euro slot/hole and others)
5. pre-clamping device of horizontal sealing
6. product-clip device of horizontal sealing
7. Automatic sales promotion card-sending device
8. Automatic sales promotion film strip device outside of the bag



Advantage:

(1) Collar type bag making structure,The bag is beautiful and the stability is high.
(2) Open internal structure, easy to change parts, easy to clean up.
(3) With cylinder as power, high efficiency, environmental protection and high stability.
(4) Make block bags and hanging bags according to customers' different requires.


Features
(1) Equipped with safety protection, comply with firm's safety management requires;
(2) Use intelligent temperature controlling machine to have accurate temperature control; ensure the artistic and neat seal;
(3) Use PLC Servo System and pneumatic control system and super touch screen to form the drive control center; maximize
(4) the whole machine's control precision, reliability and intelligentized level;
(5) This machine completes the whole packing procedure of measuring, loading materials, bagging, date printing, charging
(exhausting) and products transporting automatically as well as counting;
(6) Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing;
(7) Have error indicating system, helping to handle the trouble immediately;
(8) Make block bags and hanging bags according to customers' different requires;
(9) Both stainless steel machines and carbon steel machines;
(10) Single-belt transportation, placidly and quickly, small friction, little waste;
(11) Have stainless steel model and carbon steel model for choose.

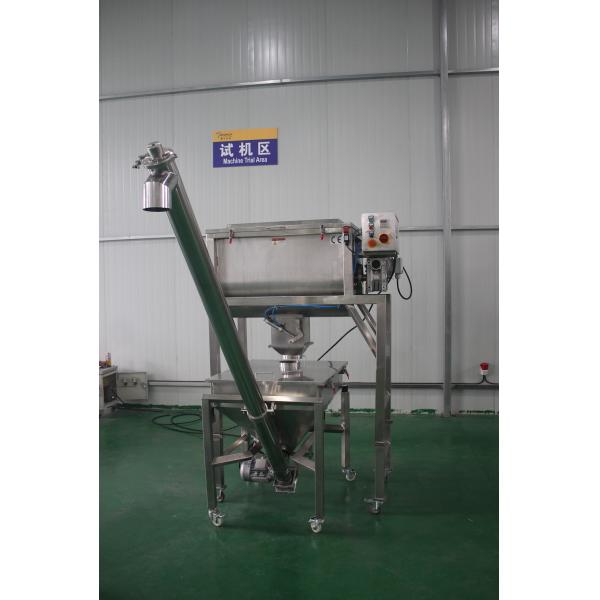

B: Auger feeding machine for powder material:

Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width

C: Auger filling head for metering:

Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width

D:Finished product conveyor:

Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width



Packing & Shipping :

Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width


Our company :
Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width

Our certificate:

Automatic Mica Powder Filling Line 3 Phase 208 - 415V 150 - 43mm Packaging Film Width
