500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine
500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine
500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine
500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine
500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine
500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine
500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine
500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine
Specifications
Brand Name :
TOPSPACK
Model Number :
TP-GF-V series
Certification :
CE SGS
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
25 sets per month
Delivery Time :
30 work days
Packaging Details :
seaworthy plywood case
Name :
Automatic Packing Filling line
Filling range :
1-500g
Metering mode :
Multihead weigher
Filling speed :
40-60 bags/minute
Total power :
4.9kw
Material :
stainless steel 304
Description

Vertical Packing Machine Filling Line for Powder Product or Granules Product

500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine

The whole filling line machines:

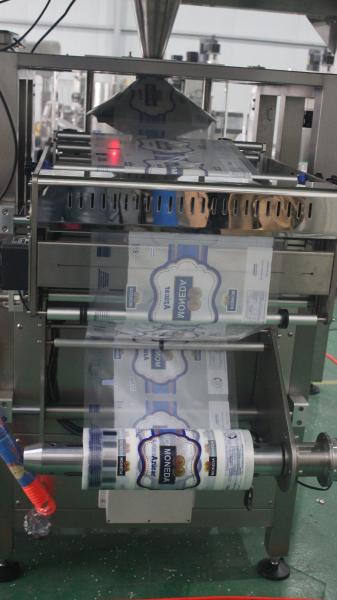

A: Fully Automatic Vertical Filling and Sealing Machine:

500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine

Specifications:

Model TP-PF- V430
Packing Speed 40-60packs/min
Packaging film width 150-430(mm)
Big Sizes(Length/ width) 100-300(mm) /70-200(mm)
The total power 4.9Kw
Heating power

Vertical sealing: 0.9 Kw ;

Transverse sealing: 1.5 Kw
Total weight 650Kg
The machine noise ≤75 decibels
Outer dimension(Length*width*height) 1430×1200×2700(mm)
Compressed air cost 6-8Kg/m2 0.3m3/min
Power source type 220V,50Hz

Optional configuration:

1. Printer

2. gusseting device

3. Inflator equipment

4. Pothook/ holes-punching functions( round or Euro slot/hole and others)

5. pre-clamping device of horizontal sealing

6. product-clip device of horizontal sealing

7. Automatic sales promotion card-sending device

8. Automatic sales promotion film strip device outside of the bag

Advantage:

(1) Collar type bag making structure,The bag is beautiful and the stability is high.

(2) Open internal structure, easy to change parts, easy to clean up.

(3) With cylinder as power, high efficiency, environmental protection and high stability.

(4) Make block bags and hanging bags according to customers' different requires.

B: Z shape bucket feeding machine for granules material:

500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine

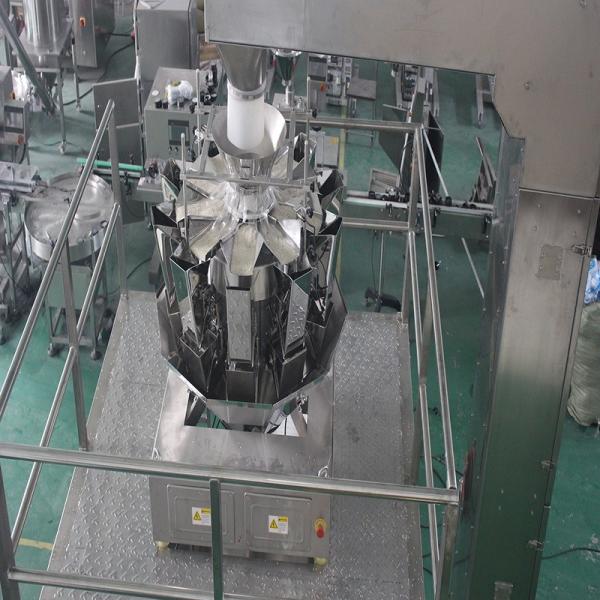

C: Multihead weighter for metering:

500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine

D:Finished product conveyor:

500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine

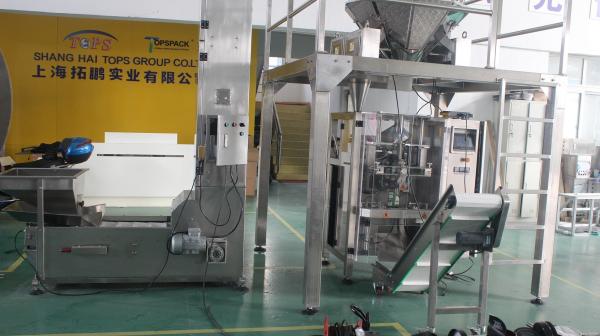

Whole production line photo:

500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine

Packing & Shipping :

500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine

Our company :

500g Automatic Rice Packing Machine , Z Shape Feeder Powder Bag Filling Machine
