High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine
High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine
High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine
High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine
High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine
High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine
High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine
High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine
Specifications
Brand Name :
TOPSPACK
Model Number :
TP-PF series
Certification :
CE SGS
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, D/A, D/P
Supply Ability :
20 sets per month
Delivery Time :
25 work days
Packaging Details :
seaworthy plywood case
Name :
Powder filling line
Filling range :
10-5000g
Hopper volume :
50L split hopper
Filling speed :
15-40 times per minute
Filling accuracy :
≤ 100g, ≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5%
Power :
3P 208-415V 50Hz/60Hz
Description

High Precision Baby Powder Filling Line Rotary Type Production Line

General Description :

Our full automatic powder filling line can handle weighing,filling,sealing functions etc.Featured with real-time weighing and filling design these machine can be used to pack high accuracy required,with uneven density,free flowing or non free flowing powder or small granule.I.e. Milk powder, protein powder,food additive,solid beverage,sugar,toner,veterinary and carbon powder etc.

Specifications:

Model TP-PF-A301 TP-PF-A302
Hopper Volume 25L 50L
Container Size Φ20-100mm;H15-150mm Φ30-160mm;H50-260mm
Control system PLC & Touch Screen PLC & Touch Screen
Packing Weight 1 - 500g 10-5000g
Packing Accuracy ≤ 100g, ≤±2%; 100 – 500g, ≤±1% ≤ 500g, ≤±1%; ＞500g, ≤±0.5%
Filling Speed 20-50 bottles per min 20-40 bottles per min
Air supply 6 kg/cm2 0.05m3/min 6 kg/cm2 0.05m3/min
Power Supply 3P AC208-415V 50/60Hz 3P AC208-415V 50/60Hz
Total Power 1.2 KW 2.3 KW
Total Weight 160kg 260kg
Overall Dimensions 1400×830×2080mm 1480×1070×2420mm

High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine

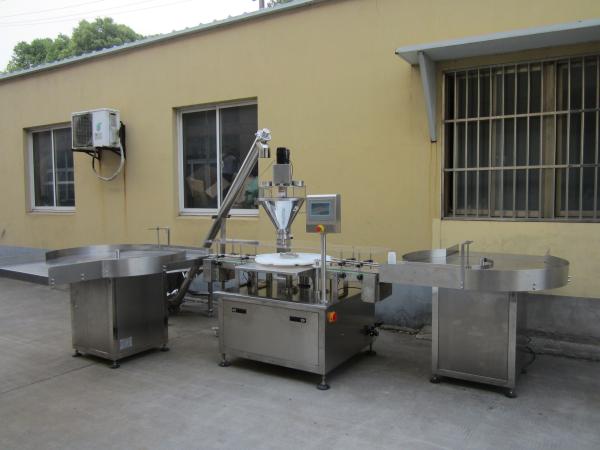

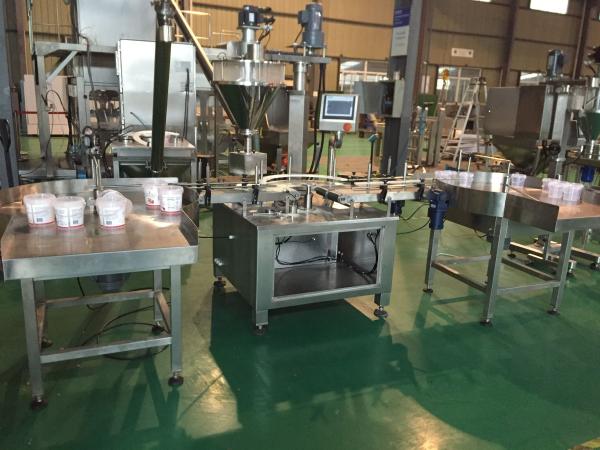

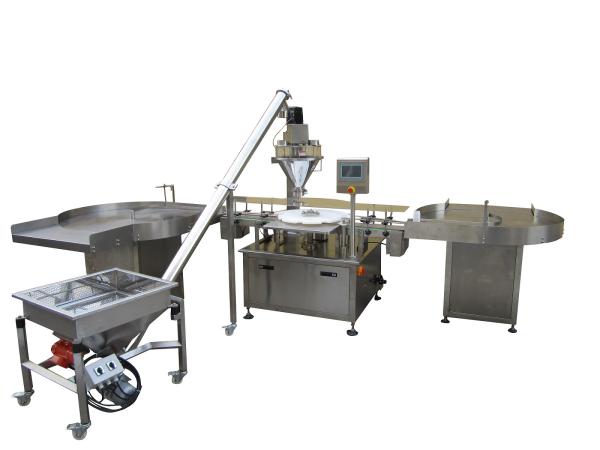

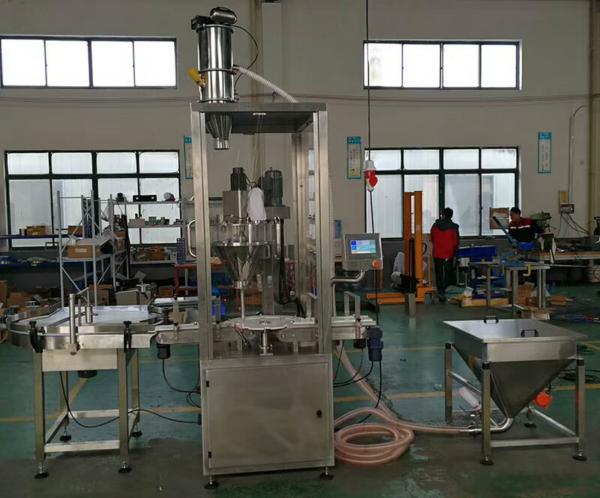

The whole filling line machines:

A: Unscrambling turning table/collecting turning table

High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine

B: Auger filling machine with rotary plate and dustproof cover:

High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine

C: Powder ribbon mixing machine

High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine

D: auger feeding machine-automatic load filler hopper (lever sensor to control)

High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine

E: Automatic Can Sealing Machine

High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine

Our Exhibition :

High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine

Our Certification:

High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine

Our Company:

High Precision Powder Filling Packing Machine , Rotary Milk Powder Mixing Machine
