Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase
Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase
Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase
Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase
Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase
Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase
Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase
Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase
Specifications
Brand Name :
TOPSPACK
Model Number :
TP-PF-A11S
Certification :
CE SGS
Place of Origin :
Shanghai
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
15 sets per month
Delivery Time :
20 work days
Packaging Details :
seaworthy plywood case
Name :
Semi Automatic Powder Filling Machine
Filling range :
1-500g
Hopper volume :
25L
Weight dosing :
By load cell
Filling accuracy :
≤ 100g, ≤±2%; 100 – 500g, ≤±1%
Power supply :
3P AC208-415V 50/60Hz
Description

Coffee Scrub Semi Automatic Powder Filling Machine with Load Cell

General Description :

This series packing machines can handle weighing,filling functions etc.Featured with real-time weighing and filling design these machine can be used to pack high accuracy required,with uneven density,free flowing or non free flowing powder or small granule.I.e. Protein powder,food additive,solid beverage,sugar,toner,veterinary and carbon powder etc.

Features :

1. Stainless steel structure;split hopper could be washed easily without tools.
2. Servo motor drive screw.
3. Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight.Featured with high speed and accuracy weighing system.
4. PLC control, touch screen display, easy to operate.
5. Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
6. Save the parameter of different filling weight for different materials.To save 20 sets at most.
7. Replacing the auger parts,it is suitable for material from super thin powder to granule.

Specification :

Model TP-PF-A11
Control system PLC & touch screen
Hopper volume 25L split hopper
Filling weight 1-500g
Weight dosing By load cell
Filling accuracy

≤ 100g, ≤±2%; 100 – 500g, ≤±1%
Filling speed

30-100 times per min

Power supply

3P AC208-415V 50/60Hz

Total Power

 0.93kw
Total weight 160kg

Overall Dimensions

Overall Dimensions

Configuration List :

No. Name Pro. Brand
1 PLC Taiwan DELTA
2 Touch Screen Taiwan DELTA
3 Servo motor Taiwan DELTA
4 Servo driver Taiwan DELTA
5 Switching powder supply Schneider
6 Emergency switch Schneider
7 Contactor Schneider
8 Relay omron
9 Proximity switch Korea Autonics
10 Level sensor Korea Autonics

Detailed photos:

​A: split type hopper (simple to open the hopper and change different No. auger)

Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase

B: handwheel to adjust filling nozzle height (suitable for different height container)

Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase

C: Level sensor in the hopper (to control feeder automaticlly feeding)

Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase

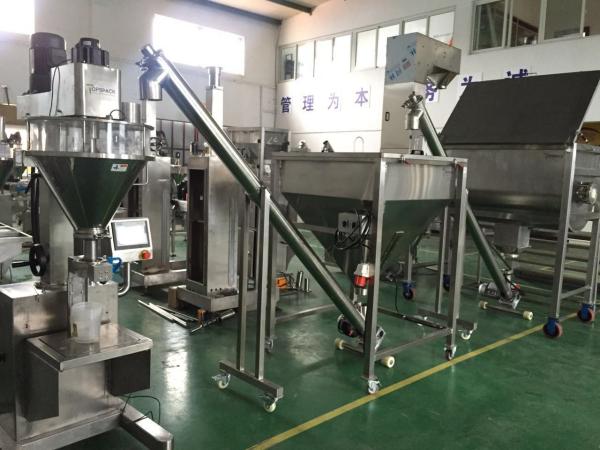

Our production workshop :

Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase

Packing & Shipping :

Coffee Scrub Semi Automatic Powder Filling Machine With Load Cell 3 Phase
