Specifications
Brand Name :
Topspack
Model Number :
TPWT-800
Certification :
CE certificate
Place of Origin :
Shagnhai
MOQ :
1 set
Price :
USD 7600/set
Payment Terms :
T/T, L/C, MoneyGram, Western Union
Supply Ability :
1 set per 15 days
Delivery Time :
15 days after receipt of the deposit
Packaging Details :
Standard plywood case
Material :
Stainless steel 304
Air :
1000~1300cmb/h
Pressure :
800-1000pa
Power :
0.75kw
Noise :
65-70db
Weight :
300kg
Oversize :
1250*1090*1840mm
Description

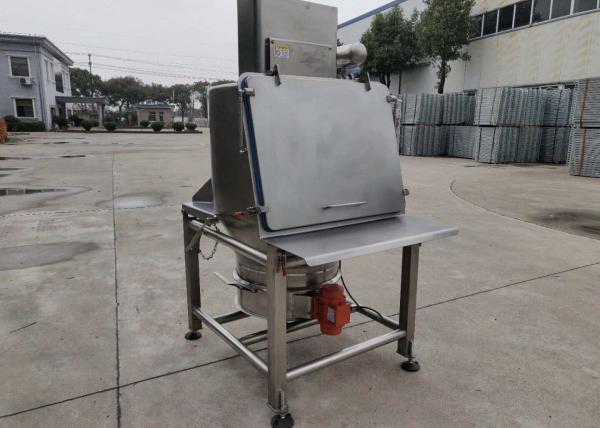

Stainless Steel 304 Hopper Feeder Conveyor For Milk Powder 1000-1300cmb/H

Description

The Dust-free Feeding Station is best suitable for powder and granule material handling. It provides a safe and friendly working environment for manufacturers. The built-in ventilation system and filters minimize the contamination when handling dust-generating products. The air in the loading chamber flow through the filters, leave the airborne dust on the filters and later to be cleaned by a dust-blowing system. The Dust-free Feeding Station integrated with a Vibratory Sieve check screening product for safety and improves your product’s quality.

Feature

  • Dust-free material handling
  • Reduce health risks in the workplace
  • Protect the environment from hazardous materials
  • Increase the quality of your products and the working environment
  • Round-shape design with no dead corners for cleaning
  • Robust build with Stainless Steel 304
  • Complete mirror-polished surface inside the working chamber

Parameters

Model Air(m3/h) Pressure(PA) power(kw) Noise(dB) Oversize(mm) Weight(Kg)
TPWT-800 1000~1300 800~1000 0.75 65~70 1250*1090*1840 300
Name Dust-free dump station Straight flow vibrating sieve
Configuration Air pressure: 0.6~0.8MPA Diameter: 600mm
Dust precipitation: 99.9% Screen grade: 10
Air motor: 0.75KW Vibrating motor: Oli-Wolong
Pulse Valve:(1 inch) SBFEC Powder: 0.04KW
Relays: Schneider
Filter:PTFE Bag type(Stainless steel Seal ring)
Compressed air adjuster:Airtac
Filtering precision: 3~5μm
Pulse adjuster:24V
Fastening type: adjustable feet
Wind wheel: centrifuge adjustment wind wheel
Advantage The exterior surface is matte finish, the interior surface is mirror polishing., the main body is easy to clean, no dead area and no residue.

Details

Stainless Steel 304 Hopper Feeder Conveyor For Milk Powder 1000-1300cmb/H

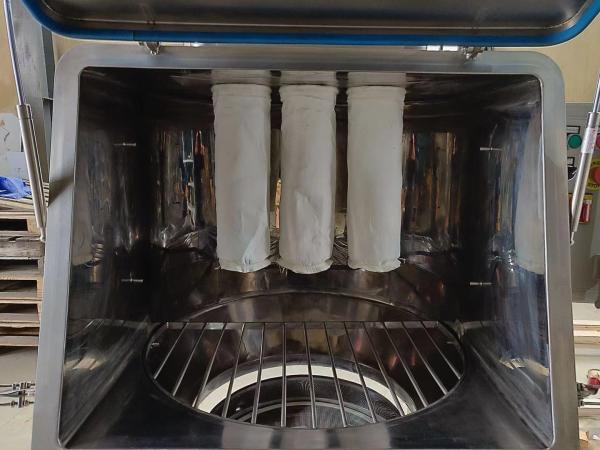

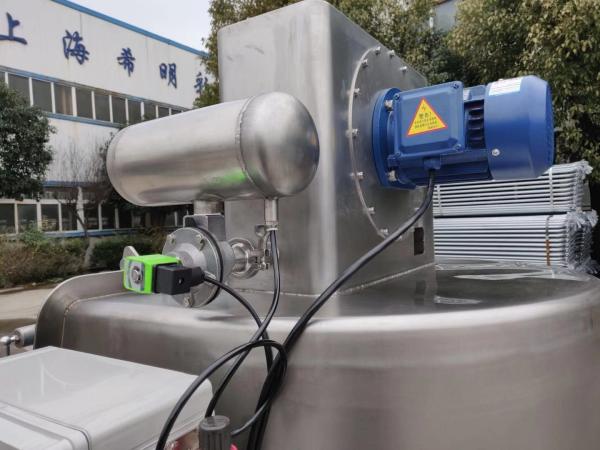

The air tank is connected to the dust filter and an air compressor and filled with compressed air. It can release the air manually or automatically (by Setting on the Pulse valve controller) , cleans the filter by blowing from inside of the filter leave the dust falling to the lower chamber.
