Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DSD4030
Description

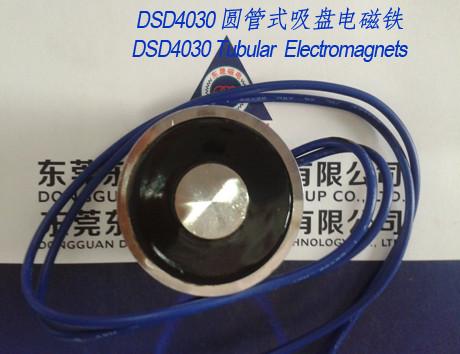

Electromagnets-sucker︱Sucker Solenoids︱Tubular Electromagnets----DSD4030(IR-CUT︱Solenoid Valve︱ Solenoid pump︱Solenoid Coil)

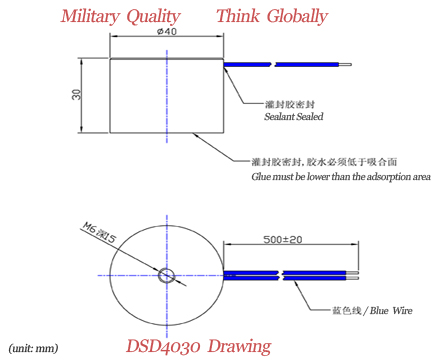

1. Size: ￠40mm*H30mm

Electromagnets-sucker︱Tubular Sucker Solenoids︱Fire door Electromagnets

2. Feature:

1) With compact Tubular design

2) Magnetic shell, sealing structure

Basic Parameters of the Electromagnets
No. Name Result
1 Operating Voltage DC3~48V
2 Dielectric Strength AC1200 (50/60HZ) 1s (10mA)
3 Environment temperature -10℃~180℃
4 Temperature rise DC12V, below 65℃

3. Life: Ninety million times (Energized: 2s, De-energized: 2s)

4. Advantage:

1) Extremely long service life

2) Small size

3) Has great adsorption capacity

4) High adaptability to environment

5. Main purpose:

It is mainly used in binding machine and robot, fire door hold and release mechanisms.
