Electromagnetic Clutch︱Electromagnets-sucker︱Sucker Solenoids︱Electromagnetic Brake

Specifications

Place of Origin :

China

Brand Name :

Dongsheng

Certification :

The Third Party

Model Number :

DSD10050

Description

Application of the Electromagnets& Solenoids can be summarized as two aspects. One is widely used in automatic device system as an independent magnetic component; the other one is the main components of magnetic components, and used in magnetic relay, contactor, solenoid valve, solenoid pump, Electromagnetic Clutch, Electromagnetic Brake, etc.

Electromagnetic Clutch︱Electromagnetic Brake︱Electromagnets-sucker︱Sucker Solenoids︱Tubular Electromagents----DSD10050 ( IR-CUT︱Solenoid Valve︱Solenoid pump︱Electromagnets)

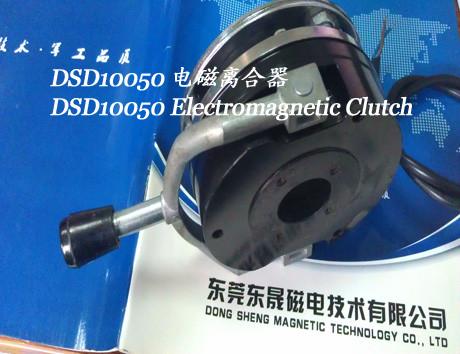

As a Sucker Solenoid, DSD10050 is the main magnetic component of the Electromagnetic Clutch.

1. Outside dimension of the Electromagents: ￠100mm, H50mm

Electromagnetic Clutch︱Electromagnets-sucker︱Sucker Solenoids︱Electromagnetic Brake

2. Performance:

1) Comes with rectifier module

2) High sensitivity, strong braking effect

3) High-temperature resistant, wear resistant

4) Long service life

General Specifications of Electromagnetic Clutch
No.	Name	Result
1	Operating Voltage	88~220V,DC
2	Power	30W
3	Duty Cycle	50% ED
4	Working Temp.	-10℃~180℃
5	Temp. Rise	DC99V, below 65℃
6	Life Expestancy	30 million times
7	Initial Suction	10N
8	Spindle Speed	3000r.p.m

3. Application:

Electromagnetic Clutch &Electromagnetic Brake are mainly used in applications where several axes need to be engaged/disengaged and synchronized to a rotating main drive axis. By using gears other speeds can also be realized.

Typical examples for applications are paper transportation in printer, money handling and money sorting equipment, electric braking equipment.

Instructions:

In case you cannot find the right product for your application within our standard products, we are happy to adapt existing design with respect to electrical or mechanical properties or develop completely new products for you.
