Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DSK0730
Description

Linear Solenoids ︱ Latching Solenoids︱Single direction keep Solenoids︱Open Frame Solenoids︱Laser engraving machines Solenoids︱Intelligent locks Solenoids---- DSK0730(IR-CUT︱Solenoid valve︱Solenoid pump︱Electromagnets)

Latching solenoids use permanent magnets to maintain position.

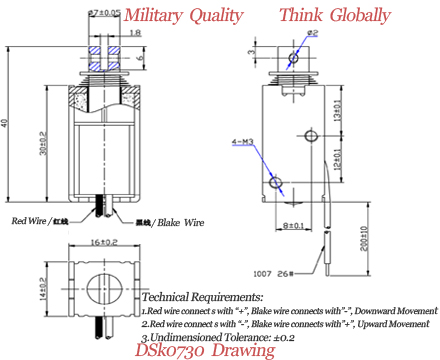

1. Main size: ￠7mm, L30mm

Linear Solenoids︱Latching Solenoids︱Single direction keep Solenoids︱Mono-stable Solenoids

General Specifications of Latching Solenoids/Keep Solenoids
No. Name

Result
1 Operating Voltage

3~24V,DC
2 Dielectric Strength

AC500(50/60Hz) 1min
3 Duty Cycle

ED 50%
4 working Temp.

-10℃~160℃
5 Temp. Rise

DC6V, below 65℃
6 Holding Force

13N
7 Stroke

7mm

2. Life: five hundred thousand times (Energized: 2s, De-energized: 2s)

3. Performance:

1) Belongs to Linear Solenoids, also known as Keep Solenoids

2) Self-maintain without power

3) After reverse energized, it can auto reset under the spring force or load conditions

4) Well suited for battery operated applications

5) Compact design, easy to control

6) Heat generation is minimized

7) Low consumption, energy saving

8) Reliable action, responsive

4. Application:

It is mainly used in laser engraving equipment, door lock, time clock, toys.

Instructions:

In case you cannot find the right Solenoids for your application within our standard products we are happy to adapt existing design with respect to electrical or mechanical properties or develop completely new Solenoids for you.
