Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DSK1037
Description

Monostable linear solenoids are electromechanical magnets with a linear direction of motion in which the plunger is locked into one of the two end positions. These solenoids magnetise the plunger so that it adheres to the final position on the magnet frame.

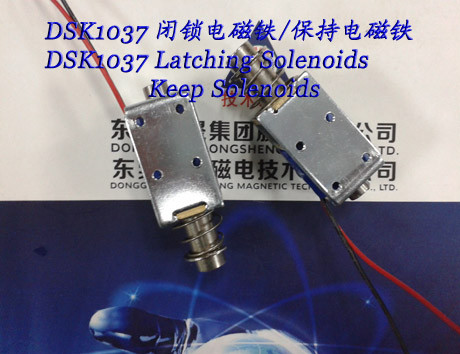

Linear Solenoids ︱ Latching Solenoids︱Single direction keep Solenoids︱Open Frame Solenoids︱Intelligent locks Solenoids︱Laser engraving machines Solenoids---- DSK1037 (IR-CUT︱Solenoid Valve︱Solenoid pump︱ Electromagnets)

1. Basic size: plunger diameter—10mm, Length—37mm

Linear Solenoids ︱ Latching Solenoids︱Single direction keep Solenoids︱Locks Solenoids

2. Performance:

1) Built in ferrite magnet

2) Linear Solenoids, monostable

3) Open frame design

4) Has self-keeping function after power-off

General Specifications of Latching Solenoids/Keep Solenoids
No. Name

Result
1 Operating Voltage

6~24V,DC
2 Dielectric Strength

AC500V(50/60Hz) 1min
3 Duty Cycle

ED 50%
4 Working Temp.

-10℃~180℃
5 Temp. Rise

DC12V, below 65
6 Holding Force

16N
7 Stroke

8mm

3. Service life: five hundred thousand times (energized: 2s, de-engergized: 2s)

4. Advantage:

1) Simple structure, reliable action

2) Low power consumption

3) Connection parts of moving iron core can be designed to diversify

5. Application:

This kind of Latching Solenoid is mainly used in laser engraving equipment, door locks, time clocks and security devices.
