Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DST3013
Description

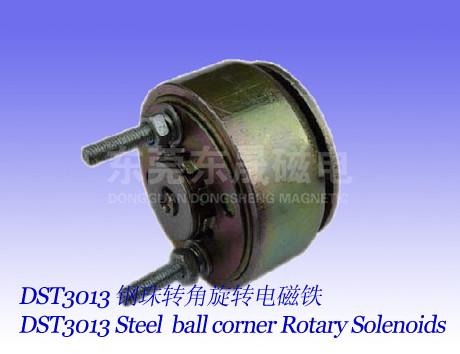

Rotary Solenoids︱Steel ball corner Rotary Solenoids︱Mono-stable Rotary Solenoids︱Sewing machines Rotary Solenoids---DST3013 (IR-CUT︱Solenoid Valve︱Solenoid pump︱Electromagnets)

1. Outside dimension: Diameter—30mm, Length—13mm

Rotary Solenoids︱Steel ball corner Rotary Solenoids︱Sewing machines Rotary Solenoids

2. Life: 1.5 million times (Energized: 1s, de-energized: 2s)

Technical data of Rotary Solenoids
No. Name

Result
1 Operating Voltage

6~48V,DC
2 Dielectric Strength

AC1000V(50/60HZ) 1min
3 Power

7.5W
4 Environment Temp.

-10℃~180℃
5 Temp. Rise

DC28V, below 75℃
6 Torque(45°)

11.3 mNm

7 Torque(35°)

22.6 mNm

8 Torque(25°)

22.6 mNm

3. Feature:

1) Single stable Solenoids

2) Belongs to steel ball corner Rotary Solenoids, it is a special structure which converts the traditional electromagnetic rectilinear motion to angular rotation.

3) Has some axial linear shaft movement

4) Rotation angle: up to 80°

5) Clock or counter-clockwise operation

4. Solenoids Functional Advantage:

1) Using CNC machining helicoids

2) Large torque, precision rotation angle

3) Smooth operation

4) Spring-return

5) Fast-acting

6) High-impact resistant

7) High service life

8) Environmental adaptability

5. Application:

This kind of Rotary Solenoids special used for for longer service life, limited space applications; such as industrial high speed sorting equipments with discharging, toys, sewing machines, medical equipment.

Instructions:

Our Solenoids & Electromagnets are “high performance” products designed for industrial applications although in principle they are simple.

In case you cannot find the right product for your application within our standard products, we are happy to adapt existing design with respect to electrical or mechanical properties or develop completely new products for you.
