Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DSD3517
Description

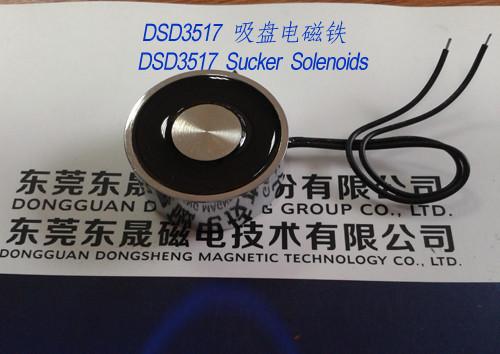

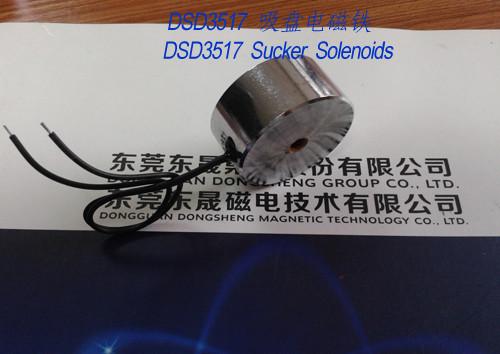

Sucker Solenoids︱Tubular Electromagnets︱Food machines Electromagnets︱Packing machines Electromagnets︱Holding Solenoids----DSD3517 (IR-CUT︱Solenoid Valve︱Solenoid pump︱Solenoid Coil)

1. Outside dimension: ￠35mm, H17mm

Sucker Solenoids︱Tubular Electromagnets︱Packing machines Electromagnets︱Holding Solenoids

2. Life expectancy: Sixty million times (Energized: 2s, De-energized: 2s)

General Specifications of the Electromagnets & Holding Solenoids
No. Name

Result
1 Operating Voltage

3~48V,DC
2 Dielectric Strength

AC1200(50/60Hz) 1s (5mA)
3 Power

2.8W
4 Environment Temp.

-10℃~180℃
5 Temp. Rise

DC24V, below 65℃
6 Holding Force

15kg

3. Feature:

1) Tubular Electromagnets &Holding Solenoids

2) Small size

3) Sealed housing

4) Great suction

5) Reliable, flexible

6) Adaptable to environment

7) High service life

4. Application:

It is mainly used in food machines and packing machines.

Attentions:

The retention of Sucker Solenoid is in proportion to the pull-in surface and flatness. Thus, the pull-in surface should be smooth and the surface area of the object should be larger than or the same to the Electromagnetic pull-in area to ensure the maximum retention.

Technical Considerations for selecting the Electromagnets / Holding Solenoids/Sucker Solenoids :

1) How long is the stroke?

Operating distance of the Electromagnets

2) The adsorption requirements of the Electromagnets

3) Power Supply

Voltage/ AC or DC ?

4) How much is duty cycle of the Electromagnet?

Instructions:

The Solenoid&Electromagnet is a non-standard component, 100% ODM or OEM is welcome too, just feel free to contact us.

The more you tell us, the best we can do.
