Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DSD6030
Description

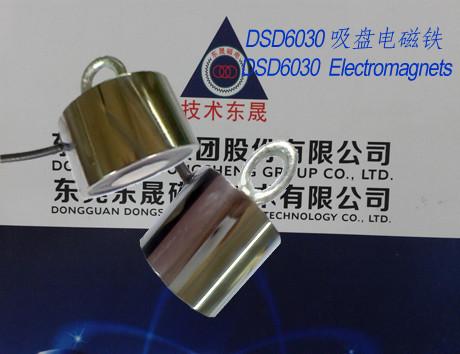

Electromagnets-sucker︱Tubular Sucker Solenoids︱non-contacting type Sucker Solenoids----DSD6030 (IR-CUT︱Solenoid Valve︱ Solenoid pump︱ Electromagnets)

1.Size: ￠60mm*H30mm

Electromagnets-sucker︱Tubular Sucker Solenoids︱Non-contacting type Sucker Solenoids

2. Service life: Ninety million times (Energized: 2s, De-energized: 2s)

Basic Parameters of the Electromagnets
No. Name Result
1 Operating Voltage 12~220V,DC
2 Dielectric Strength AC1200 (50/60HZ) 1s (10mA)
3 Environment Temp. -10℃~180℃
4 Temp. RIse DC24V, below 70℃

3. Performance:

1) With compact tubular design, magnetic shell, sealing structure

2) The end surface can produce suction after electrify

3) Has good aggregation and binding effect for the magnetic field

4) The metal parts are done for coating treatment, high adaptability to environment

5) The magnetizer was done for demagnetization by vacuum heat treatment, can reduce the hysteresis effect to minimum.

6) Excellent physical performance and service life

4. Application:

It is mainly used in binding machine and robot and so on.

How to select the Electromagnets-sucker & Sucker Solenoids ?

1. How much are the stroke of Sucker Solenoids ?

2. How much are the force requirements of Sucker Solenoids ?

3. How long are the power-on time of Sucker Solenoids ?

4. How long are the power-off time of Sucker Solenoids ?

5. How are the working environment of Sucker Solenoids ?

6. Which are the operating voltage of Sucker Solenoids ?

7. What are the power supply of the Sucker Solenoids ?

Instructions:

In case you cannot find the right product for your application within our standard products, we are happy to adapt existing design with respect to electrical or mechanical properties or develop completely new products for you.
