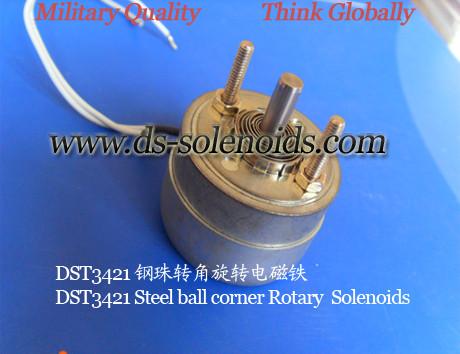

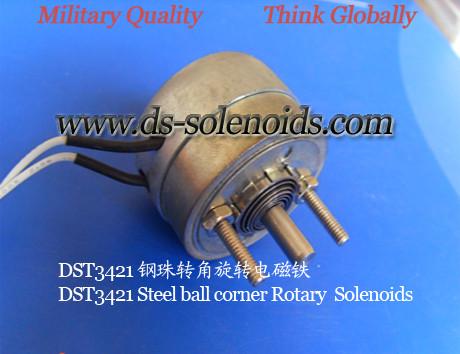

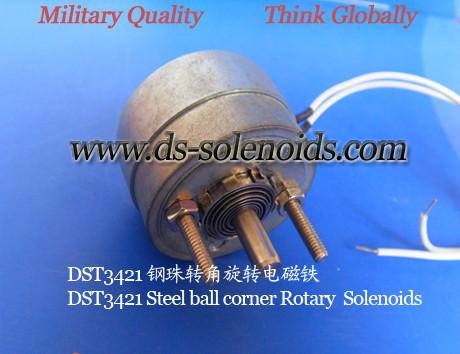

Rotary Solenoids︱Steel ball corner Rotary Solenoids︱Mono-stable Rotary Solenoids︱Industial sorting equipments Rotary Solenoids---- DST3421 (Solenoid Valve︱Solenoid pump︱Electromagnets)

1. Main size: Diameter—34mm, Length—21mm

2. Life: 1.8 million times (Energized: 2s, de-energized: 2s)

3. Feature:

1) Single stable Solenoids

2) Belongs to steel ball corner Rotary Solenoids, it is a special structure which converts the traditional electromagnetic rectilinear motion to angular rotation.

3) Has some axial displacement

4. Advantage:

1) Simple structure

2) Low cost

3) Stronger torque

4) Unique slope groove was done for hardening treatment

5) High service life

6) Dust-proof

7) High adaptability to environment

5. Application:

It is mainly used in industrial sorting equipments under the poor operating environment, such as sewing machines.

The applications of Solenoids & Electromagnets:

1. Civil automatic system:

Coin-operated games, Electric toys, Pill- ball machine, Tape recorder, Vide reorders, Electronic organ, Coffee machine, Refrigerator, Dish washer, Air conditioner, Coin-operated telephones, Health equipment, Water dispenser, Cash register, Automatic door

2. Office automatic system:

Self-checkout counters, Change machines, Computer equipment, Time clock

3. Industry automatic Control system:

Auto parts, Auto door lock, Safety belt lock, Parking equipment, Car electromagnetic valve, Packaging machine, Textile machinery

4. Top industry automation:

Aerospace and Aviation, Precision products

5. Other field:

Robot, Farming equipment, Stamping equipment, Fire prevention, Alarm, Saving water electromagnetic Valve, Medical equipment

Technical Considerations for selecting Rotary solenoids :

1. How much is the rotation angle of the Rotary solenoid?

2. How much is the holding force requirements of the Rotary solenoid ?

3. How long is the power-on time of the Rotary solenoid ?

4. How long is the power-off time of the Rotary solenoid ?

5. How is the working environment of the Rotary solenoid?

6. How much is star torque of the Rotary solenoid?

7. What is the power supply of the Rotary solenoid ?

8. Which is the rotation direction of the Rotary solenoid?

Instructions:

Our Solenoids & Electromagnets are “high performance” products designed for industrial applications although in principle they are simple.

In case you cannot find the right product for your application within our standard products we are happy to adapt existing design with respect to electrical or mechanical properties or develop completely new products for you.
