Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DST3019
Description

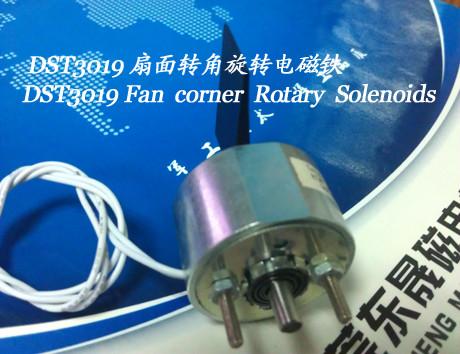

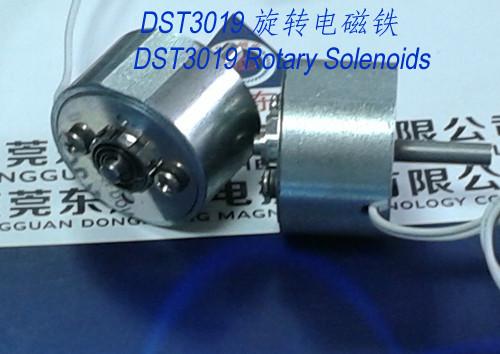

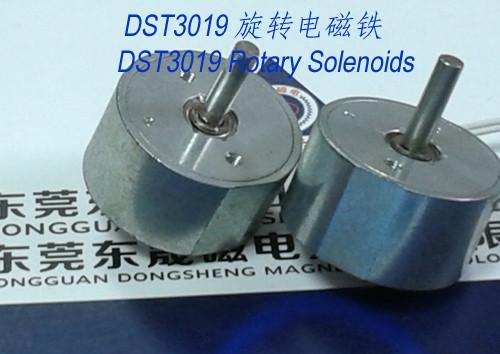

Rotary Solenoid︱Single stable Solenoid︱Fan corner Rotary Solenoid︱Industry Sorting Rotary Solenoids----DST3019 (Solenoid Valve︱Solenoid pump︱Electromagnets)

1. Main Size: Diameter—30mm, Length—19mm

Rotary Solenoids︱Monostable Solenoid︱Fan corner Rotary Solenoids︱Filament sorter Solenoids

2. Service life: 1.8 million times (Energized: 1s, De-energized: 3s)

General Specifacations of the Rotary Solenoids
No. Name

Result
1 Operating Voltage

6~48V,DC
2 Dielectric Strength

AC1000V(50/60Hz) 1s(10mA)
3 Power

7W
4 Working Temp.

-10℃~180℃
5 Temp. Rise

DC24V, below 65℃
6 Duty Cycle

ED 25%
7 Torque

0.3N

3. Feature:

1) Fan corner design

2) Single stable Rotary Solenoids

3) No axial movement and crosswise movement

4) Plug-in mounting screw

5) Frame type switch

6) High service life

7) Stable operation

8) High adaptability to environment

4. Application:

It is special used for industrial automatic sorting equipments with discharging.

How to select Rotary solenoid?

1. How much is the holding force/ start torque of the Rotary Solenoid?

2. How much is the duty cycle of the Rotary Solenoid?

On time / off time ratio

3. How is the working environment of the Rotary Solenoid?

Ambient temperature / wet or dry / clean or dusty/ vibration / etc.

4. What is the power supply of the Rotary Solenoid?

Voltage / AC or DC

5. Which is the rotation direction of the Rotary Solenoid?

6. How much is the rotation angle of the Rotary Solenoid?

Instructions:

The Solenoid&Electromagnet is a non-standard component, 100% ODM or OEM is welcome too, just feel free to contact us.

The more you tell us, the best we can do.
