Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DSO1632
Description

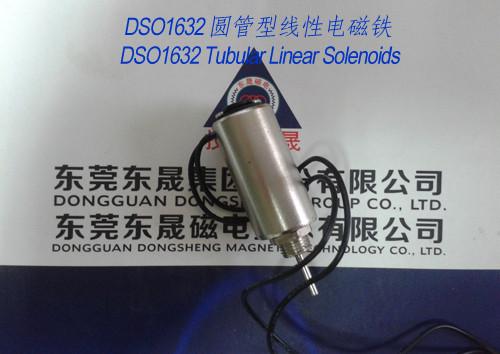

Linear Solenoids︱Tubular Solenoids︱Push-Pull Solenoids︱Closed Frame Linear Solenoids----DSO1632 ( IR-CUT︱Solenoid Valve︱Electromagnets︱Solenoid Pump)

1. Main size: D16mm, L32mm

Linear Solenoids︱Tubular Solenoids︱Push-Pull Solenoids

2. Performance:

1) With cylinder shape design

2) Belongs to closed frame Linear Solenoids

3) Operation: Push or Pull

3. Working voltage: DC3~48V

4. Working environment temperature: -10℃~180℃

5. Withstanding voltage: between the coil and the framework AC1200 (50/60HZ) I seconds (10mA)

6. Temperature rise: below 65℃

7. Service life: Ten million times (Energized: 2s, De-energized: 2s)

8. Advantage:

1) Compact structure

2) Long stroke

3) Long service life

4) Flexible motion, rapid response

5) Durable in use

9. Application:

It is mainly used in binding machine, keyboard testing machine and other automatic control system.

How to select the Linear Solenoids &Tubular Solenoids?

1.How long is the stroke movement?

Travel in mm / inches

2. How much is the force requirements?

3. How much is the duty cycle?

On time / off time ratio

4.How is the working environmentof the Linear Solenoid?

Ambient temperature / wet or dry / clean or dusty/ vibration / etc.

5. What is the power supply of the Linear Solenoid?

Voltage / AC or DC

6. What is the installation method?

Space envelope / mounting preference / plunger design

Instructions:

Our Solenoids & Electromagnets are “high performance” products designed for industrial applications although in principle they are simple.

In case you cannot find the right product for your application within our standard products we are happy to adapt existing design with respect to electrical or mechanical properties or develop completely new products for you.
