Specifications
Place of Origin :
China
Brand Name :
Dongsheng
Certification :
The Third Party
Model Number :
DST2525
Description

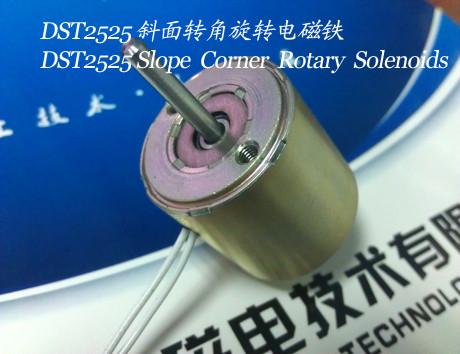

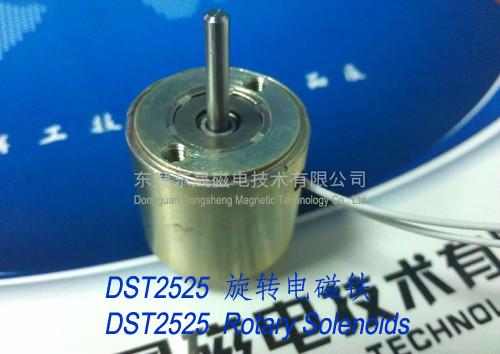

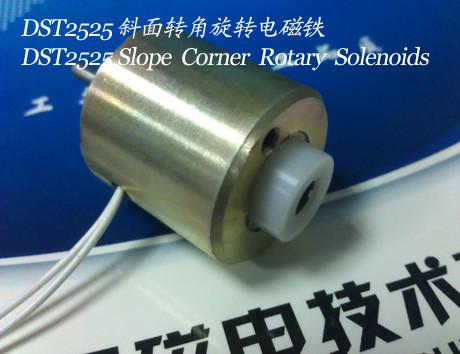

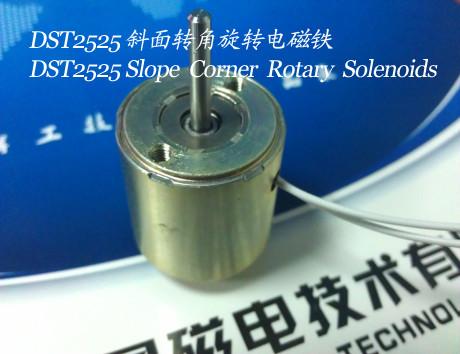

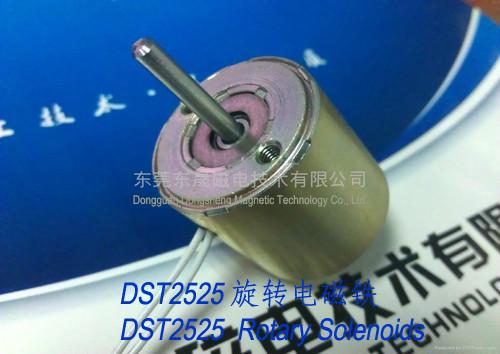

Rotary Solenoids︱Single stable Rotary Solenoids︱Slope corner Rotary Solenoids︱Filament sorting Rotary Solenoids︱Optical equipments Rotary Solenoids ----DST2525 (Solenoid Valve︱Solenoid pump︱Electromagnets︱ IR-CUT)

1. Main size: D25mm, L25mm

Slope corner Rotary Solenoids ︱Monostable Rotary Solenoids︱Optical equipment Solenoids

2. Feature:

1) It is a kind of slope corner structure which transforms the traditional electromagnetic rectilinear motion to angular rotation.

2) Single stable Rotary Solenoids

3) No axial linear shaft movement

4) Operation: Counter-clockwise or clockwise

General Specifications of the Rotary Solenoids
No. Name

Result
1

Operating Voltage

 6~48V,DC
2 Dielectric Strength

AC1200V(50/60Hz)1s(5mA)
3 Power

6W
4 Working Temp.

-10℃~180℃
5 Temp. Rise

DC25V,below 70℃
6 Torque

0.4N

3. Service life: 1.5 million times (Energized: 2s, De-energized: 2s)

4. Advantage:

1) Responsive, reliable action

2) Accurate rotation angle

3) High service life

4) High adaptability to environment

5. Application:

It is used in filament sorting equipment, optical equipments, medical equipments and etc.

Instructions:

In case you cannot find the right solenoids for your application within our standard products, we are happy to adapt existing design with respect to electrical or mechanical properties or develop completely new solenoids for you.
