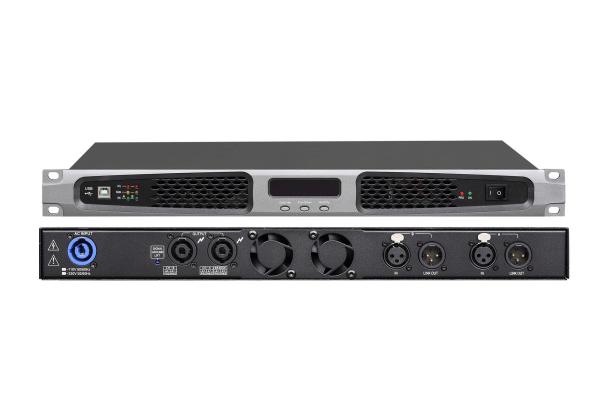

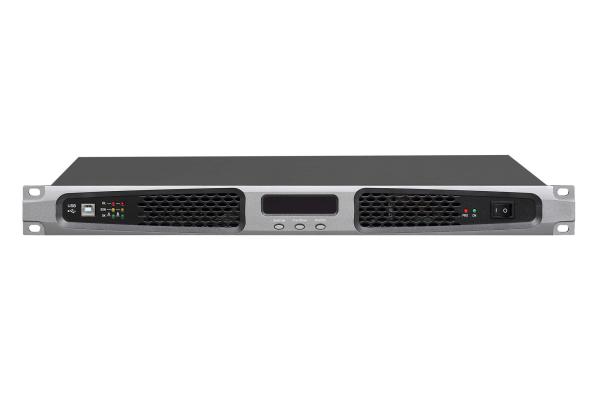

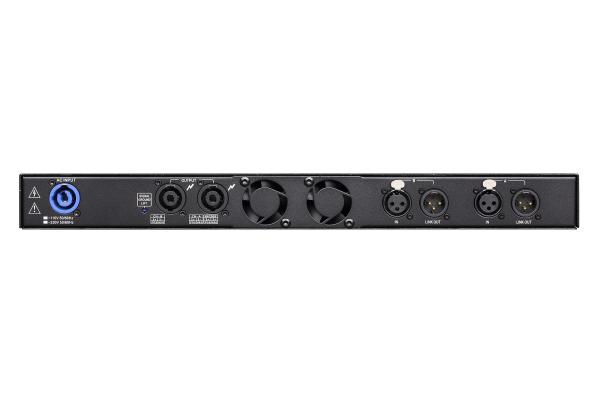

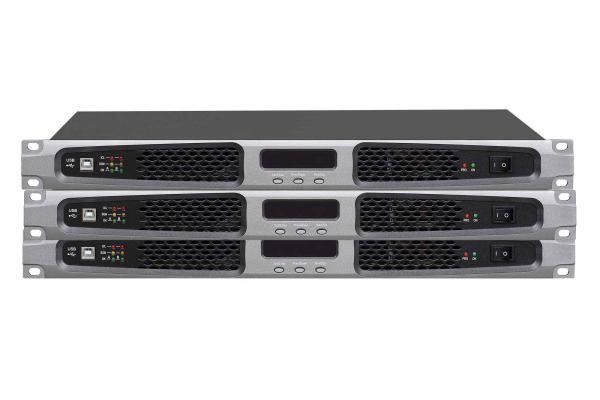

250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp
250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp
250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp
250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp
250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp
250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp
250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp
250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp
Specifications
Brand Name :
FHB Audio
Model Number :
T2250
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
2 Set
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Set per Month
Delivery Time :
1-10Set: 5-7day ;10-100Set:10-5Days
Packaging Details :
Standard packaging;
Products Name :
Digital Power Amplifier
Keyword :
Digital Power Amplifier,8CH power amplifier
Model No. :
T2250
Channel :
2 channel
Power :
2 X 250W
Input Connector :
XLR Input
Output Connector :
SPEAKON output
Material :
Aluminum
Certificate :
CE,ROHS
Application :
Conference,Education,Hotel
Color :
Black
Net Weight :
5.5Kg
Warranty :
2 Years
Description

Professional 250W*2 power amp 1U class d sound digital power

Our other hot products Recommend:

Dante Products Line:

250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp

Speaker Management Processor:

250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp

Digital Power Amplifier

250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp

Description:

T series is a power amplifier for acoustic vibration applications, with two in and two out independent dual channel mode, each channel containing a power amplifier, Whale series features balanced input and output and high power/quality/trust/stability.

The built-in protection circuit provides automatic protection against overload, short circuit and overheating, in which case the signal will be cut off and automatically restored.The cooling fan adopts advanced stepless variable speed circuit control, the rear plate is equipped with double channel, single channel output conversion, 1U design, the body is light, easy to carry and install

Main Features:

  • Super - capacity switching power amplifier
  • Automatic limiting output, short circuit, overload, overtemperature, startup delay and other protection functions
  • Power amplifier with delay start system, protect the speaker from impact and damage
  • The rear plate is equipped with double channel, single channel, bridge output conversion
  • Balanced input interface
  • SPEAKON Output connector
  • 483MM standard frame structure
  • Power amplifier part switch power supply part has a separate cooling system
  • The cooling fan is controlled by advanced stepless variable speed circuit
  • 1U design, light body, easy to carry and install

Specification:

Model No. T-2250
Output (8Ω ,1kHz) 2x250W
Output (4Ω ,1kHz) 2x400W
Total distortion 1%(8Ω,250W)

1/8 power consumption for rated operation

 80W
Frequency response 20Hz~20kHz ±3dB
Input sensitivity +4dB * (1.23V)
input impedance 10kΩ(Balanced)
SNR(Signal to Noise Ratio) ≥80dB
Connector Input (ch1-2):XLR input connector;Output (ch1-2):SPEAKON output;Power supply: AC power supply
Supply voltage

AC110~120V,50/60Hz AC220~240V,50/60Hz
Temperature 0~50℃
Humidity <90%RH
Size 483 x 45 x 355 (mm)
Net Weight 3.40kg


Optional 2CH,4CH.:

250W*2 Class D Audio Amplifiers XLR Input / 1U Class D Power Amp
