Professional Matrix Dante DSP Processor 16 Channel 16*16 Web Control
Professional Matrix Dante DSP Processor 16 Channel 16*16 Web Control
Professional Matrix Dante DSP Processor 16 Channel 16*16 Web Control
Professional Matrix Dante DSP Processor 16 Channel 16*16 Web Control
Professional Matrix Dante DSP Processor 16 Channel 16*16 Web Control
Professional Matrix Dante DSP Processor 16 Channel 16*16 Web Control
Specifications
Brand Name :
FHB Audio
Model Number :
MX-1616D
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
2 Set
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Set per Month
Delivery Time :
1-10Set: 5-7day ;10-100Set:10-5Days
Packaging Details :
Standard packaging;GW:3.5KG/Set;5Set in one Carton(60*60*36cm);
Products Name :
Dante DSP
Keyword :
DSP Sound Processor,DSP Effect Proessor,DSP Audio Processor,DSP Audio Mixer
Model No. :
MX-1616D
Analog Channels :
16 input,16 output
Dante Channel :
16 input,16 output
Function :
Automatic mixing, AEC,ANC,AFS
DSP Chips :
Ti 456MHz FLOPS DSP
Software :
PC,Adorid,IOS,Ipad,Web control
Material :
Aluminum
Color :
Black
Application :
Conference,Education,Hotel
Warranty :
2 Years
Certificate :
CE,ROHS
Weight :
3Kg
Working Power Supply :
AC110V-220V,50Hz/60Hz
Description

Most Popular Professional Audio Processor 16 Channel Dante 16*16 Digital Mixer Audio Matrix

Main Features:

  • USB Background music playback and recording function
  • Support mobile phone, tablet control and distributed cloud control
  • DSP audio processing, built-in automatic mixer, feedback elimination(AFC), echo elimination(AEC), noise elimination (ANC) function
  • Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
  • Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
  • Full function matrix remix
  • Built-in automatic camera tracking function
  • Support for scenario presets；
  • Automatic memory protection when power off
  • 1U Whole aluminum chassis
  • Built in Dante Module

Professional Matrix Dante DSP Processor 16 Channel 16*16 Web Control

Description:

The MX-1616D audio processor is a freely designed audio processing and control system.It adopts advanced DSP processing technology, has a new automatic mixing, Feedback elimination, etc, targeted to solve various practical problems in the application scene.

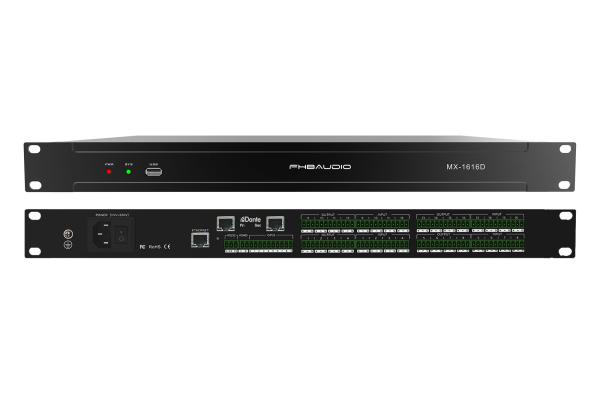

Professional Matrix Dante DSP Processor 16 Channel 16*16 Web Control

① Ground screw: The internal circuit of the equipment is grounded through this screw

② POWER interface: connect the 100~220V AC power supply, and a rocker switch.

③ Network control interface: debug and monitor the device by connecting to the network port.

④ RESET: Long press the reset button to restore factory Settings and restart the processor

⑤ RS232+ RS485+GPIO Control Interface: Connect control terminal or central control device to send and receive control command.

⑥ Dante network interface: For accessing Dante audio networks

⑦ Signal output interface: connection amplifier, active speaker and other equipment.

⑧ Signal input interface: connect the microphone, DVD and other equipment.

Specification:

Model No. MX-1616D
DSP Processing Ti 456MHz FLOPS DSP
Number of analog channels 16 Input + 16Output
Number of Dante channels 16 Input + 16 Output
Core Algorithm Automatic mixing, feedback elimination(AFC), echo elimination(AEC), noise elimination(ANC)
GPIO 8 ( Including input and output)
RS232/RS485 1
RJ45 control interface 1
USB Port 1
DANTE network interface 2
Simulated maximum gain 51dB
Digitalizing bit 24bit
Sampling Rate 48k
Frequency Response(20~20KHz) ±0.2dB
Total harmonic distortion + noise ＜0.003% @1KHz ,4dBu
Floor noise (A- weighted) -90dBu
Delay storage 2s
Analog input to output system delay 3ms
Input impedance (balance -type) 20KΩ
Output impedance (balance -type) 100Ω
Maximum Input Level +18dBu,balance
Maximum Output Level +18dBu,balance
Equivalent input noise EIN(20-20kHz,A-weighted). ≤-131dBU
Phantom power (per input) 48V
Input common mode rejection,60Hz 70dB
Channel Isolation,1kHz 104dB
Dimensions (W*D*H) 482*258*45(mm)
Weight 3Kg
Power Consumption <40W
Operating Temperature -10 - 50℃
Working Power Supply AC110V-220V,50Hz/60Hz
