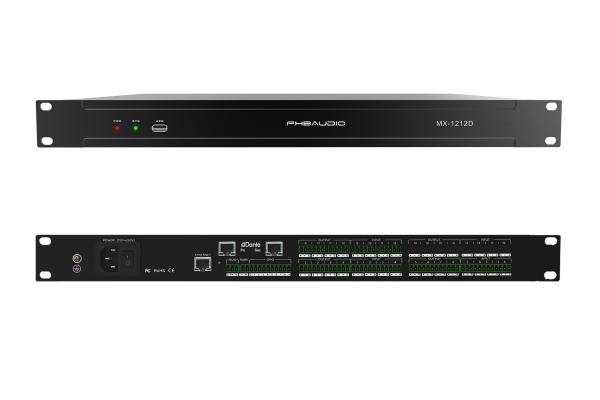

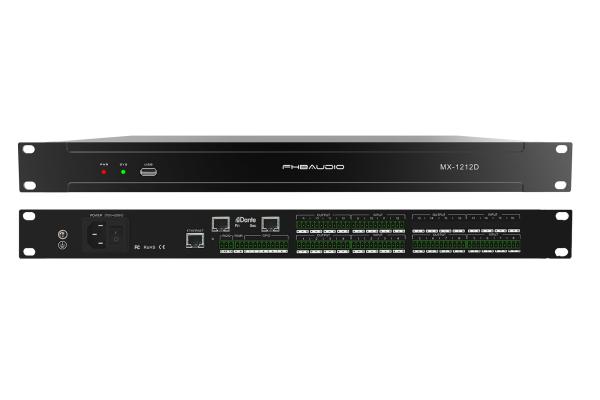

12X12 Dante DSP Processor IOS Andorid Web Control Professional Network
12X12 Dante DSP Processor IOS Andorid Web Control Professional Network
12X12 Dante DSP Processor IOS Andorid Web Control Professional Network
12X12 Dante DSP Processor IOS Andorid Web Control Professional Network
12X12 Dante DSP Processor IOS Andorid Web Control Professional Network
12X12 Dante DSP Processor IOS Andorid Web Control Professional Network
Specifications
Brand Name :
FHB Audio
Model Number :
MX-1212D
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
2 Set
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Set per Month
Delivery Time :
1-10Set: 5-7day ;10-100Set:10-5Days
Packaging Details :
Standard packaging;GW:3.5KG/Set;5Set in one Carton(60*60*36cm);
Products Name :
Dante DSP
Keyword :
DSP Sound Processor,DSP Effect Proessor,DSP Audio Processor,DSP Audio Mixer
Model No. :
MX-1212D
Number of analog channels :
12 input,12 output
Number of Dante channels :
12X12
DSP processing :
Automatic mixing, AEC,ANC,AFS
DSP Chips :
Ti 456MHz FLOPS DSP
Software :
PC,Adorid,IOS,Ipad,Web control
Material :
Aluminum
Sampling Rate :
48k
Application :
Conference,Education,Hotel
Warranty :
2 Years
Certificate :
CE,ROHS
Weight :
3Kg
Working Power Supply :
AC110V-220V,50Hz/60Hz
Description

Support IOS,Andorid,web control professional Network dante DSP digital audio matrix audio processor 12X12,16X16

Company Introduction:

FHB Audio was established in 2018,who is a technology-based enterprise integrating design, research and development, production, sales, and service, specializing in the production of digital signal processor, digital conference system, Dante products line, microphones, Digital Mixer, power amplifier etc., also can provide customers with a series of according to their requirements, mainly for conference, education, hotels and other application

The company has strong R&D technical strength and advanced production equipment, and has a complete product quality control system. From raw material input to cost delivery, all links are tested and quality tracked, so as to ensure reliable and stable quality.

12X12 Dante DSP Processor IOS Andorid Web Control Professional Network

12X12 Dante DSP Processor IOS Andorid Web Control Professional Network

Main Features:

  • USB Background music playback and recording function
  • Support mobile phone, tablet control and distributed cloud control
  • DSP audio processing, built-in automatic mixer, feedback elimination(AFC), echo elimination(AEC), noise elimination (ANC) function
  • Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
  • Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
  • Full function matrix remix
  • Built-in automatic camera tracking function
  • Support for scenario presets；
  • Automatic memory protection when power off
  • 1U Whole aluminum chassis
  • Built in Dante Module
  • Channel:12CH

12X12 Dante DSP Processor IOS Andorid Web Control Professional Network

Specification:

Model No. MX-1212D
DSP Processing Ti 456MHz FLOPS DSP
Number of analog channels 12 Input + 12Output
Number of Dante channels 12 Input + 12 Output
Core Algorithm Automatic mixing, feedback elimination(AFC), echo elimination(AEC), noise elimination(ANC)
GPIO 8 ( Including input and output)
RS232/RS485 1
RJ45 control interface 1
USB Port 1
RJ11 phone interface 0
DANTE network interface 2
Simulated maximum gain 51dB
Digitalizing bit 24bit
Sampling Rate 48k
Frequency Response(20~20KHz) ±0.2dB
Analog-to-digital dynamic range (A-weighted) 114dB
Digital-to-analog dynamic range (A-weighted) 120dB
Input to output dynamic range 108dB
Total harmonic distortion + noise ＜0.003% @1KHz ,4dBu
Floor noise (A- weighted) -90dBu
Delay storage 2s
Analog input to output system delay 3ms
Input impedance (balance -type) 20KΩ
Output impedance (balance -type) 100Ω
Maximum Input Level +18dBu,balance
Maximum Output Level +18dBu,balance
Equivalent input noise EIN(20-20kHz,A-weighted). ≤-131dBU
Phantom power (per input) 48V
Input common mode rejection,60Hz 70dB
Channel Isolation,1kHz 104dB
Dimensions (W*D*H) 482*258*45(mm)
Weight 3Kg
Power Consumption <40W
Operating Temperature -10 - 50℃
Working Power Supply AC110V-220V,50Hz/60Hz

Why choose FHB Audio Products?

  • Company: Innovative

FHB Audio is driven by innovation. We are continuously developing new technologies that provide time saving methods that benefit you and our dealer network. Our innovative solutions focus on everyday use cases and how our products can cut down installation times, reduce maintenance requirements, increase productivity, and provide you long-lasting reliability.

  • Wide & Deep Products Line

We provide over 200 audio & Video products, as well as a series of Dante products, such as Digital Signal processor, Digital microphone system,Dante signal processor, 2CH Dante AVUO,2CH Dante wall plate,4CH Dante box., Dante Bluetooth panel, Dante microphone, and Dante speaker etc…

Our industry-leading support team makes it easy for you to choose the right product and provide the right system solutions.

  • Professional & Fast Service,
  1. 24 hours online services to provide suggestions and solutions for customer.
  2. After-Sales Technical Support /Product Maintenance
  3. Wiring/Installation/Debugging Instruction
  • OEM/ODM Solutions

Professional System Designers to assist in product selection and system design to meet your specific needs.

12X12 Dante DSP Processor IOS Andorid Web Control Professional Network

  • Quality Assurance

Check Products one by one, to make sure all products are working excellent quality..
