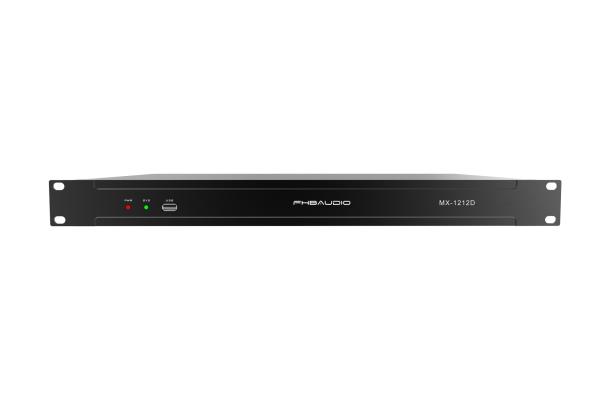

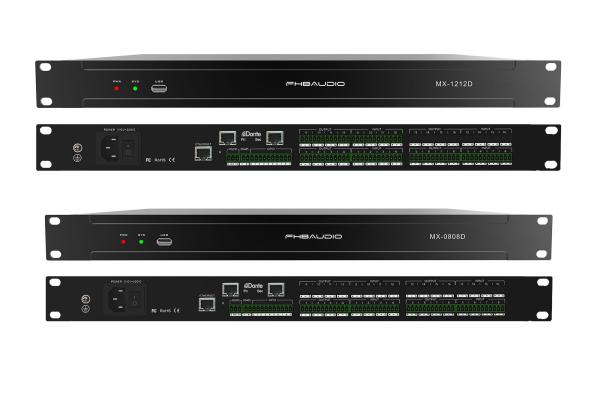

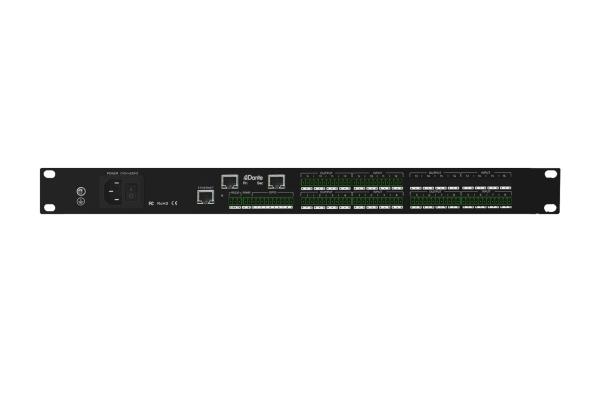

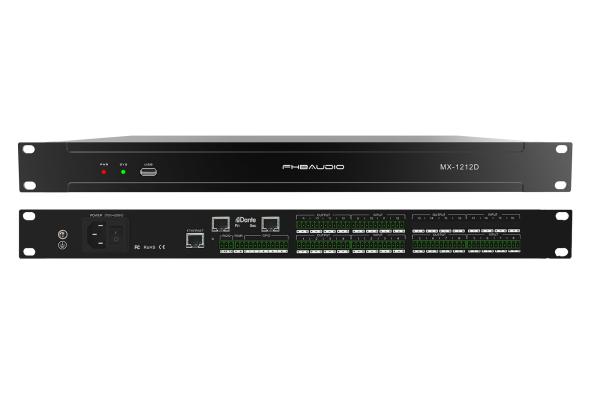

12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
Specifications
Brand Name :
FHB Audio
Model Number :
MX-1212D
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
2 Set
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Set per Month
Delivery Time :
1-10Set: 5-7day ;10-100Set:10-5Days
Packaging Details :
Standard packaging;GW:3.5KG/Set;5Set in one Carton(60*60*36cm);
Products Name :
Dante DSP
Keyword :
DSP Sound Processor,DSP Effect Proessor,DSP Audio Processor,DSP Audio Mixer
Model No. :
MX-1212D
Analog Channels :
12 input,12 output
Dante Channel :
12 input,12 output
Function :
Automatic mixing, AEC,ANC,AFS
DSP Chips :
Ti 456MHz FLOPS DSP
Software :
PC,Adorid,IOS,Ipad,Web control
Material :
Aluminum
Input to output dynamic range :
108dB
Application :
Conference,Education,Hotel
Total harmonic distortion + noise :
＜0.003% @1KHz ,4dBu
Operating Temperature :
-10 - 50℃
Power Consumption :
<40W
Weight :
3Kg
Working Power Supply :
AC110V-220V,50Hz/60Hz
Description

Built in Dante Moudle 12X12 digital audio matrix mixer network IP audio processor for large system

Description:

The MX-1212D audio processor is a freely designed audio processing and control system.It adopts advanced DSP processing technology, has a new automatic mixing, Feedback elimination, etc, targeted to solve various practical problems in the application scene.

Main Features:

  • USB Background music playback and recording function
  • Support mobile phone, tablet control and distributed cloud control
  • DSP audio processing, built-in automatic mixer, feedback elimination(AFC), echo elimination(AEC), noise elimination (ANC) function
  • Input per channel:Front stage amplifier, signal generator, expander, compressor, 5 stage parameter equalization
  • Output per channel:31 Section diagram equalizer, delay device, frequency divider, limiter
  • Full function matrix remix
  • Built-in automatic camera tracking function
  • Support for scenario presets；
  • Automatic memory protection when power off
  • 1U Whole aluminum chassis
  • Built in Dante Module

Specification:

Model No. MX-1212D DSP Processing Ti 456MHz FLOPS DSP
Number of analog channels 12 Input + 12Output Number of Dante channels 12 Input + 12 Output
Core Algorithm Automatic mixing, feedback elimination(AFC), echo elimination(AEC), noise elimination(ANC) GPIO 8
RS232/RS485 1 RJ45 control interface 1
USB Port 1 DANTE network interface 2
Simulated maximum gain 51dB Digitalizing bit 24bit
Sampling Rate 48k Frequency Response(20~20KHz) ±0.2dB
Analog-to-digital dynamic range (A-weighted) 114dB Digital-to-analog dynamic range (A-weighted) 120dB

Software:

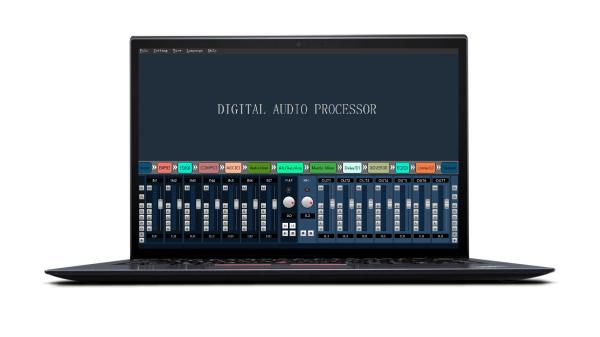

  • ​Our designed PC version control software is the best tool for you to monitor and operate the digital audio processor, which can be used to edit and store scenes (such as meeting mode, artistic performance mode, concert mode, etc.) according to the acoustic characteristics of different functions. The system built-in lock screen function, It can effectively avoid the occurrence of wrong operation.

12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
  • The digital audio processor comes with B/S architecture server, which is accessed through web browser, not only realizing channel control and scene selection, but also directly providing download links of PC client and platform components.

12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System
  • Installed on tablet and mobile phone APP client, sedate and simple design style, panoramic function menu, with fast operation bar, It can be very convenient for the processor to carry out various operations. Everything just to give you a better user experience.

12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System

Company Introduction:

FHB Audio was established in 2018,who is a technology-based enterprise integrating design, research and development, production, sales, and service, specializing in the production of digital signal processor, digital conference system, Dante products line, microphones, Digital Mixer, power amplifier etc., also can provide customers with a series of according to their requirements, mainly for conference, education, hotels and other application

The company has strong R&D technical strength and advanced production equipment, and has a complete product quality control system. From raw material input to cost delivery, all links are tested and quality tracked, so as to ensure reliable and stable quality.

Through unremitting efforts, the scale of FHB has continued to expand, and our company has gathered a group of high-quality, first-class audio technology professionals. So far, our team has more than 100 employees, the product line has increased to 3, and the business is sold all over the world.and have obtained CE, ROHS certificates.

12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System

12X12 Dante DSP Processor Network IP , Digital Matrix Mixer For Large System

Check Products one by one, to make sure all products are working excellent quality..
