Specifications
Brand Name :
FHB Audio
Model Number :
MX-1004
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
2 Set
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Set per Month
Delivery Time :
1-10Set: 5-7day ;10-100Set:10-5Days
Packaging Details :
Standard packaging;
Products Name :
Digital Signal Processor
Keyword :
DSP Sound Processor,DSP Effect Proessor,DSP Audio Processor,DSP Audio Mixer
Model No. :
MX-1004
Analog Channels :
4 input,4output
Function :
Automatic mixing, AEC,ANC,AFS
DSP Chips :
Ti 456MHz FLOPS DSP
Software :
PC
Material :
Aluminum
Color :
Silver
Application :
Conference,Education,Hotel,classroom
Warranty :
2 Years
Certificate :
CE,ROHS
Weight :
1.2KG
Working Power Supply :
DC 12V
Description

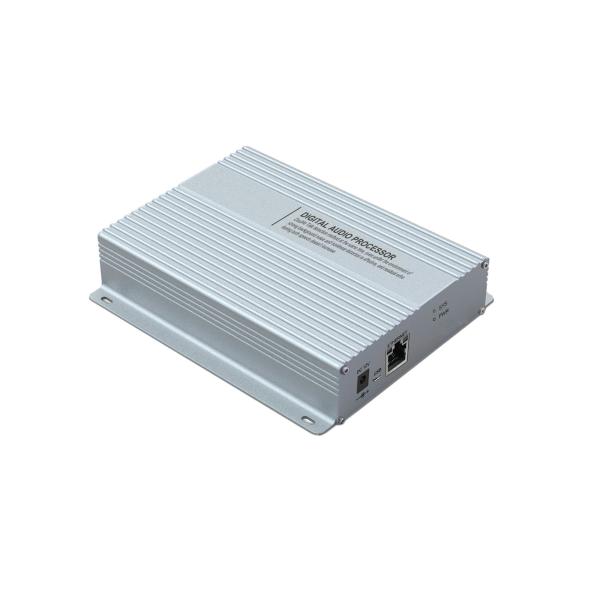

CE ROHS Listed Cost Effective 10in 4out Mini DSP Digital Audio Processor With AEC AFC For Classroom

Main Features:

  • Analog input channel: 10
  • Analog output channel: 4
  • AEC,ANC,AFC,Auto mixer
  • Support PC Software
  • Support Mic and line input
  • DC12V Power supply
  • Easy install
EIN (A weight) ≤-110dBu
Frequency response 20 - 20K Hz,±0.5dB
Sampling

48KHz,MIC channel: 0dBu LINE channel: 18dBu

Maximum output level (balance)

MIC channel: 18dBu LINE channel: 18dBu

Maximum input level (balance)

MIC channel: 0dBu LINE channel: 18dBu

Output impedance (balance -type) 100 Ω
Sampling Rate 48KHZ
A/D-D/A Transverter 24Bit
Phantom power +48 VDC
THD +N

MIC channel: 0.005%@4dBu LINE channel: 0.01%@4dBu

Maximum Gain 40dB
Input impedance 20K Ω
Frequency Response (20Hz~20kHz @ +4dBu): ±0.2dB
THD +N (1kHz @ +4dBu): < 0.02%
Maximum input level 18dBu
Maximum gain -1dB
Channel isolation 90dB
Noise floor (A- weighted) <-88dBu
Working Temperature -10-50℃
Working Power Supply DC12V
Power Consumption <24W
Size 180*168*42(mm)


Software:

Silver 48 Bit Audio Digital Processor 10 In 4 Out Mini With AEC AFC
