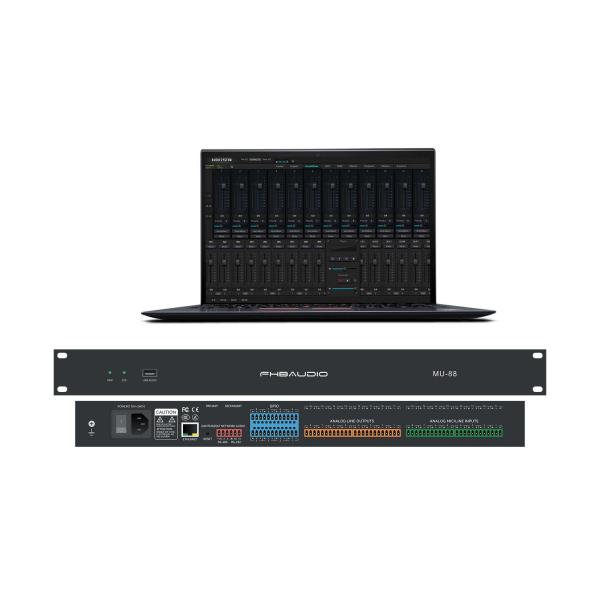

Customized Interfaces Digital DSP Audio Processor 8CH With Camera Tracking
Customized Interfaces Digital DSP Audio Processor 8CH With Camera Tracking
Customized Interfaces Digital DSP Audio Processor 8CH With Camera Tracking
Customized Interfaces Digital DSP Audio Processor 8CH With Camera Tracking
Specifications
Brand Name :
FHB Audio
Model Number :
MU-88
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
2 Set
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Set per Month
Delivery Time :
1-10Set: 5-7day ;10-100Set:10-5Days
Packaging Details :
Standard packaging;GW:3.5KG/Set;5Set in one Carton(60*60*36cm);
Products Name :
Digital Signal Processor
Keyword :
DSP Sound Processor,DSP Effect Proessor,DSP Audio Processor,DSP Audio Mixer
Model No. :
MU-88
Analog Channels :
8 input,8 output
Function :
Automatic mixing, AEC,ANC,AFS
DSP Chips :
ADI SHARC 21489@450 MHz SIMD
Software :
PC,
Material :
Aluminum
Color :
Black
Application :
Conference,Education,Hotel
Digitalizing bit :
24bit
Input gain :
0/3/6/9/12/15/18/21/24/27/30/33/36/39/42/45/48dBu
Weight :
3Kg
Working Power Supply :
AC110V-220V,50Hz/60Hz
Description

Provides Customized Operation Interfaces 8CH AEC Audio Processor With Camera Tracking​

Customized Interfaces Digital DSP Audio Processor 8CH With Camera TrackingMain Features:

  • Professional audio processor support 8way analog input and output a,It provides low delay and high fidelity audio signal transmission under the support of high broadband network.
  • Processor :ADI SHARC 21489@450 MHz SIMD;
  • DSP processing capacity :400 MIPS, 1.6 GFLOPS;
  • Provide 8 devices for online operation at the same time;
  • Built-in one in one out USB sound card, support music playback, recording and soft video conference (such as: ZOOM, Tencent conference, Dingding conference, etc.);
  • Bus type AEC, tail time: 512ms, convergence rate: 60dB/S, echo cancellation amplitude: 60dB;
  • Independent channel AFC (feedback suppression), using notch algorithm, sound transmission gain increase amplitude: 10dB;
  • Noise suppression (ANS), signal-to-noise ratio increased by 18dB
  • Dodge device (Ducker);
  • Noise gain compensator (ANC)
  • Gain sharing automatic mixing (AMC), Gate Mixer;
  • 12 period of British equilibrium parameter, provides 5 kinds of filter options: Parametric, Lowshelf, Highshelf, Lowpass, Highpass;
  • Provides customized operation interfaces for terminal users. A maximum of 30 devices can be managed on one interface.
  • Support camera tracking;
  • With 8-way GPIO;
  • With the central control function, support RS232, RS485, UDP three control modes, can be the system power, signal switching, environmental control, audio control and other overall control, to achieve a key to open the system required functions.
  • 1U Whole aluminum chassis

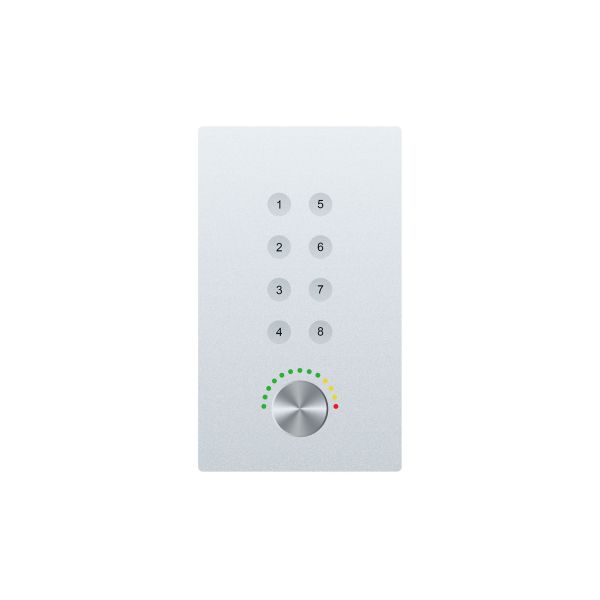

Our Control Panel:

Customized Interfaces Digital DSP Audio Processor 8CH With Camera Tracking

Customized Interfaces Digital DSP Audio Processor 8CH With Camera Tracking

Specification:

Model No. MU88
DSP Processing ADI SHARC 21489@450 MHz SIMD
Number of analog channels 8 Input +8 Output
Core Algorithm Automatic mixing, feedback elimination(AFC), echo elimination(AEC), noise elimination(ANC)
GPIO 8 ( Including input and output)
RS232/RS485 1
RJ45 control interface 1
USB Port 1
Input gain 0/3/6/9/12/15/18/21/24/27/30/33/36/39/42/45/48dBu
Digitalizing bit 24bit
Sampling Rate 48k
Frequency Response(20~20KHz) ±0.3dB
Phantom power +48V/10mA max
The Max level +18dBu
Input to output dynamic range 110dB
output to input dynamic range 112dB
Total harmonic distortion + noise ＜-94dB@4dBu
Floor noise (A- weighted) -90dBu
System delay <3ms
Input impedance (balance -type) 5.4KΩ
Output impedance (balance -type) 600Ω
Weight 3Kg
Size 482*260*45mm
Working Power Supply AC110V-220V,50Hz/60Hz


Software:

Customized Interfaces Digital DSP Audio Processor 8CH With Camera Tracking

FAQ:

Q1: Are you manufacturer or trade company?
A: We are manufacturer,which located in Shenzhen, Guangdong, China.

Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client requirements

Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.

Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Airports, Parliaments, Education institutes, Hotel, Private corporate conference hall etc,.

Q5: What’s the delivery time?

A:Sample order: During 5days,Bulk order:10-15days
