PoE Power Supply Dante AVIO Analog Input 2 Channel Analog Input Adapter
PoE Power Supply Dante AVIO Analog Input 2 Channel Analog Input Adapter
PoE Power Supply Dante AVIO Analog Input 2 Channel Analog Input Adapter
PoE Power Supply Dante AVIO Analog Input 2 Channel Analog Input Adapter
PoE Power Supply Dante AVIO Analog Input 2 Channel Analog Input Adapter
PoE Power Supply Dante AVIO Analog Input 2 Channel Analog Input Adapter
Specifications
Brand Name :
FHB Audio
Model Number :
DI22
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
2 Set
Price :
USD
Payment Terms :
T/T, Western Union
Supply Ability :
10000 Set per Month
Delivery Time :
1-10Set: 5-7day ;10-100Set:10-5Days
Packaging Details :
Standard packaging;
Products Name :
2CH Analog Dante adapter
Keyword :
Dante Audio Interface,2CH Dante AVIO
Model No. :
DI22
Analog Channels :
2 input,2 output
Dante Channel :
2 input,2 output
Function :
Analog in Dante Adapter
Material :
Aluminum
Frequency response :
Frequency response
Application :
Conference,Education,Hotel
3 pin XLR F/M :
2
Certificate :
CE,ROHS
Net Weight :
0.25Kg
Dynamic range :
> 100dB
Working Power Supply :
PoE Power Supply
Description

PoE power supply AVIO Dante 2 Channel Analog Input Adapter dante audio

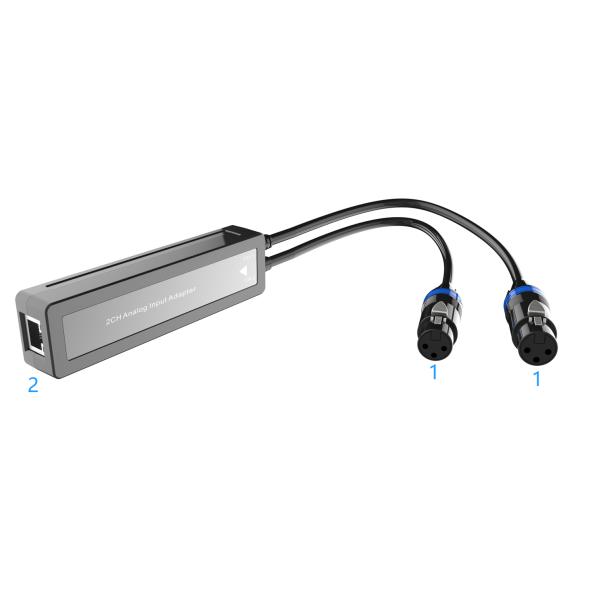

DI22 System View:

PoE Power Supply Dante AVIO Analog Input 2 Channel Analog Input Adapter

PoE Power Supply Dante AVIO Analog Input 2 Channel Analog Input Adapter

①DI 22 analog audio input port: 3Pin XLR Port

② DI 22 Dante network output port: RJ45

Main Features:

This series product is mainly composed of DI22 and DO22,DU22 products.

  • DI22 supports 2 channels of analog signal input, transfer to Dante digital signal output;
  • Compact design, easy to use, support hot plug.
  • Conversion between analog audio signals and Dante digital audio signals is easy and free.
  • Built-in 2 input or 2 output audio channels.
  • Extend audio, control, Ethernet, and power with a reasonably priced cable.
  • One network cable instead of multiple analog or multi-core cables, it is economical, efficient and versatile.
  • Extend uncompressed high quality audio signals with near-zero dela
  • Safe and reliable transmission of high-quality two-channel audio
  • Supports Dante software, which can easily expand and configure network and audio routing.
  • It supports PoE and conforms to the line power supply function of ieee 802.3af.

Other Model:

  • DO22 supports Dante digital signal input, transfer 2 analog signal output, Power supply for this product must be provided by Ethernet (PoE) switch or router.
  • DU22 uses USB power supply to support USB signal input and transfer to Dante signal output,and Dante signal input to USB signal output of the dual channel signal conversion
  • DA22 supports Dante and AES digital audio interface protocol, which can realize two-way transmission of digital audio signals via XLR cable.


Specification:

Model No.

DI22

DO22

DU22

DA22

Function

 DI22 supports 2 channels of analog signal input, transfer to Dante digital signal output; DO22 supports Dante digital signal input, transfer 2 analog signal output, Support USB signal and Dante signal conversion Support Dante and AES digital audio interface protocol transmission
Channel

2 ch analog Inputs,

2 ch Dante output

2 ch Dante intput

2 ch analog outputs,

1 ch USB intput

1 ch Dante output

 -
Maximum signal level (balanced) +18dBu / +4dBu / 0dBu +18dBu / +4dBu / 0dBu - -
0dBV /-10dBV 0dBV /-10dBV - -
Frequency response 20Hz to 20kHz (-/+0.5dB) 20Hz to 20kHz (-/+0.5dB) - -
Bit depth 24 bit 24 bit 24 bit 24 bit
Impedance

20k Ohm(Balanced);

10k Ohm(unbalanced)

 110 Ohm(Balanced) - -
Dynamic Range > 100dB > 100dB -
SNR(Signal to Noise Ratio) > 100dB > 100dB - >135db
THD < 0.01%(+4dBu) < 0.01%(+4dBu) - -
Connector

RJ45 and 1 XLR-F

RJ45 and 2 XLR-F

RJ45 and 1 XLR-M

RJ45 and 2 XLR-M

 RJ45 and USB A Type RJ45, 1 XLR-M, 1 XLR-F
Power Supply Class 1 802.3af PoE Class 1 802.3af PoE USB -
Sampling rate 44.1,48,96 kHz 44.1,48,96 kHz 48 kHz 48 kHz
Latency Depending on the configuration on the device or network, 1 ms(default)
Network transmission Dante IP AES67 RTP audio
USB - - USB 2.0 -

Device Information
Weight Gross Weight :0.75KG
Dimension 4.92 x 1.30 x 1.10 inch/ 125 x 33 x 28 mm (L x W x H)
Power consumption 2 Watts
Operation temperature 0~50OC [32~122F]
Storage temperature -20~60OC [-4~140F]
Relative humidity 20~90% RH [no condensation]

Other Products recommend:

2CH Dante Wall Plate

PoE Power Supply Dante AVIO Analog Input 2 Channel Analog Input Adapter

FAQ:

Q1: Are you manufacturer or trade company?
A: We are manufacturer,which located in Shenzhen, Guangdong, China.

Q2: Do you offer OEM&ODM service?
A: Yes, We can provide OEM or ODM Solution depends on client requirements

Q3: What's the quality standard of your products?
A: Our products has approved CE, ROHS certification.

Q4: Which place will use FHB equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Airports, Parliaments, Education institutes, Hotel, Private corporate conference hall etc,.

Q5: What’s the delivery time?

A:Sample order: During 5days,Bulk order:10-15days

  • Quality Assurance

Check Products one by one, to make sure all products are working excellent quality..
