CE ROHS certificates 2CH XLR analog and Dante Audio Transmission Wall Plate

Our Dante Interface products line:
- 2CH Dante AVIO:DI22,DO22,DU22
- 2CH Dante Wall Plate
- 4CH Dante BOX
- 8/16CH Dante Interface

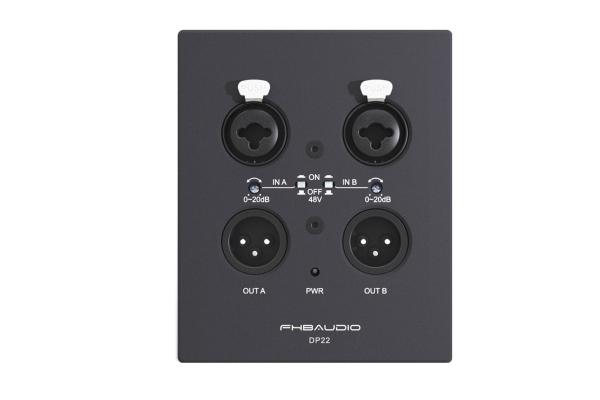

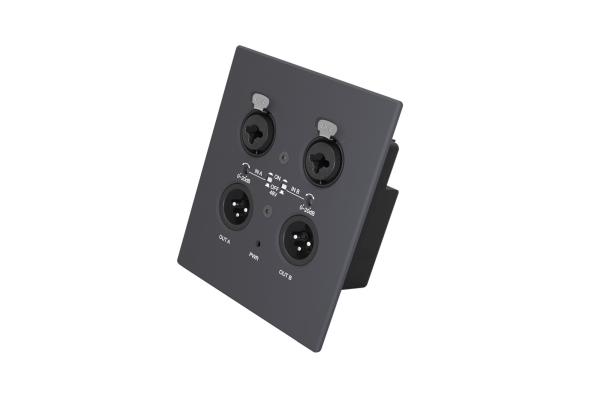

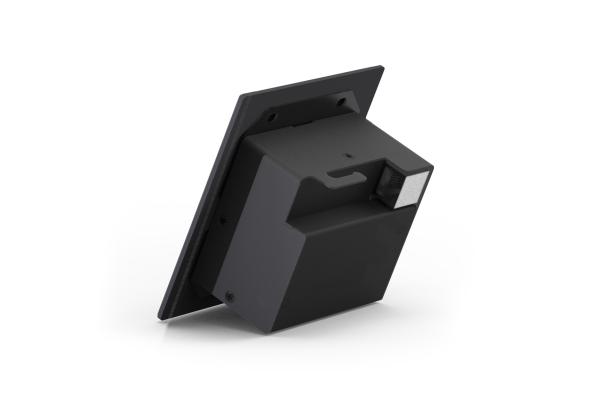

This is our 2CH Dante Walll Plate DP22: - This product provides a signal connection between analog input and output and Dante channel, requiring PoE network power supply
- DP22 supports two sets of balanced I/O analog signals to connect to Dante system through local area network. The input interface use a two-in-one XLR to provide phantom power switch and gain adjustment function of input signal. The output interface is standard 3 Pin XLR , output balanced analog signal.
 |
Main Features:
- Dante 2X2 wall panel for conversion between analog audio signal and Dante digital audio signal.
- This device supports 2-channel analog input and 2-channel analog output.
- This device supports 2 channels Dante input and 2 channels Dante output.
- This device supports conversion of analog input to Dante digital audio; Supports Dante digital audio to analog audio output.
- Each channel analog input, with phantom power supply switch, gain manual adjustment knob.
- POE mode power supply, compatible with 802.3af, 802.3at standard POE switches.
- Front panel independent power indicator
Specification:
Product Model No. | DP22 | Analog input channel | 2 | Analog output channel | 2 | Dante input channel | 2 | Dante output channel | 2 | Dante interface | 1 | Input gain amplification | Rotary gain knob (0 ~ 20dB) | Balanced/non-balanced, input/output support | √ | MICLINE, input/output support | √ | 48V phantom power switch | √ | Sampling rate | 48kHz | Phantom power | 48V | Frequency Response (20~20KHz) | 20Hz ~ 20K Hz,±0.5dB | THD+N | ≦0.005% @4dBu | Digital-analog dynamic range (A weighting) | 120dB | Analog - digital dynamic range (A weighting) | 114dB | Input impedance (balanced) | 20kΩ | Output impedance (balanced) | 100Ω | EIN(A weighting) | ≤-131 dBu | Channel isolation @1kHz | 100dB @1k Hz,4dBu | Simulated maximum gain | 20dB | Common-mode rejection | 80dB @80 Hz | Maximum input level | 18dBu | Maximum output level | 18dBu | Ground Noise | -90dBu | System delay | ≤3ms | Working Power Supply | PoE 48V | Operating temperature | '-10-50℃ | Size | 87*97*46mm | |
FAQ:
Question 1. Power indicator light out?
A: Check whether the POE switch is connected to the device;
B: Check whether the network connection line is normal; The way to check is to use this network cable to connect PC to the switch, whether Link light and data light flicker;
C: Equipment damage, contact customer service to get technical support;
Question 2. No signal after the microphone is connected.
A: Set the input route through the Dante Controller software.
B: Check the type of the microphone, if it is a capacitive microphone, please open the illusion power switch.
C: Improve the gain of the preamplifier circuit.
Question 3. No XLR output signal?
A:Check if the audio route has been sent to the corresponding channel through the Dante Controller software.
B: Check the normal work of the power amplifier and the horn
