Strong anti-interference Network Dante receiver IO16CH Dante audio Interface

Products Description:

This is our 16CH Dante Interface,DB series products are audio interface devices based on Dante international general protocol, which can input analog audio signals, convert them into digital audio signals, and route them to any Dante audio transmission network devices through Dante protocol, achieving features such as high quality, long distance, low delay, strong anti-interference ability, and convenient networking.

In addition, it supports access to any Dante network digital audio, conversion to analog audio signal output, and access to traditional analog audio devices such as mixing consoles, power amplifiers, and processors.The device adopts high quality AD/DA signal conversion chip, provides 48V phantom power supply, and can access higher quality capacitor mic

Specification:

Application:

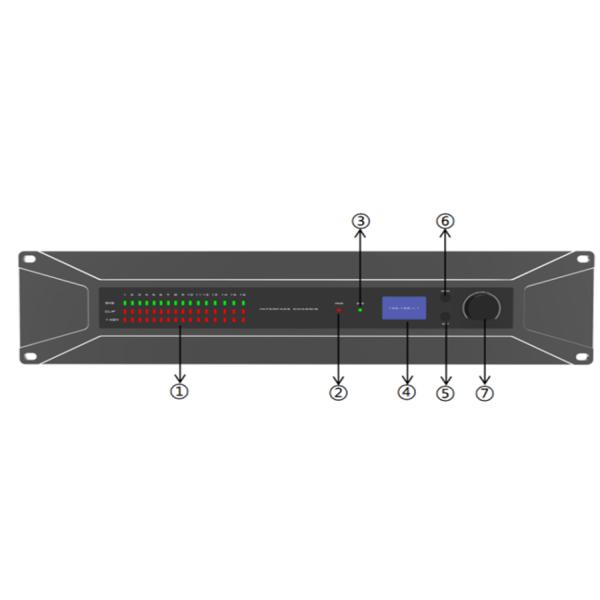

Products Front Panel Over View:

(1) Signal indicator, clipping indicator, phantom power supply indicator;

(2) Power indicator, the light indicates that the power supply is normal, otherwise the power supply is abnormal;

(3) Status indicator, blinking indicates that the equipment is running normally, otherwise the equipment fails;

(4) TFT screen: embedded GUI display;

(5) EDIT: Embedded GUI control, click to enter editing state;

(6) BACK: embedded GUI control, return to the upper menu button;

(7) Control button: embedded GUI control, function selection and parameter control button;

A) Left-right rotation: select functions, adjust parameters, double-click to save the scene;

B) Click to select the current function.

C) Left and right rotation on the basis of B) : parameter adjustment;

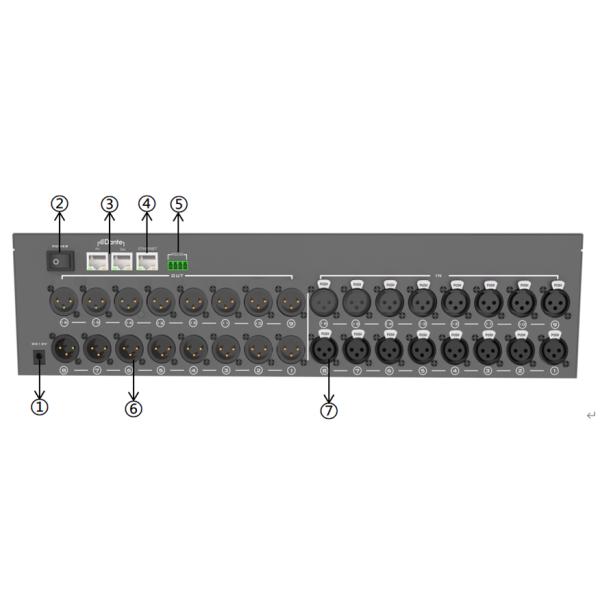

Products Back Panel Over View:

①12V DC power port

② Power switch

③Dante network interfaces

④ETHERNET: 10M/100M ETHERNET interface, used to connect the control end (PC, router, etc.);

⑤RS232: central control command interface RX: receive data,TX: send data,G: ground;

⑥ Input channel;

⑦ Output channel;
