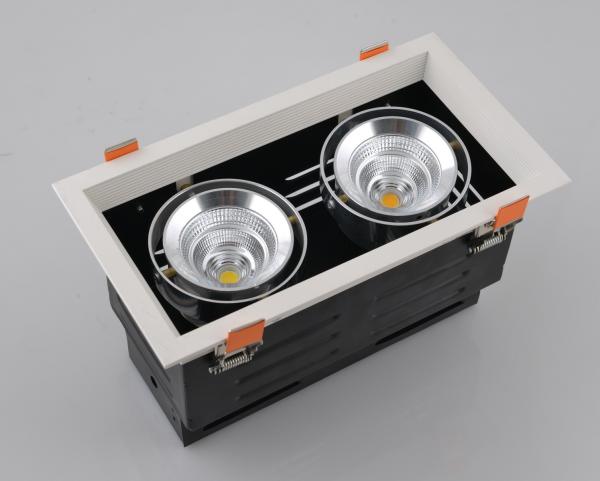

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light
2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light
Specifications
Place of Origin :
Zhongshan
Brand Name :
Jinsun
Certification :
CE,RoHS
Model Number :
G2010D 2*10W
Light Source Power: :
2*10W
Luminous Flux: :
1600LM
Color Temperature: :
3000K/4000K/5000K
CRI: :
>80Ra
Led Chip Quantity: :
2 Pcs
Bead Angle: :
24°/60°
Dimension： :
260*140*H144 mm
Cut Out Size： :
245*H125mm
Rotate The Lamp Holder: :
Can rotate 360 °
Material: :
6063 Aluminum
Single Gross Weight: :
1.48Kg
Total Gross Weight: :
13.2Kg
Qty/CTN： :
8 Pcs
MOQ :
1
Packaging Details :
Standard packing or as customer's requirement
Delivery Time :
10-20days
Payment Terms :
T/T(30% in advance), Western Union
Supply Ability :
40,000pcs/month
Description

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

Parameters:

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

Item No.:

G2010D 2*10W

Power:

2*10W

Beam angle

24º/60º

Led light source:

Citizen cob/Bridgelux cob

Luminous Flux:

1600LM

Housing:

6063 Aluminum

CCT:

3000K/4000K/5000K

CRI:

≥82

PF:

≥0.90

IP Rating:

IP40

Lifespan:

50000Hours

Warranty:

3 years

Non-dimmable and Dimmable for option,0/1~10V,DALI

Patented Heatsink No.:ZL201020180034.0

Wattage

Cutout Size/mm

Height/mm

Dimension/mm

Beam Angle

1*10W

￠125*125

144

￠140*140

24º/60º

1*15W

￠140*140

163

￠160*160

24º/60º

1*25W

￠170*170

173

￠190*190

24°/60°

1*40W

￠185*185

188

￠203*203

24°/60°

2*10W

￠245*125

144

￠260*140

24°/60°

2*15W

￠305*145

163

￠320*160

24°/60°

2*25W

￠355*170

173

￠375*190

24°/60°

2*40W

￠405*185

188

￠425*203

24°/60°

3*10W

￠360*125

144

￠372*140

24°/60°

3*15W

￠450*145

163

￠462*160

24°/60°

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

The Heatsink we instented on honeycomb radiator structure

structure

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

13 year experience in LED COB downlight engineer design our product.

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

*Jingsen led adopt Citizen. Bridgelux&Cree .and other world first class Led

manufacturer for strategic cooperation,become a very cost-effective and competitive commercial lighting brand

* Providing professional OEM and ODM services.

* About driver we adopt Xiezhen,Meanwell,Tridonic manufacturer as

cooperation.

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

The Test Report:Including Color Temperature ntegreting sphere,spectruem

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

Application View.

Our product Led cob down light suitable for High-end stores.chain stores,

luxury malls,shopping mall and other commercial establishment lighting.

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

Certificate

High lumen high quality Led cob down light . track light with CE,RoHS,

SAA certificate

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

Our Company View.

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

Our Company History

With many years experience in LED light , we believe we will not let you down.

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

Our Customer

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

Trade Terms.

1. Payment: T/T, Western Union.

2. Samples can be available within 6-8 working days

3. Shipping freight is quoted under your requests

4. Shipping port: Zhongshan/Shenzhen/Guangzhou, China mainland5. Di5. The discount are offered based on order quantities

2*10W 1600LM High Power Double Head Squre Shape Citizen COB LED Grille Light

As a very active manufactures, we develop new designs nearly every month,If you have interest in it, it’s my pleasure to offer news to you regular.

Wish establish businee relationship with you.

Contact.

Tracy Lee

Skype:jinsuncall

E-mail: sales16@jinsunled.com

Tel: +86-760-88461929

Fax: +86-760-88461939

http://www.jingsenled.com

http://www.dt-lights.com

http://joe-d-t.sell.everychina.com

If you are interested in our products, please send us enquiry to get the latest price.
