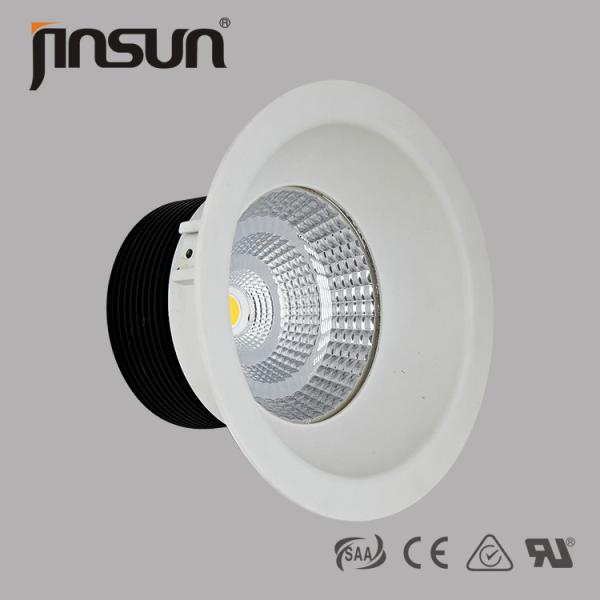

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight
30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight
Specifications
Place of Origin :
Zhongshan
Brand Name :
Jinsun
Certification :
SAA,CE,RoHs
Model Number :
D7230N
MOQ :
100pcs
Packaging Details :
Standard packing or as customer's requirement.
Delivery Time :
10-20days
Payment Terms :
T/T（30% in advance) Westurn Union,
Supply Ability :
40,0000pcs/month
Dimension :
dia160*H125mm
Cut size :
150mm
IP :
40
Warranty :
3 years
Light Source :
Citizen
Power :
30W
Beam angle: :
15º/25º/38º/60º
Luminous Flux: :
3000LM
Housing: :
6063 Aluminum
CCT: :
3000K/4000K/5000K
CRI: :
≥82
PF: :
≥0.90
IP Rating: :
IP40
Lifespan: :
50000Hours
Warranty: :
5years
Description

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

Product Feature.

1.Patented Honeycomb Heatsink

2.Citizen cob/Bridgelux cob/Cree cob

3.50000 hours lifespan50000

4.CRI>80+ PF>0.9

5.High quality 6063 lathe aluminum

6.Same cutout different watt for optional

7.Same watt different beam angle for optional

Parameters:

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

Item No.:

D7230N

Power:

30W

Beam angle:

15º/25º/38º/60º

Led light source:

Citizen cob/Bridgelux cob

Luminous Flux:

3000LM

Housing:

6063 Aluminum

CCT:

3000K/4000K/5000K

CRI:

≥82

PF:

≥0.90

IP Rating:

IP40

Lifespan:

50000Hours

Warranty:

3years

Dimmable and non-dimmable for option,0/1~10V,DALI

Global Patented Heatsink No.:ZL201310030769.3

Wattage

Cutout Size/mm

Height/mm

Surface Size/mm

Beam Angle

3W

￠80

65

￠90

15º/25º/38º/60º

5W

￠80

75

￠90

15º/25º/38º/60º

7W

￠80

75

￠90

15º/25º/38º/60º

10W

￠80

95

￠90

15º/25º/38º/60º

15W

￠80

115

￠90

15º/25º/38º/60º

20W

￠125

100

￠138

15°/24°/40°

20W

￠150

100

￠160

15°/24°/40°

30W

￠125

125

￠138

15°/24°/40°

30W

￠150

110

￠160

15°/24°/40°

30W

￠170

110

￠190

20°/40°/60°

40W

￠150

125

￠160

15°/24°/40°

40W

￠170

130

￠190

24°/36°

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

The Heatsink we instented on honeycomb radiator structure

structure

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

*Jingsen led adopt Citizen. Bridgelux&Cree .and other world first class Led manufacturer for strategic cooperation,become a very cost-effective and competitive commercial lighting brand. and provide professional OEM and ODM services.

* About driver we adopt Xiezhen,Meanwell,Tridonic manufacturer as cooperation.

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

The Test Report:Including Color Temperature ntegreting sphere,spectruem

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

Application View.

Our product Led cob down light suitable for High-end stores.chain stores,luxury malls,shopping mall and other commercial establishment lighting.

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

Certificate

High lumen high quality Led cob down light . track light with CE,RoHS,SAA certificate

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

Our Company View.

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

Trade Terms.

1. Payment: T/T, Western Union.

2. Samples can be available within 6-8 working days

3. Shipping freight is quoted under your requests

4. Shipping port: Zhongshan/Shenzhen/Guangzhou, China mainland5. Di5. The discount are offered based on order quantities

30W high power 3000 Lumens Citizen chip cool white Led Cob downlight with UL led downlight

As a very active manufactures, we develop new designs nearly every month,If you have interest in it, it’s my pleasure to offer news to you regular.

Hopinng cooperate with you well.

Contact.

Sarah Wu

Skype:jinsun-sales

E-mail: sales21@jinsunled.com

Tel: +86-760-88461929

Fax: +86-760-88461939

http://www.jingsenled.com

http://www.dt-lights.com
