Model

DR-IPSEYE02L

Device Type

1.0 Megapixel CMOS Sensor

Size

1/4”

Day & Night

Yes

Color

0.5lux(IR ON)

IR Cut

Support

Filter

IR-CUT Filter

IR Led

Yes, 2pcs array LED

IR Distance

15M

Lens

Lens

3.6MM

IRIS

Fixed Aperture F1.2

Viewing Angle

Pan: 355°/ Tilt: 90°

Video

Compression

H.264

Resolution & Frame

Main Flow: 1280*720@30fps
Minor Flow: 640*360@30fps

Code Stream

Support Dual Stream

Code Rate

32-4096kbps

Bit Rate Type

CBR & VBR

SNR

Above 50DB

Image Enhancement

Automatic White Balance, Backlight Compensation, Luminance, Contrast, Color Adjustment

Video Cover

4 Region can be set up

Superposition of Words

User Defined

Flip Config

Up/Down, Left-right-flip

Alarm

Audio

Two-way-audio

Device

Built-in Mic External Output Device

Audio In/ Out

1 CH

Audio Compression

G.711/G.726

Alarm In/ Out

1CH

Alarm Way

Motion Detection

Alarm Procession

The central control monitor, Got to PTZ preset pos, Send E-mail, Log Record, SD Card storage, etc.

Network

Protocol & Service

TCP, UDP, IP, HTTP, SMTP, DHCP, DNS, DDNS, ARP, ICMP, SMTP, POP3, NTP, RTP, RTCP, Pelco-D

Ethernet Port

Ethernet (10/100 Base-T), RJ-45 connector

Security

IP Address Filter, User Password Protection, User Access Log

Software

WEB Browser

Microsoft Internet Explorer 6.0 or above, google, firefox, etc.

Software Management

Multi-channel Network Surveillance System ONVIF Compatibility

Intelligent Software Function

Motion Detect,Miss Object Detection, Suspicious Detection, Moving Object Tracking, Guard Line Detection, etc.

Event Action

Video Capture Saved to Backing Device, Send Email, Send SMS, Zoom in alarm, Pop ap map, Go to PTZ preset pos etc

Mobile Client

Iphone, Android

Remote Access

DDNS, software, P2P

General

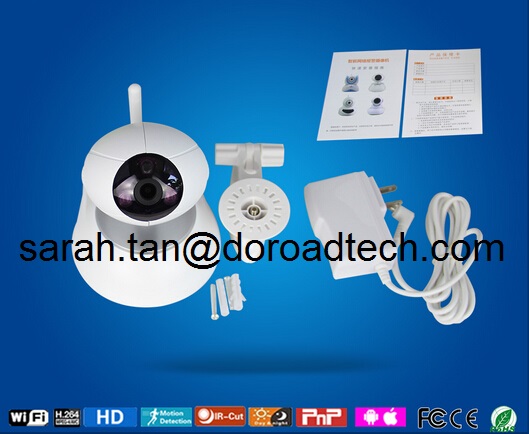

Accessories

Power adapter, Network Cable, Stand, User Manual, Disk, Screw Bag

Power Consumption

DC 5V/2A

Operation Temperature

-10°C——60°C

Operation Humidity

10%-80%

Weight

0.5KG

Dimensions

103(L)*75(W)*125(H)mm

Certification

CE, FCC
