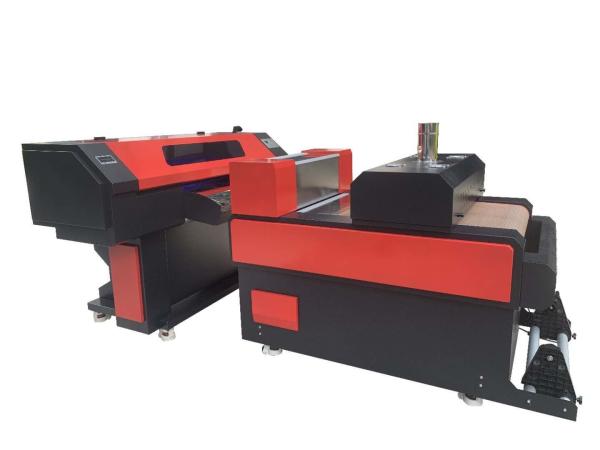

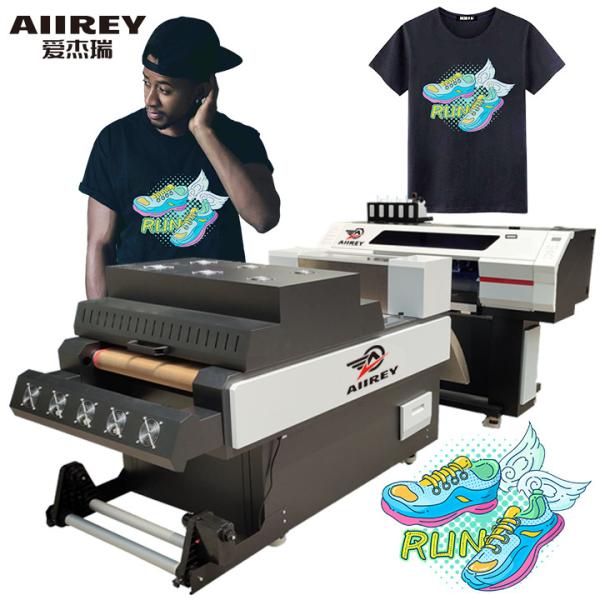

CMYK W Color DTF Printing Machine 60cm Direct To Film Printer
CMYK W Color DTF Printing Machine 60cm Direct To Film Printer
CMYK W Color DTF Printing Machine 60cm Direct To Film Printer
CMYK W Color DTF Printing Machine 60cm Direct To Film Printer
Specifications
Brand Name :
aiifar
Model Number :
WP-60-01
Certification :
CE
Place of Origin :
china
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10set week
Delivery Time :
60 days
Packaging Details :
Wooden packing
Warranty of core components :
3 years
Color :
CMYK,W
Machine type :
Multifunctional Heat Transfer Printer
Showroom Location :
China
Function of Roll to Roll :
Paper tension
Print Dimension :
600mm 60cm
Description

CMYK W Color DTF Printing Machine 60cm Direct To Film Printer

60cm Direct To Film Printer 3200 For Dtf Printing

Product Description

AIIREY Printer

WP-60-01

Nozzle Type

2 original Epson I3200-A1

Printing Speed

High speed mode 15m²/hour HD mode 10m²/hour

Color Mode

CMYK+W

Print Format

600mm

Media Transfer

Damping paper/tension paper

Heating Equipment

Front, middle and back three-stage heating

Power Supply

110V/220V 50-60Hz

Power

1.5kw

Working Environment

Temperature 20-28℃ Humidity 50-70ph

Ink road system

Automatic ink supply, white ink circulating and stirring

Weight

165KG

Package Dimensions

203*100*134cm

Shake powder machine

Power

≈5KW

Shaking Powder

Motor vibration, automatic powder return-free

Heating Method

Back baking and front baking Fast constant temperature heating

Take-up and Feed Film

Auto-sensing

Operation Mode

Manual control/Auto control

Mesh Belt

Drum suction operation mesh belt

Automatic Deceleration of Film Cutting

Prevent deformation of heating film

Method of Dusting

Constant weight automatic sensing

Weight

160KG

Package Dimensions

203*113*120cm

TOTAL PRINTER WITH SHAKE MACHINE

Cover Area

1.8*3.5m

When the DTF print roll is complete, cut it as needed and press it against the T-shirt (or other garment). Screen printing systems may require three operators to set up and manage large-scale automated screen printing.

This will be five complete channels of garment assembly. Each operator focuses on the assembly of individual orders and the placement of transfers for that particular order. Proceed to the next order without waiting for one order to complete.

Workflows are more flexible and extensible. In urgent work situations, unskilled workers can also be reassigned to additional overflow heat presses to maximize the critical path to completion.


1. Solving the picky problem of direct-injection printing fabrics, not limited to fabric transfer.
2. Don't worry about color deviation and fastness issues.
3. No stroke, no cutting and waste discharge, one-key dot function.
4. Short cycle and quick delivery time, breaking through the limitation of traditional process color-making plate making, digital output quick plate making, no need to wait for production, one piece of printing can be started at any operation.
5. High cost-effective, without high invest funds of equipment and site , you can have an office and home-style clothing heat transfer factory.

How to make DTF printing softer?
Whatever your design, the best way to generate softer heat transfer is to use special thermal stripping or thermal decomposition heat transfer. Unlike the more common cold peel transfer, a hot split transfer is applied and then peeled off immediately, while the transfer is still hot
