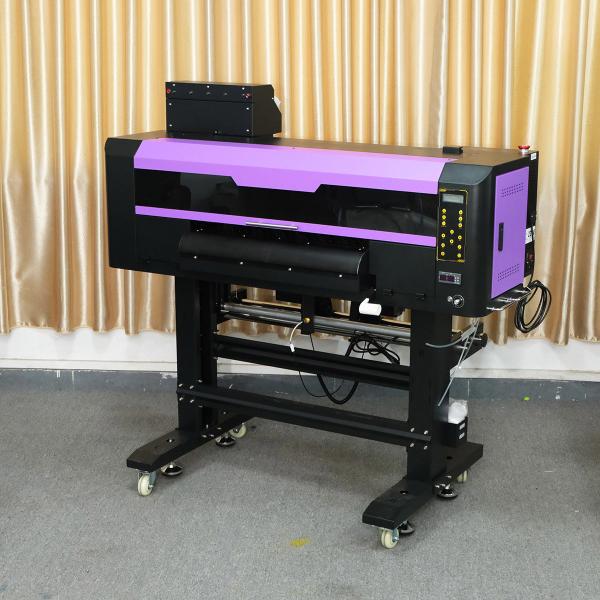

PH602 Features:
1. 2 EPSON i3200-A1*2 print heads
2. Support CMYK+white printing
3. Roll-to-roll 60cm printing width
4. Durable Hoson board
5. Ink shortage alarm
6. White ink circulation stirring
7. Automatic vacuum suction table
8. Front and rear preheating plates

Function configuration description:
1. The print head model is equipped with 2 EPSON i3200-A1*2 or EPSON i1600-A1*2
2. RIP The software comes standard with RIIN software (other RIP software can be selected separately if needed);
3. The maximum printing width is ≤60cm;
4. HIWIN silent guide rail is standard;
5. Temperature controller is standard to control heating;
6. Front and rear manual lifting rods are standard (no electric lifting rod function);
7. Non-powered paper feeding method is standard (automatic paper feeding method can be selected separately);
8. There is no automatic moisturizing function as standard (optional if needed);
9. Paper shortage alarm function is standard;
10. Main ink bottle shortage alarm function is standard;
11. Anti-collision function on both sides of the trolley is standard;
12. White ink circulation function is standard (printer mainboard controls circulation);
13. There is no computer stand as standard (optional if needed);
14. There is no waste ink alarm function as standard (optional if needed);

FAQ:

1,Q:How thick is the PET film that your machine can print?

A:The thickness cannot be too thick, only 0.5 thickness (0.08mm) is supported

2,Q:How to repair if the machine breaks down?

A:We have a one-year warranty, and we support online video technical support

3,Q:I would like to know if there are any suggestions on keeping the design prints so that they can be printed on this machine? File type, size, resolution

A:The file is similar to Montech, the size is 360*1800, the resolution is 6pass720*1800 or 8 pass 720*2400

4,Q:Three-phase or single-phase power supply

A:Single-phase power supply 220V

5,Q:We use PES powder and PU powder. I think it is not easy to change the powder, right?

A:It is not troublesome, just clean the powder and replace it with another kind of powder.

Uses of DTF Printers:

DTF printers can be used to print designs on a variety of materials, including textiles such as T-shirts, hoodies, bags, jeans, hats, etc. Direct to film printers can produce high-quality prints with multiple colors, gradients, and photographic images. In addition, DTF printing is a relatively fast and cost-effective printing method suitable for small and medium-sized businesses or on-demand printing services.

[Direct To Film] DTF Printer:

DTF printing is direct film printing, which involves printing patterns onto special transfer films and then applying them to textiles. This process allows for high-quality printing on a variety of fabrics, including cotton, polyester, and blends. The key components of DTF printing include a DTF printer, DTF ink, DTF paper, and a heat press. DTF Printer: A machine that prints a pattern onto a transfer film. DTF Ink: A specially formulated ink that adheres to a transfer film and then to the fabric. DTF Paper: A transfer film that receives the printed pattern and then releases it onto the fabric. Heat Press: A machine that uses heat and pressure to transfer the pattern from the film to the textile.
