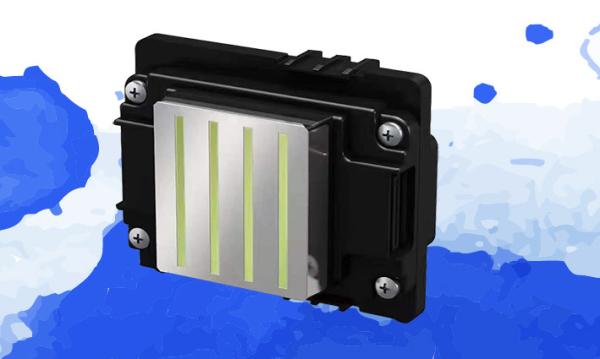

I3200-U1 Printer Accessories Epson Precision Core MEMS Nozzle
I3200-U1 Printer Accessories Epson Precision Core MEMS Nozzle
I3200-U1 Printer Accessories Epson Precision Core MEMS Nozzle
I3200-U1 Printer Accessories Epson Precision Core MEMS Nozzle
Specifications
Brand Name :
PRINTINGPLUS
Model Number :
EPSON-I3200 U1
Certification :
FCC、CCC、CE
Place of Origin :
CHINA
MOQ :
One unit
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
200 units per month
Delivery Time :
7-15 working days
Packaging Details :
Wooden case / flight case
Product name :
I3200-U1
Ink type :
UV Ink
Weight :
82 G
Number of nozzle rows :
8
Nozzle number :
3200
Resolution :
300npi / 1 column
Description

Epson PrecisionCore MEMS Nozzle Printer Accessories

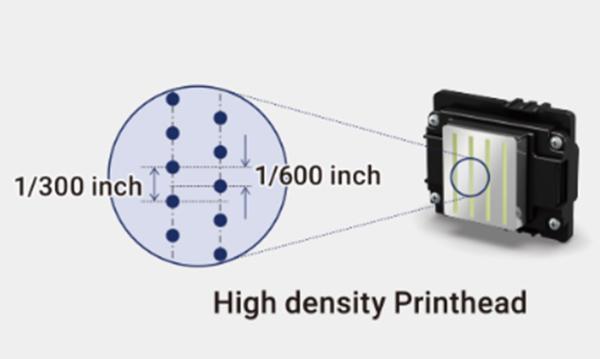

  • Distance between nozzles(inch)
 1/300 (Same column)
  • Number of nozzle rows
 Eight
  • A maximum number of ink colors can be supported
 Four
Resolution 300npi / 1 column
600npi/2 column
  • Effective print width
 33.8 mm
  • Droplet injection performance (droplet volume and injection frequency)
  • Level 2 gray scale
 5 pl(43.2kHz)
  • Level 3 gray scale
 6,12.5 pl(21.6kHz)
  • Level 4 gray scale
 3.8,6.2,9.3 pl(21.6kHz)
  • Corresponding ink viscosity
 5-7 mPa·s

PrecisionCore

  • The ALL MEMS (micro-electromechanical System) manufacturing process and the use of thin film piezoelectric elements enable the high-precision nozzle arrangement (600npi/2 rows), which makes the print head compact, fast, high quality and durable. Epson's unique MEMS technology creates precision nozzles and ink paths that allow the jetted ink droplets to be close to a perfect circle and accurately positioned.

Support for grey-scale

  • Epson's unique VSDT (Variable Drop Technology) allows you to freely control the size of the droplets sprayed, resulting in less graininess, more detail, smooth color transitions, and high saturation.

High resolution

  • High resolution (600dpi/ color) for up to 4 color outputs.

High durability

  • The PrecisionCore print head has excellent durability due to its high precision machining technology. It has been optimized for use in numerous commercial and industrial printing fields for high-speed output and high-quality printing.

I3200-U1 print head life information

►Piezoelectric body drive durability

106 billion times after piezoelectric durability, normal use.

►Pressure durability at 40KPa pressure cleaning, repeated 1500 times, print head without ink leakage, normal use.

Ink compatibility ·

►Printhead design: Optimized and upgraded printhead ink path component material and adhesive design to provide wider ink compatibility. ·

Ink compatibility testing: For ink partners, we assist in ink compatibility self-testing, and also provide compatibility testing services to optimize the compatibility of partner inks and printheads.
