Specifications
Brand Name :
SANROCK
Model Number :
SRUP4S
Certification :
CE ISO 9001:2015
Place of Origin :
Zhejiang, China
MOQ :
1Set/Sets per Month
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300Set/Sets per Month
Delivery Time :
15-30days
Packaging Details :
Nude package for machines, Wooden box package for spare parts, Or customer demand.
Product name :
Jumbo drilling rig
Name :
Underground Jumbo Drilling Rig
Application :
Tunnel,Blasting hole drilling,Mining Project,Construction works
Feature :
High Drilling Efficiency,Hydraulic Controlling
Engine :
Weichai
Power :
62.5KW
Drilling Diameter :
64-89mm
Drilling Depth :
40m
Feed Propulsion Force :
15KN
Feed Total Length :
3446/3751mm
Rock Drill Rotation Speed :
0-135/0-215rpm
Propelling Compensation :
1200mm
Rock Drill Impact Rate :
73/44Hz
Traveling speed :
14Km/h
Feed roll-over :
360°
Boom up/down :
20°/ -60°
Dimension(L*W*H) :
9350*2409*3018mm
Weight :
17600KG
Description

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

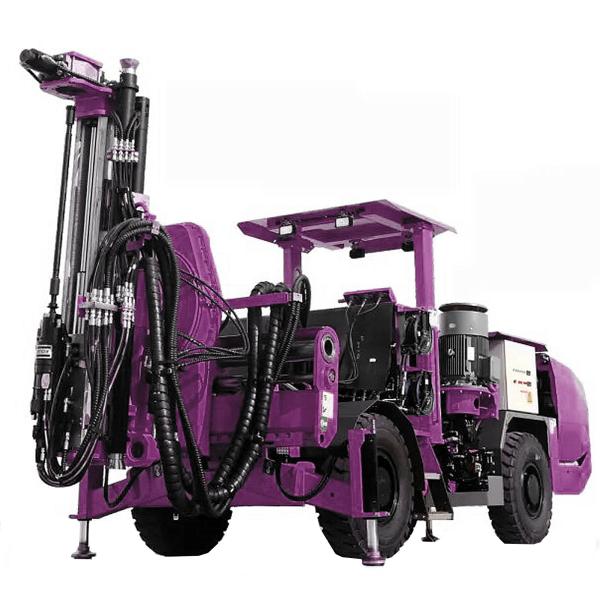

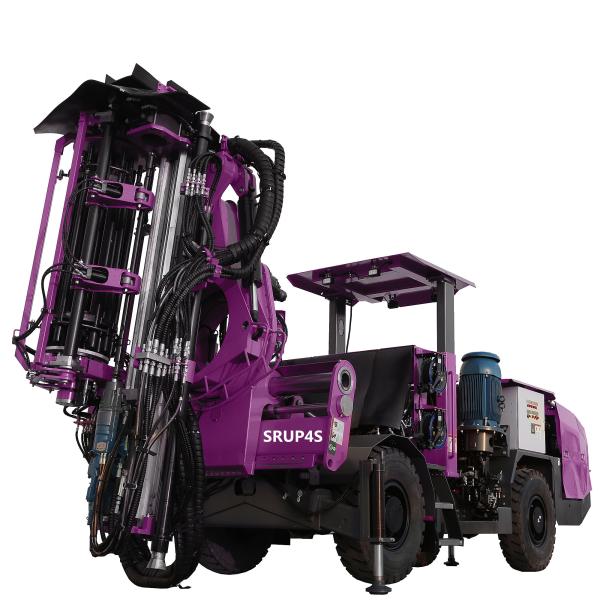

SRUP4S production drilling rig is developed for long hole mining. I tcan drill holes with diameter from 64mm to 89mm and maximum 41m deep. The suitable cross-sections(width x height) is from minimum 3.8 x 3.8m to maximun 5.3m x 5.3m.

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling RigHydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

Advanced control system:
Drill rod angle indicator on the operation panel shows small deviation of the rod positioning. It guarantees the long hole drilling quality. The automatic rod anti-jamming and return system can protect rock drill and drill tools.

Rod handling system:
Rod handling system can extend and remove the rods automatically. The rods handler capacity is 21+1pcs. The rod handling system relieves operators from heavy lifting work and is therefor an essential feature of maintaning high productivity.

Flexible boom design:
The positioning unit of the boom can do 360°dring drilling and parallel drilling within the width of 3m.

Rock drill:
International brand high-power rock drills can provide a variety of rock drilling solutions according to the surrounding rock conditions and rock drilling needs.The standard configuration is 18KW,and the optional 22KW or 25KW is available.

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

Products Description

Parameter Model
SRUP4S
Rock Drill
Working Area(W×H)(m)
Min.3.8×3.8-Max.5.3×5.3
Model
A22D/L
A25L
Hole Diameter(mm)
33-76
76-115
Max.Impact Power(Kw)
22
25
Impact Rate(Hz)
73
44
System Pressure(Bar)
250
230
Rotation Speed(rpm)
0-215
0-135
Max.Rotation Torque(Nm)
1000
1550
Note
Other models are available
Feed
Model
TF18-5A
TF18-6A
Total Length(mm)
3446
3751
Drilling Rod Length(mm)
1525
1830
Propulsion Force(KN)
15
Rod Handler Capacity
(optional)
21＋1
Hole Depth(mm)
34.5
41.5
Hole Diameter(mm)
64-89
Boom
And Positioning
Propelling Compensation(mm)
1200
Feed roll-over
360°
Boom up/down
20°/ -60°
Swing Boom Parallel
Moving Stroke
1500mm
Stinger Backward Stroke
2000mm
Stinger Forward Stroke
1150mm
Hydraulic
System
Max.Pressure(Bar)
230
Hydraulic Oil Tank Volume(L)
165
Filtration Accuracy(µm)
lO
Air
Compressor System
Motor Power(KW)
5.5
Max.Displacement(L/S)
11.6
Working Pressure(Bar)
8
Water
System
Motor Power(KW)
3
Max.Flow(L/min)
80
Max.Working Pressure(Bar)
25
Electrical
System
Total Installed Power(KW)
83.5
Main Motor Power(KW)
75
Voltage(V)
380
Cable(m)
100
Chassis
Engine
Weichai 62.5KW
Articulated Steering Angle
±38°
Fuel Tank Capacity(L)
60
Traveling Speed(Km/h)
14
Dimensions
L×W×H(mm)
9074(9350)*2409*2318(3018)
Clearance(mm)
346
Weight(Kg)
17600

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig
Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling RigHydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling RigHydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

Company Profile

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

Hydraulic Jumbo Drilling Rig Equipment Underground Tunneling Blast hole Drilling Rig

1.What can you buy from us?

DTH drilling rig,core drilling rig,reverse circulation drilling rig ,highway pile driver,solar pile driver ,

anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.

2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.

3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping.

Shipping efficiency depends on country and city you want to ship to.

For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.

4.How is your quality control?

A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
