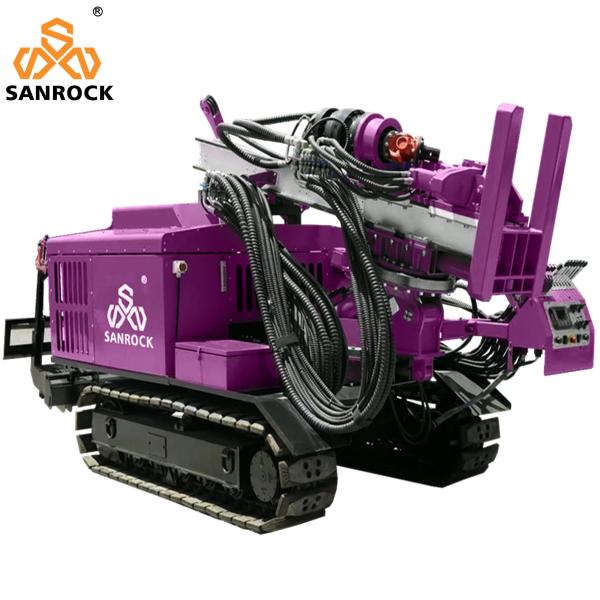

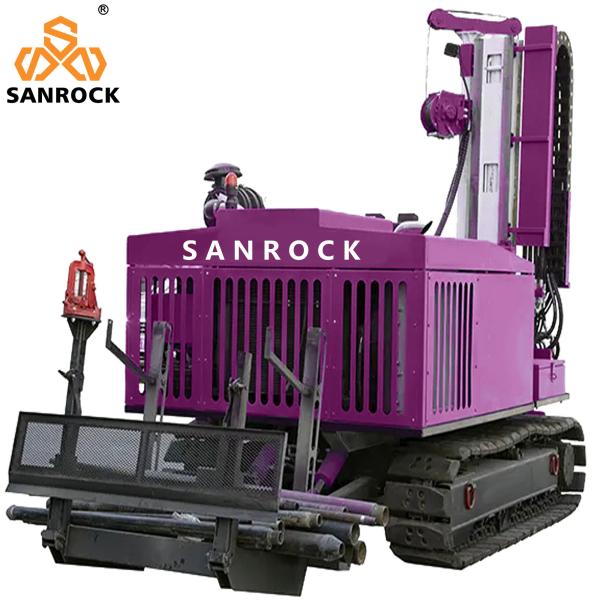

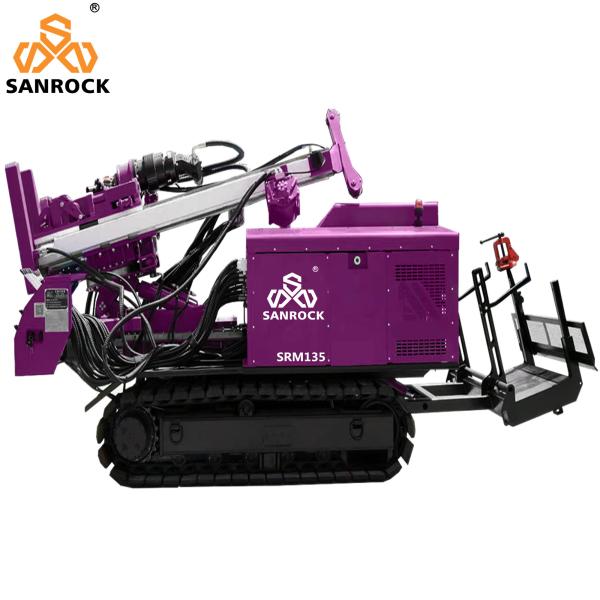

Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Crawler Environmental Sampling Drilling Rig Hydraulic Borehole Geotechnical Drilling Rig
Specifications
Place of Origin :
Zhejiang, China
Brand Name :
SANROCK
Certification :
CE ISO 9001:2015
Supply Ability :
5000Set/Sets per Month
Packaging Details :
Nude package for machines, Wooden box package for spare parts, Or customer demand.
MOQ :
1 Set/Sets
Price :
negotiable
Model Number :
SRM135
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
15-25days
Product name :
hydraulic core drilling rig
Type :
Core Drilling Rig
Name :
core drilling rig
Feature :
High Drilling Efficiency,Wireless remote control
Power Type :
Diesel
Power(w) :
93KW
Drilling depth :
180m
Drilling diameter :
150-250mm
Impact Frequency :
2100b/min
Impact Power :
480N.m
Torque of Impact Power Head :
900N.m
Application :
coring machine,Gelogical Prospecting
Usage :
Coal,water well.core sample
After-sales service provided :
Video technical support
Dimension(l*w*h) :
4200*1850*2400mm
Description

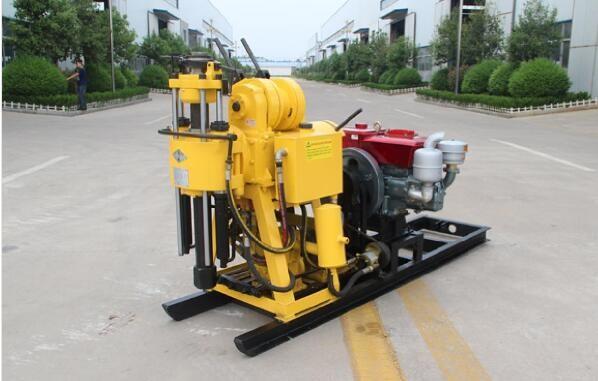

Diesel Power Core Portable Hydraulic Water Well Drilling Rig 130m 180m 200m

Product Specification

Machine Parameter
Drilling depth 30--180m
Drill rod caliber 50 42mm
End hole caliber 75 46mm
Max. open hloe caliber 220mm
Drilling angle 90°~75°
Drill weight (No include power) 610kg
Unity machine dimensions 2.1×0.9×1.3m
Spindle
spindle speed 130, 300, 480, 730, 830, 1045r/min
Spindle stroke 450mm
Hoist
Max.single line hoisting capacity 1600kg
Single line lifting speed 1.06, 0.67, 0.32m/s
Wirerope caliber 13mm
Wirerope cubic measure 35m
Hug floodgate caliber 254mm
Hug folldgate belt width 50mm
Distance between drill and hole 230mm
Mud pump
Type Horizontal single urn twin-action
Displacement 170L/min
Maximum pressure 1.5Mpa
Work pressure 0.7Mpa
Power
Diesle engine S1105 18HP
Electric motor Y160M—4 15KW
