Integrated drilling equipment hydraulic rotary borehole mining crawler DTH drilling rig

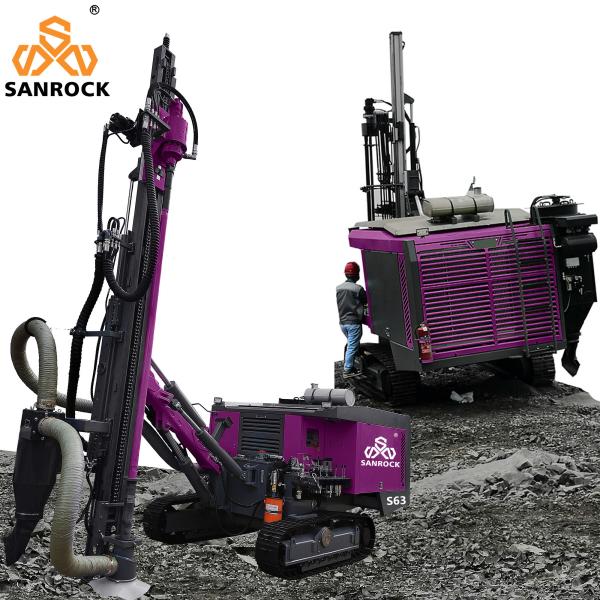

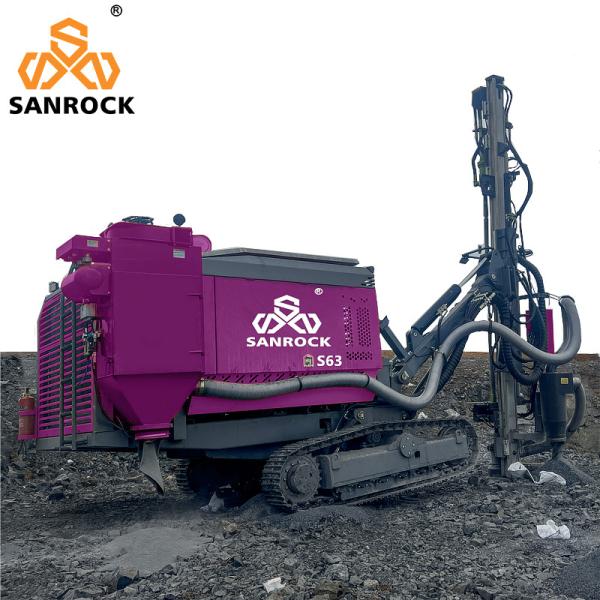

S63 mining crawler DTH drilling rig is characterized by excellent integrity and compact design structure. Optional installation of automatic rod change,configuration dry dust collectors environmental protection.
High degree of automation, efficient drilling, simple operation, flexible maneuverability,single operator for labor cost.
Sanrock automatic drilling rig with rod changing system, powerful feeding and rotation design for less jamming in complex rock situation,hefficient High efficiency drilling speed.
Can easily cope with all kinds of drilling angel requirement of landscapes.
The advantageous functions such as precise boom positioning,automatic rod handling.

At urban construction project, surface mining, quarries ,construction work sites,foundation pit construction, road slope protection project etc.

Product Description

Product name	Integrated Drilling Equipment
Type	Rotary Drilling Rig
Power Type	Diesel
Engine	Cummins 194KW(Ⅲ)
Application	Drilling Rock Drilling Mining Quarry,blasting hole drilling,Construction Works
Dimension(L*W*H)	6000X2300X2600 mm
Weight	8850KG
Key Selling Points	High efficiency, high production capacity,Competitive Price
Drilling Diameter	115-150mm
Drilling Depth	Max.30m
Drilling hardness	f=6~20
Volune of diesel oil tank	280 L
Method of dust collecting	14 Core Dry type
Compressor F.A.D	540 CFM
Compressor pressure PSI	17bar
Air end	Two stage compression
Feed stroke	3690mm
Maximun push-pull force	20kn
Compensation length	900mm
Lifting force	25 kn
Method of Feed	motor+roller chain
Travelling speed	1.5~4 km/h
Climbing capacity	30°
Ground clearance	360 mm
Drilling rod	6+1, φ 76mmX3000/2000mm
DTH hammer	3"/4"/5''
Working Pressure	1.8 Mpa
Air consumption	16 m3/min
Rotary torque (Max.)	3300 N. m
Rotary speed	0-120 r/min

1.What can you buy from us?
Tunneling Jumbo drilling rig ,DTH drilling rig,Automatic drilling rig with rod changing system,rotary drilling rig,pile driver machine, core drilling rig ,water well drilling rig,truck mounted water well drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,Tricone bit ,eccentric casing system,DTH hammer,drill rod,spare parts etc.

2.How can I make payment?
A: You can pay directly online on Alibaba with credit card, or TT, Western Union, LC etc.

3. How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT.You can also appoint shipping method you like before we ship.

4.How is your quality control?
A: We have our own experienced QC.There will be strict inspection and testing for every order before shipping out.

5.Do you have any certificate of authorization?
A: Our machinery is CE certified.
