Professional 5 Inch Reverse Circulation Hammer High Impact Frequency
Professional 5 Inch Reverse Circulation Hammer High Impact Frequency
Specifications
Brand Name :
Teamwhole
Model Number :
5inch RC hammer
Certification :
ISO9001
Place of Origin :
Hunan, China (Mainland)
MOQ :
5 Sets
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
In 7-15 days after your order confirmed
Packaging Details :
Inner package with cartons,outer package with wooden cases
color :
glod
Material :
alloy steel
Use :
Ore mining
Certificate: :
ISO9001:2008SONCAP
Description

Technical Parameters

Description Product Code Outside Dia. (mm) Length Without Bit (mm) Weight(kg)

Flat Wrench

(mm)

Rec. Hole Size

(mm)
TH126RC 248000 126 1273 67 94 140-160
Working Pressure (bar) 17Impact Frequency at 17 bar(Hz) Normal Axial Pressure(kN) Recommended Rotation Speed (r/min) Air Consumption (m³/min)
12-24 25 9.2 30-50 12bar 17bar 24bar
8.2 14.9 23.4
Main Specification------TH80RC, TH98RC, TH126RC, TH140RC, TH180RC, TH220RC

RC hammer:the exhaust air,and cuttings are discharge through the center return hole of the RC

hammer,and the exhaust air is not discharged into the ground,It creates excellent up-hole velocity,which ensure cuttings are quickly removed from the bit face providing an extremely clean hole and excellent life time on the bit.

1.Main specifications:

TH1162RC--- RE543

TH1214RC--- RE040

TH1261RC--- RE052

TH1305RC--- RE054

TH1307RC--- RE140

2.Application range: Geological exploration, ore mining.

3.Design Principles: To arrive at target depth exactly and improve the productive efficiency with low cost, durable using.

4.Outstanding advantages: High impact frequency, fast penetration rate, low air consumption, high crush function, low cost,precise rock sample.

5.Main specifications and parameters:
Hammer Bit range.mm Cylinder O.D Working pressure
TH1162 121-133 116mm 250-500
TH1214 127-137 121mm 250-500
TH1261 133-143 126mm 250-500
TH1305 137-146 130mm 250-500
TH1307 137-146 130mm 250-500

How to complete the whole deal

Step:

1. Firstly decide the design, material and color

2. Decide the size in accordance with client's requirement and our

recommendation

3. We will give the best offer.

4. Client's accept the offer and we send proforma invoice.

5. Client transfers 30%-50% deposit and production begins

6. After production, we will send ready products photo

7. After client's confirmation, we will arrange shipment, and send

copy shipping documents like B/L, commercial invoice and

packing list

8. Client transfer balance payment and we will send original

documents by DHL or EMS

Pictures

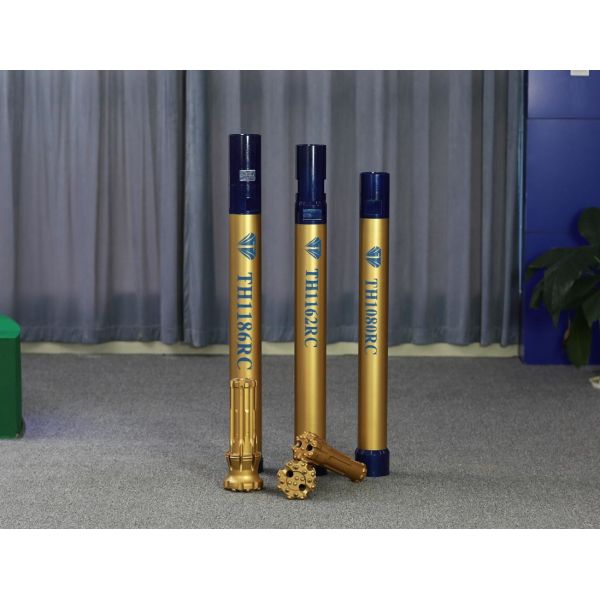

Professional 5 Inch Reverse Circulation Hammer High Impact FrequencyProfessional 5 Inch Reverse Circulation Hammer High Impact Frequency
