High Strength TG5 Down The Hole Hammer Durable High Nickel Steel Material
High Strength TG5 Down The Hole Hammer Durable High Nickel Steel Material
Specifications
Brand Name :
Teamwhole
Model Number :
TG5 DTH hammer
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T O/A WEST UNION
Supply Ability :
2000 Pcs Per Month
Delivery Time :
25-30days
Packaging Details :
Wooden Case
Material :
Alloy steel
Processing Type :
Forging
Use :
Foundation Drilling Equipment, Piling Rigs
Product Name :
TG5 DTH Hammer
Color :
Gold other color available
External Diameter :
127-178 MM
Connection :
76,89 MM drill rod.
Work Pressure :
1.7-2.5Mpa
Price :
Negotiation
Description

Gold TG5 DTH hammer of DTH drilling tools for waterwell drilling

Specification:

1. Item name: TG5 hammer

2. Thread: API 2 3/8" REG PIN Or API 3 1/2 "REG PIN.

3. Outer diameter: 120mm.

4. Working pressure: 14-24bar

5. Advantages: stable performance and high drilling rate

6. Service life: long

7. Weight: 80kg

Fetures:

1. Easy operation and maintenance

2. Easy disassemly.

3. Reliable quality, long service life.

4..Good flushing effect to ensure high drilling rate.

5. Strict quality warranty and compensation rules

6. Be certisfied by ISO9001:2008

Advanced material:

with high nickel steel, in features of high strength, heat resistance, and wearable.

Warranty:
The company responses for any quality problem caused by default of material.

Markets:

China, Chile, Brazil, Peru, Venezuela, Mexico, USA, Italy, France, Russia, Greece,Canada,Korea, South Africa, Nigeria, Korea, Israel, Malaysia, Mongolia and etc

Other details:

Price: FCA (China), FOB(China), CIF, CFR

Payment term: T/T

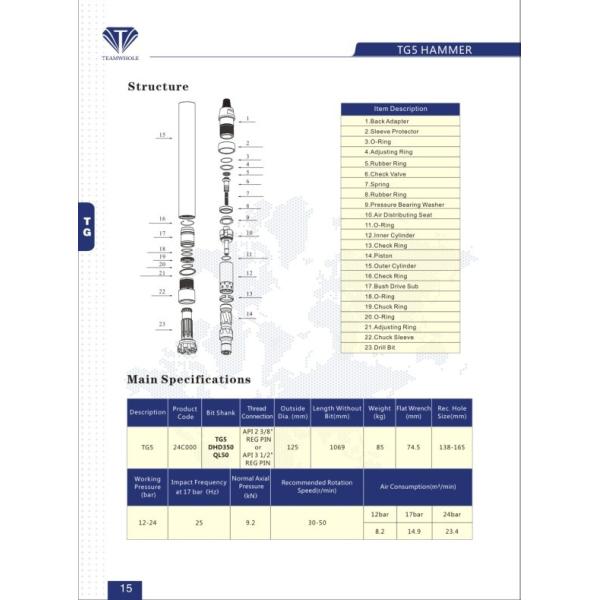

Technical Parameters:

High Strength TG5 Down The Hole Hammer Durable High Nickel Steel Material

ITERM DESCRIPTION
NO PART LIST
1 TOP SUB B1-SK05H-A10003-05 PRODUCT NAME DHD350
2 TOP SUB RING 90*3.55*3 PRODUCT CODE 05SK00
3 PRESSURE BEARING WAHSER 103.5*83.5*22.5 BIT TYPE D350WITH NO FOOT VALVE
4 CHECK VALVE 25LL15 THREAD CONNECTION API 2 3/8 REG
5 SRPING 110*26*3*9.5 WORKING PRESSURE (BAR) 12-24
6 RUBER RING 240030-C AIR CONSUMPTION 24BAR (M3/MIN) 19
7 AIR DISTRIBUTING SEAT 05SK20-C RECONMENDED ROTATION SPEED 30-50
8 INNER CYLINDER 05SK30-F OUTSIDE DIA (MM) 126
9 PISTON B1-SK05H-A1002-42 LENGTH WITH OUT BITS 893
10 OUTER CYLINDER 05SK40-N WEIGHT 55
11 BUSH DRIVE SUB B1-SK05H-A1002-45 NORMAL AXIAL PRESUURE (KN) 9.2
12 O RING 80*3.55 REC HOLE SIZE(MM) 138-165
13 BIT RETAINER RING B1-SK05H-A1002-50 FLAT WENCH(MM) 74.5
14 CHUCK SLEEVE B1-SK05H-A1002-58

High Strength TG5 Down The Hole Hammer Durable High Nickel Steel Material
