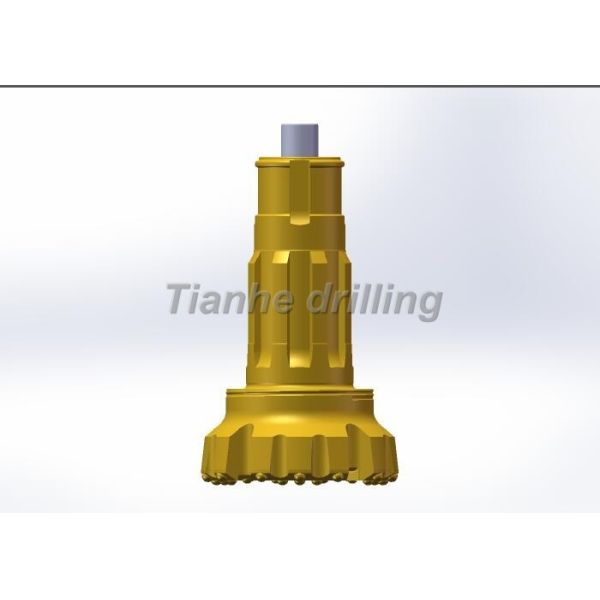

11 7/8 Shank Drill Bits For Water Well Drilling Steel Wash Resistant
11 7/8 Shank Drill Bits For Water Well Drilling Steel Wash Resistant
Specifications
Brand Name :
Teamwhole
Model Number :
11 7/8" Numa 120 Shank DTH bit SD12 , DHD112 , NUMA120 , NUMA125
Certification :
ISO9001:2008
Place of Origin :
Changsha,Hunan,China
MOQ :
1
Price :
Negotiation
Supply Ability :
5000pcs/month
Delivery Time :
Shipped in 25 days after payment
Packaging Details :
dth bits are packed by Woodens outer side, and Cartons inner side.
Model :
11 7/8" Numa 120 Shank
Material :
Alloy Steel
Processing type :
Forging
Carbides Shape :
Spherical, Ballistic, Parabolic and Conical
DTH BIT Colo :
Gold,Other Color Like Red , Blue , Black , Yellow Are available
Bit Shank :
SD12 , DHD112 , NUMA120 , NUMA125
Interchangeable brand :
Sandvik, Atlas Copco, Ingersoll-Rand, Halco, Bulroc etc.
Bit Diameter :
305mm to 445mm
Description

11 7/8" Shank DTH bit SD12 , DHD112 , NUMA120 , NUMA125 For Water Well and Foundation Drilling

1.General Introduction

Bit Face Shape Selection:

1. Drop Center Bit

----For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.

2. Concave Face

----The all-around application bit face specifically for medium hard and homogeneous rock formations. Good hole deviation control and good flushing capacity.

3. Convex Face

----For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce theload and wear on the gauge buttons, but poor hole deviation control.

4. Flat Face Bit

----This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.

Carbide Button Shape Selection:

1. Semi-Ballistic Buttons

2. Ballistic Button

3. Spherical Button

4. Two-step Button

Raw Material

Steel:

First class special alloy steel with high strength, heat resistance and wearable

Carbide
The best tungsten carbides from China are commonly applied.
Tungsten carbide from European is also available.

NUMA120-302MM.305MM,311MM,330MM,381MM,430MM with carbides 19mm,20mm,22mm

Can be drilled well in water well drilling,Foundation drilling,piling work etc.

Specification

1.Steel Carbide
2.12 years experience
3.Can match to the original bit shank
4.Atlas quality

Photds

11 7/8
