High Performance Symmetrix Overburden Drilling Systems O.D.168mm Long Life Span

Application Range:
It is recommended to drill in rock formation where contains some ovals and fracture.
Design Principles:
The stabel and reliable working performance and the less vibration of drill rig.
Different Structures:

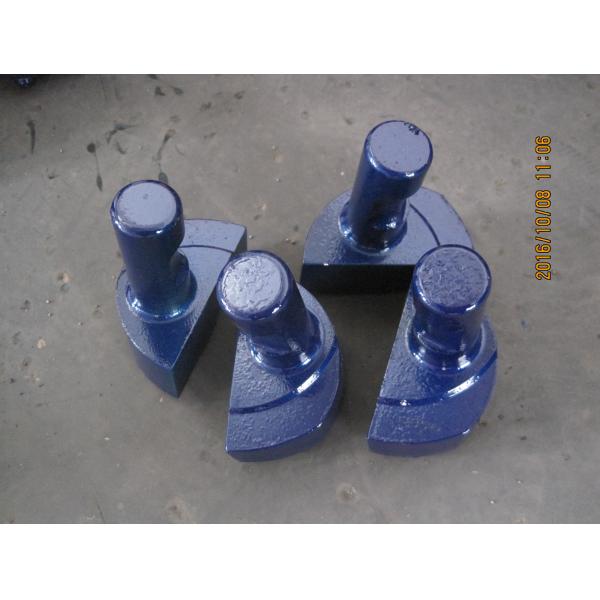

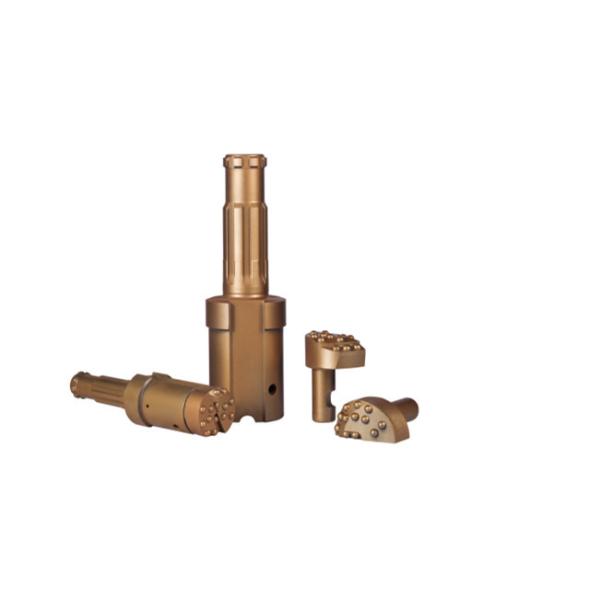

Concentric system with ring bits,with wings and with blocks.

Operation Procedure
1. when the drilling starts, the wings swing out, and reams to drive the casing shoes and tubes into the hole.
2. When finished the drilling in overburden rock formations, reverse the drilling tools and the wings will get closed, and the drilling tools can be raised from the hole.
3. Next construction can be followed.

Steel:
first class special alloy steel with high strength, heat resistance and wearable
Carbide
The best tungsten carbides from China are commonly applied.
Tungsten carbide from European is also available.

1)The material selection of the sub is better than casing tubes,and it was also processed by heat treatment,which ensure the stability
2)Casing shoe was processed by heat treatment,which extend the service life.

Our company response for any quality problem caused by material or machining defect.

It is suitable for drilling water wells,geothermal wells, short micropiles medium mini-type grouting hole of building, dam and harbor project.

Teamwhole offers the market most comprehensive range of DTH hammers. There are hammer solutions for water well drillers, miners and quarry drillers as well as for contractors in construction, oil and gas. Teamwhole's DTH hammers are available in holes sizes from 3.5 to 48 inches in diameter.
Teamwhole's flexible and stable ODEX system wins great reputation in users. Reliable quality,innovative design and professional service ensure the fulfill of many projects.
We even offer reverse circulating RC hammers for exploration. We are the earliest in China for RC since 2004. Now the RC hammer and bits are delivered to Australia,South Africa,Russia and Mongolia in large scales.
More than 30 experts supports the technology and enhance the development.
Offer the guide service for assembly and problem-analyse service during using.
